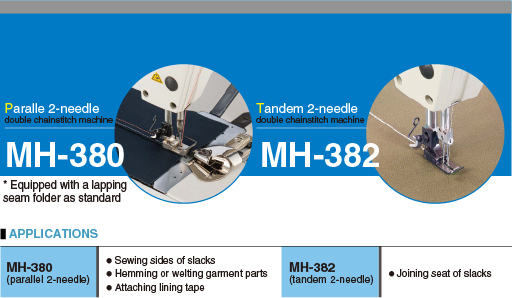

High-speed, Flat-bed, 2-needle Double Chainstitch Machine

Various gauge sets and attachments allow the machine to adapt to many different processes and specifications.

Product features

  • Compatible with various processes

    Accurate stitching performance and durable finished seams are particularly necessary in the chainstitching process.
    JUKI ensures high-quality sewing with a higher degree of consistency with its unique looper mechanism and consistent condensation stitching mechanism. Furthermore, highly efficient operation is achieved by using a chain-off thread cutting device (AT-8).

Basic performance

  • The machine ensures outstanding reliability and durability

    It comes with JUKI’s unique inclined crank type looper mechanism. This gives the machine outstanding durability.
    You can use the sewing machine for a long time without ever worrying about looper failure.

  • The machine is capable of performing consistent condensation stitching, ensuring finished seams of higher quality

    You can easily set the machine to perform condensation stitching by operating the lever.
    Condensation stitches that prevent the thread from fraying can be consistently sewn.

  • Stitch length can be adjusted with ease

    The machine incorporates a stitch dial for adjusting the stitch length. For lockstitch machines,which are the most popular type of sewing machines, the stitch length is also adjusted using a stitch dial.
    This means you can adjust the stitch length as desired without difficulty.

Specification

Model name MH-380 MH-382
Parallel 2-needle, double chainstitch machine Tandem 2-needle, double chainstitch machine
Max. sewing speed 6,000sti/min*
Max. stitch length 4mm
Lift of the presser foot By hand: 5.5mm, By knee: 10mm
Needle bar stroke 30mm
Needle (at the time of delivery) TV×7 (#14) #9~#21
Thread take-up Needle bar thread take-up
Stitch length adjustment By stitch dial (lockstitch)
Condensation stitches By lever for condensation stitching
Looper system Rocking type looper
Looper stroke 22.6mm
Lubrication Automatic
Lubricating oil JUKI New Defrix Oil No.1 (equivalent to ISO VG7)

*sti/min is the abbreviation for “stitches per minute”

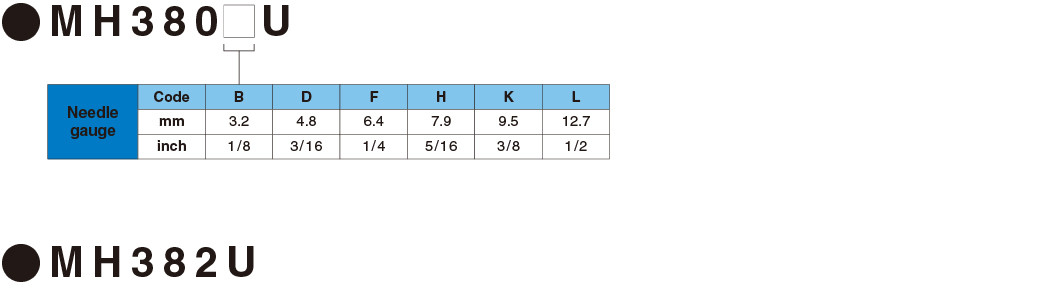

When you place orders

Gauge

MH-380

Guage THROAT PLATE NEEDLE CLAMP ASM. PRESSER FOOT ASM. FEED DOG MOVING NEEDLE GUARD RIGHT FIXED NEEDLE GUARD LEFT FIXED NEEDLE GUARD
Figure
Needle width P/N P/N P/N P/N P/N P/N P/N
Code inch mm
B 1/8 3.2 B1103380B00 B1406019BA0 B1509038BB0 B1613380B00 B2311380B00 B2315380000 B2312380000
C 5/32 4.0 B1103380C00 B1406019CA0 B1509038CB0 B1613380B00 B2311380B00 B2315380000 B2312380000
D 3/16 4.8 B1103380D00 B1406019DA0 B1509038DB0 B1613380D00 B2311380B00 B2315380000 B2312380000
E 7/32 5.6 B1103380E00 B1406019EA0 B1509038EB0 B1613380F00 B2311380E00 B2315380000 B2312380000
F 1/4 6.4 B1103380F00 B1406019FA0 B1509038FB0 B1613380F00 B2311380E00 B2315380000 B2312380000
H 5/16 7.9 B1103380H00 B1406038HA0 B1509038HB0 B1613380H00 B2311380H00 B2315380000 B2312380000
K 3/8 9.5 B1103380K00 B1406038KA0 B1509038KB0 B1613380K00 B2311380H00 B2315380000 B2312380000
L 1/2 12.7 B1103380L00 B1406038LA0 B1509038LBB B1613380L00 B2311380L00 B2315380000 B2312380000
Remarks - - With a needle cover - - - -



Guage RIGHT LOOPER LEFT LOOPER SLIDE PLATE ASM. CAM COVER (FRONT) FOLDER
(FOR MEDIUM-WEIGHT)
Figure
Needle width P/N P/N P/N P/N P/N
Code inch mm
B 1/8 3.2 B2031380000 B2030380000 B1104380AA0 B1108380BA0 B9126038BAB
C 5/32 4.0 B2031380000 B2030380000 B1104380AA0 B1108380BA0 B9126038CAB
D 3/16 4.8 B2031380000 B2030380000 B1104380AA0 B1108380BA0 B9126038DAB
E 7/32 5.6 B2031380000 B2030380000 B1104380AA0 B1108380BA0 B9126038EAB
F 1/4 6.4 B2031380000 B2030380000 B1104380AA0 B1108380BA0 B9126038FAB
H 5/16 7.9 B2031380000 B2030380000 B1104380AA0 B1108380HA0 B9126038HAB
K 3/8 9.5 B2031380000 B2030380000 B1104380AA0 B1108380HA0 -
L 1/2 12.7 B2031380000 B2030380000 B1104380LA0 B1108380LA0 -

MH-382

Guage THROAT PLATE NEEDLE CLAMP ASM. PRESSER FOOT ASM. FEED DOG MOVING NEEDLE GUARD FIXED NEEDLE GUARD
Figure
Needle width P/N P/N P/N P/N P/N P/N
Code inch mm
- - - B1103382000 D1406038BA0 B15243820B0 B1613382000 B2311382000 B2312382000
Remarks - - With a needle cover - - -



Guage RIGHT LOOPER LEFT LOOPER SLIDE PLATE ASM. CAM COVER (FRONT)
Figure
Needle width P/N P/N P/N P/N
Code inch mm
- - - B2031380000 B2030380000 B1104380A00 B1108380B00
