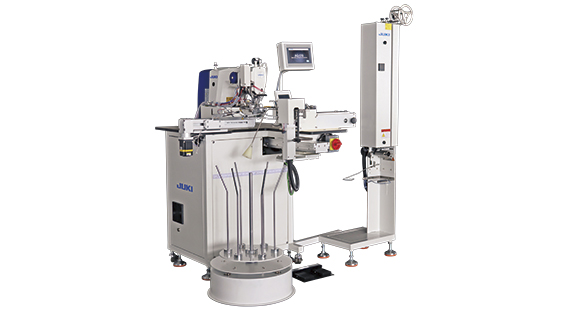

Automatic waist elastic jointing machine

The AG-110 is an automatic machine equipped with various functions to make sewing easier and more stable.
An automatic machine optimized for the ring processing of elastic waist braids for boxer shorts and briefs, equipped with various functions.

Product features

  • Various functions

    ●A recognition system identifies the exact location of the logo.
    ●A heat iron device prevents elastic braid shrinkage　to ensure a beautiful finish.
    ● A rotary stacker securely stacks the sewn items.



  • Improved productivity

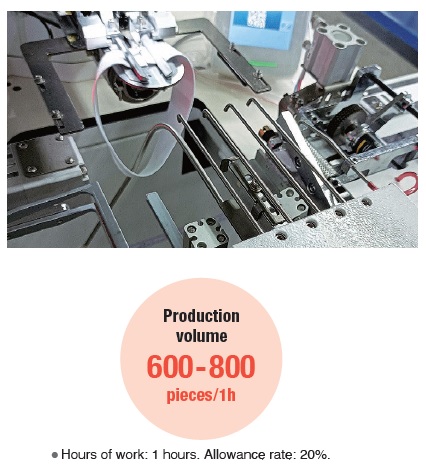

    The AG-110 can sew up to 600 to 800 L size rings (elastic waist length of 39 cm) per hour for a productivity.

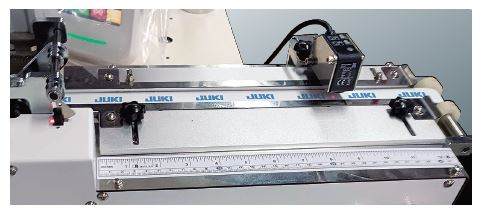

  • Color code recognition system

    The color code recognition system eliminates sewing errors by recognizing the logos on the elastic braids and identifying braids with missing logos.

  • Optical Fiber Protection Device

    An optical fiber protection device is equipped on the sewing machine head.
    If a processed elastic braid remains on the sewing table, the machine automatically stops and sounds an alarm to alert the operator.

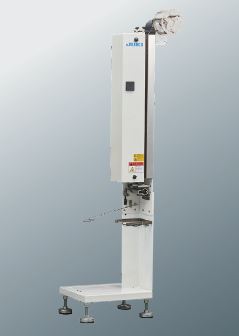

  • Heat iron

    The elastic braid can be heat-ironed before sewing to correct distortion, etc. and prevent shrinkage.

  • Rotary stacker (6 stations)

    The rotary stacker prevents errors in the stacking of ring-processed elastic waist braids and continuously stacks up to 600 pieces with 6 stations.

Specification

Model name AG-110
Sewing area 10mm (X) × 60mm (Y)
Maximum sewing speed 2,700sti/min*
Stitch length 0.1mm ~ 12.7mm (0.1mm step)
Sewing procedure Butted seam, Multi-layer stitching
Throat plate ø1.6
Hook Standard shuttle hook
Pedal 2 pedal
Stacker Auto: 6 station rotary stacker
Compressed air / Air consumption 0.5Mpa ~ / 28dm3/min
Iron temperature 120°~ 200°
Sewing machine motor AC servomotor 550W
Power requirement Single-phase 200V-240V
Weight 257Kg
Dimensions 1,700mm (W) × 1,100mm (L) × 1,700mm (H)

*"sti/min" stands for "Stitches per Minute."

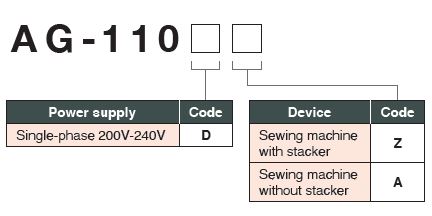

When you place orders
