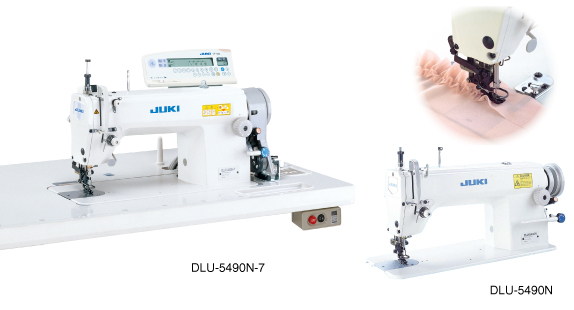

1-needle, Bottom and Variable Top-feed Lockstitch Machine
With its bottom and variable top-feed mechanism, the machine widely adapts to diversified applications and helps promote the production of upgraded-quality products while increasing efficiency.
Product features

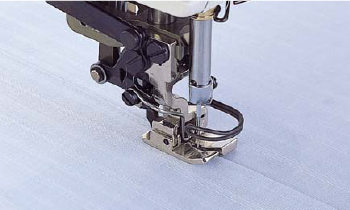

The durability of the walking foot has been dramatically improved
The walking foot provides stable feed at all times, assuring high quality. It also eliminates the need for proficiency.
Ideally balanced top feed and bottom feed
The top feed motion ideally synchronized with the bottom feed motion to uniformly feed the upper and lower cloths, assuring attractive stitches and uniform gathering stitches.
This leads to a higher value of finished products.

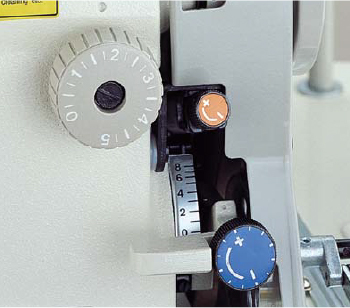

The maximum top feed amount is 8mm
The top feed amount has been increased to assure stable gathering stitches.

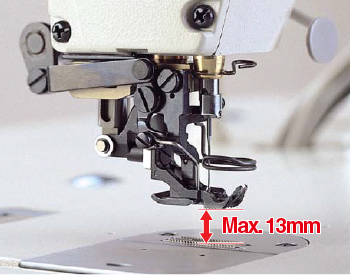

Higher lift of the presser foot
The large lift of the presser foot enables the operator to easily set or remove materials and sew overlapping sections without any difficulty.

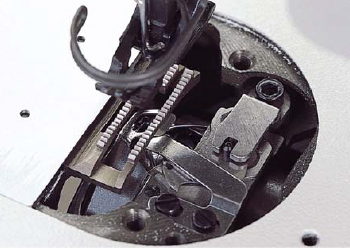

Sure thread trimming mechanism
The machine comes with a thread trimming mechanism that performs speedy and sure thread trimming to achieve highly efficient sewing work.

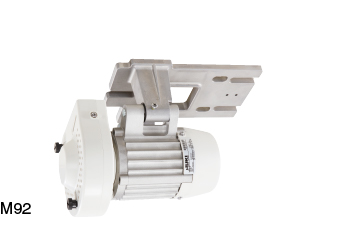

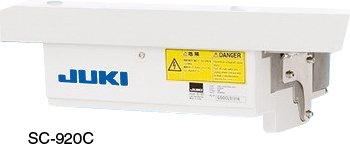

Newly developed control box/Compact-size servomotor (SC-920C/M92)
The new model control box, which energy-saving mode is provided. The new model control box SC-920C has been newly developed. The control box is resistant to voltage fluctuations, noise and vibration.
The new model control box is provided with an energy-saving mode for the first time in a control box for sewing machines.
It reduces power consumption during standby time when the motor is not rotating by approximately 25% (in comparison with the SC-910N).
In addition, the current DLU-5490N-7 is lavished with the latest energy-saving technologies,including the adoption of the latest compact servomotor M92, to be more friendly to theenvironment, as well as to provide the power reducing
effect and to increase productivity.

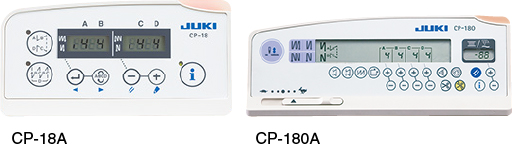

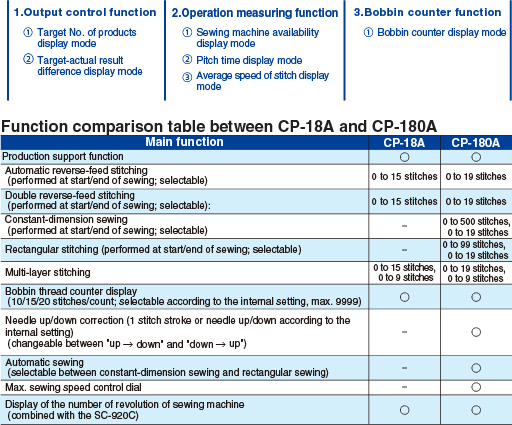

The operation panel can be selected according to the process (CP-18A, CP-180A)
Two different operation panels, the CP-18A and CP-180A are applicable to the DLU-5490N-7. Both operation panels are provided with the production support function.
The production support function actually consists of three different functions (six different modes)
Specification
| Model name | DLU-5490N | DLU-5490N-7 |
|---|---|---|
| Max. sewing speed | 4,500sti/min* | |
| Max. stitch length | 5mm | |
| Max. top-feed amount | 8mm | |
| Needle bar stroke | 30.7mm | |
| Lift of the presser foot | By hand: 5.5mm, By knee: 13mm | |
| Needle (at the time of delivery) | DB×1 (#14), For JE: 134 (Nm90) | |
| Hook | Automatic-lubricating full-rotary hook | |
| Lubrication | Automatic | |
| Lubricating oil | JUKI New Defrix Oil No.1 (equivalent to ISO VG7) | |
| Automatic reverse feed function | - | Provided as standard |
| Power requirement | - | Single-phase 100~120V, 200~240V 3-phase 200~240V |
| Power consumption | - | 650VA |
| Weight | Machine head: 30kg | Total weight: 83kg |
*“sti/min”stands for“ Stitches per Minute”

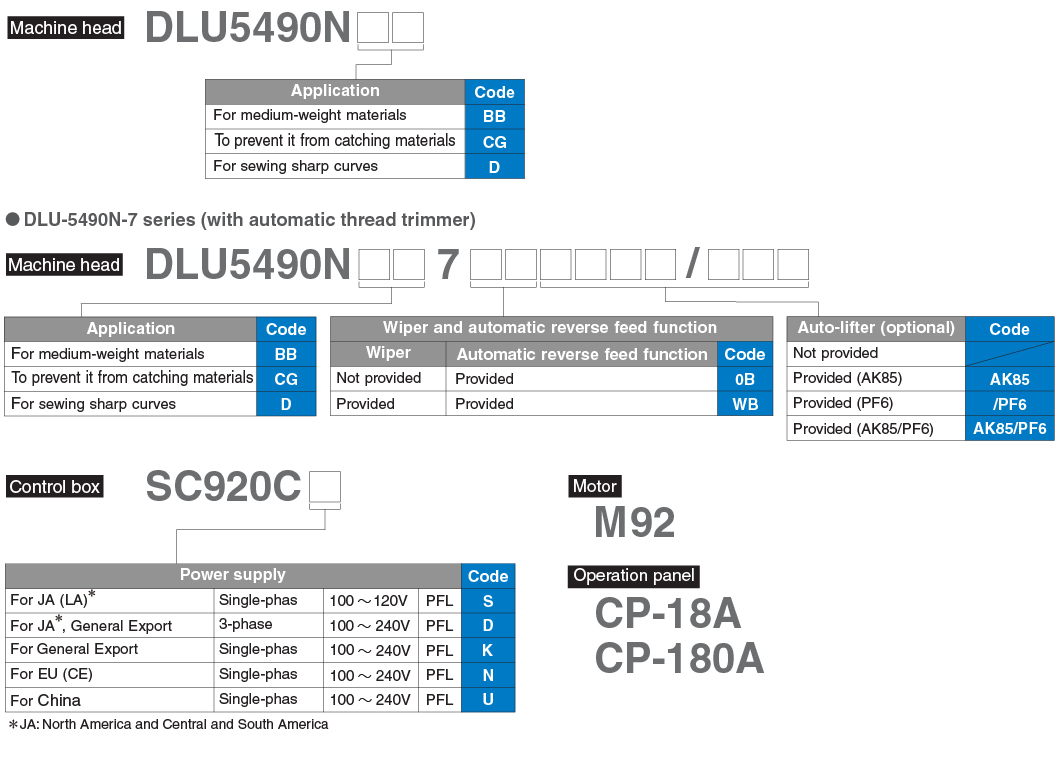

When you place orders
Gauge
DLU-5490N
DLU-5490N-7
For frilling (3 folds)
| Guage type | Guage | THROAT PLATE | FEED DOG | PRESSER FOOT | WALKING FOOT | Applications / features |
|---|---|---|---|---|---|---|
| Figure |  |
 |
 |
 |
||
| Specification | P/N | P/N | P/N | P/N | ||
| A | Light weight | B1109490E00 | B1613490E00 | B1524491AA0 (B1524490AA0) |
B3026490A00 | For attaching frills to aprons and pillows; With a tape guide attached to the presser foot, taking three holds. The tape guide is sold separately. |
For gathering
| Guage type | Guage | THROAT PLATE | FEED DOG | PRESSER FOOT | WALKING FOOT | Applications / features |
|---|---|---|---|---|---|---|
| Figure |  |
 |
 |
 |
||
| Specification | P/N | P/N | P/N | P/N | ||
| BA | Light weight | B1109450A0B | B1613450A00 | B1524491BA0 (B1524490BA0) |
B3026490B00 | For gathering stitch on female dress, blouse yoke, cuffs, etc. |
| BB | Medium weight | B1109450B0B | Standard type For preventing uneven material feed, and for shirring on medium-weight materials |
|||
| BC | Heavy weight | B1109450C0B | For preventing uneven material feed, and for shirring on heavy-weight coat materials, etc. | |||
| BD | B1109450B0B (B1109450A0B) (B1109450C0B) |
B1613450A00 | B3026490B0D | For preventing material scratch on quilted materials, nylon, taffeta, lining, female light-materials, etc. The upper teeth are made of urethane rubber. |
||
| BE | Medium weight | B1109450B0B | B1613450A00 | B1524491BAE | - | A presser foot to use for regular lockstitch. |
| BG | Light weight | B1109490E00 | B1613490E00 | B1524491EA0 (B1524490EA0) |
B3026490B0G | For preventing material scratch on quilted materials, nylon, taffeta, lining, female light-materials, etc. The upper teeth are made of urethane rubber. |
| BJ | Light weight | B1109450G0B | B1613450G00 | B1524491BAJ (B1524490BAJ) |
B3026490B0J | For gathering stitch on female dress, blouse yoke, cuffs, etc. For a narrow width (1-2 mm) gathering stitch for attaching blouse lace |
| BK | Light weight | B1109490E00 | B3026490B0K | B1524491BA0 (B1524490BA0) |
B3026490B0K | For preventing material scratch on quilted materials, nylon, taffeta, lining, female light-materials, etc. Gathering stitch is allowed. |
| BM | Heavy weight/ Medium weight |
B1109450B0B (B1109450A0B) (B1109450C0B) |
B1613450A00 | B1524491BA0 (B1524490BA0) |
B3026490B0M | B3026490B00 (upper feed presser) with a coarse upper feed dog teeth (flat P=1.5mm); with enhanced feeding. |
| BP | Heavy weight/ Medium weight |
B1524491BAP (B1524490BAP) |
B3026490B00 | For shirt stitch (5mm right); While the right side of the BB type presser foot is widened, one side of the upper feed presser is cut as it interferes. | ||
| BT | Heavy weight/ Medium weight |
B1524491BAT (B1524490BAT) |
B3026490B0T | For hemming on shirts (1mm right); The stitch guide plate is fixed to the presser. | ||
| BU | Heavy weight | B1109490B0U | B1613490B0U | B1524491BA0 (B1524490BA0) |
B3026490B00 | For preventing the throat plate from being damaged when stitching corduroy materials, etc. The throat plate thickness of B1109450B0B is thickened (2 -> 3.2mm). |
| BV | Light weight/ Medium weight |
B1109450B0B (B1109450A0B) (B1109450C0B) |
B1613490B0V | B1524491BA0 (B1524490BA0) |
B3026490B0D | Effective for a narrow width feed dog gathering and puckering with the operator-side teeth unprocessed. Urethane rubber upper feed dog |
| BW | Light weight | B1109450B0B (B1109450A0B) (B1109450C0B) |
B1613450A00 | B1524491BAW (B1524490BAW) |
B3026490B0W | Suitable for tape gathering |
| BX | Medium weight | B1109450B0B | B1613450A00 | B1524491BA0 (B1524490BA0) |
B3026490B0X | B3026490B00 (upper feed presser) with a enhanced feeding by enlarged contact surface |
| BY | Light weight | B1109450G0B | B1613450G00 | B1524491BAJ (B1524490BAJ) |
B3026490B0Y | B3026490B0J (upper feeding presser) with three-column teeth, preventing the cloth from being released. |
For stitching
| Guage type | Guage | THROAT PLATE | FEED DOG | PRESSER FOOT | UPPER FEED PRESSER | Applications / features | |
|---|---|---|---|---|---|---|---|
| Figure |  |
 |
 |
 |
|||
| Specification | P/N | P/N | P/N | Figure | P/N | ||
| C | Light weight/ Medium weight |
B1109490D00 | B1613490D00 | B1524491CA0 (B1524490CA0) |
 |
B3026490C00 | For various hemming seam for shirts, blouses, dresses, coats, jackets, etc. (stitching width 1mm with a right stepped presser) |
| CA | Light weight/ Medium weight |
B1109490D00 | B1613490D00 | B1524491CAA (B1524490CAA) |
 |
B3026490C00 | For various hemming seam for shirts, blouses, dresses, coats, jackets, etc. (stitching width 2mm with a left stepped presser) |
| CB | Light weight/ Medium weight |
B1109490D00 | B1613490D00 | B1524491CAB (B152490CAB) |
 |
B3026490C00 | For various hemming seam for shirts, blouses, dresses, coats, jackets, etc. (stitching width 3mm with a left stepped presser) |
| CC | Light weight/ Medium weight |
B1109490D00 | B1613490D00 | B1524491CAC (B1524490CAC) |
 |
B3026490C00 | For various hemming seam for shirts, blouses, dresses, coats, jackets, etc. (stitching width 5mm with a left stepped presser) |
| CD | Light weight/ Medium weight |
B1109490D00 | B1613490D00 | B1524491CAD (B1524490CAD) |
 |
B3026490C00 | For various hemming seam for shirts, blouses, dresses, coats, jackets, etc. (stitching width 1mm with a left stepped presser) |
| CE | Heavy weight | B1109490C0E | B1613490C0E | B1524491DA0 |  |
B3026490D00 | For various runstitch of heavy-weight materials (with a thicker throat plate). |
| CF | Light weight/ Medium weight |
B1109490D00 | B1613490D00 | B1524491CAF |  |
B3026490D0K | For various hemming seam for shirts, blouses, dresses, coats, jackets, etc. (stitching width 0.8mm with a left stepped presser) |
| CG | Medium weight | B1524491CAG (B1524490CAG) |
 |
B3026490D00 | B1524490DA0 (presser foot) with higher R at the front and the back, preventing the cloth from jamming. | ||
| CH | Light weight/ Medium weight |
B1524491CAH (B1524490CAH) |
 |
B3026490D00 | A type with stitch guides on both sides (stitching width 1.5mm for both right and left) | ||
| CJ | Light weight/ Medium weight |
B1524491CAJ (B1524490CAJ) |
 |
B3026490D00 | B1524491DA0 (presser foot) with a modified needle location part (groove -> round hole). The bottom of the (lower) press can have piping grooves processed, enabling better flexible maneuvering performance to allow the piping jig to come closer to the high needle drop point. | ||
| CK | Light weight/ Medium weight |
B1524491CAK (B1524490CAK) |
 |
B3026490D00 | For various stitching for shirts, blouses, dresses, jackets, etc. (stitching width 7mm with a left stepped presser) | ||
| CL | Medium weight | B1524491CAL (B1524490CAL) |
 |
B3026490C0L | For concealed seam under stitching on the female skirt waist belt A type that drops from the surface side with the stitch guide plate (stepped presser) |
||
| CM | Light weight/ Medium weight |
B15124491CAM (B1524490CAM) |
 |
B3026490D00 | For various stitching for shirts, blouses, dresses, jackets, etc. (stitching width 9mm with a right presser) | ||
| CN | Light weight/ Medium weight |
B1524491CAN (B1524490CAN) |
 |
B3026490D00 | For various stitching for shirts, blouses, dresses, jackets, etc. (stitching width 6mm with a left stepped presser) | ||
| CQ | Light weight/ Medium weight |
B1524491CAQ (B1524490CAQ) |
 |
B3026490C00 | A type with an enlarged contact surface of the upper feed (stitch width 1mm with a left stepped presser) | ||
| CR | Light weight | B1524491DAD (B1524490DAD) |
 |
B3026490C0R | B3026490D0D (upper feed presser), for preventing cloth scratch on quilted materials, nylon, taffeta, lining, female light-materials, with a urethane rubber heat-bonded on it. | ||
| CT | Medium weight | B1524491CAT (B1524490CAT) |
 |
B3026490C0T | A type that feeds the Cl-type narrow width type belt side with the upper feeding presser (stepped presser) | ||
| CU | Light weight | B1524491DA0 (B1524490DA0) |
 |
B3026490C0U | B3026490D00 (upper feed presser), for preventing cloth scratch on quilted materials, nylon, taffeta, lining, female light-materials, with a urethane rubber heat-bonded on it. | ||
| CW | Light weight/ Medium weight |
B1524491CAW (B1524490CAW) |
 |
B3026490D00 | B1524491DA0 (presser foot) with stitch guide part (stitch width 4mm) | ||
| CX | Light weight/ Medium weight |
B15124491CAX (B1524490CAX) |
 |
For various stitching for shirts, blouses, dresses, jackets, etc. (stitching width 6mm with a right presser) | |||
| CY | Light weight/ Medium weight |
B1524491CAY (B1524490CAY) |
 |
B3026490C00 | A type with flexible maneuvering performance (stitch width 1mm with a right stepped presser) | ||
| CZ | Light weight/ Medium weight |
B1524491CAZ (B1524490CAZ) |
 |
B3026490C0Z | Left stepped presser for 9mm stitch | ||
For stitching
| Guage type | Guage | THROAT PLATE | FEED DOG | PRESSER FOOT | UPPER FEED PRESSER | STITCH GUIDE SPRING | Applications / features | |
|---|---|---|---|---|---|---|---|---|
| Figure | |
|
|
|
 |
|||
| Specification | P/N | P/N | P/N | Figure | P/N | P/N | ||
| D | Light weight/ Medium weight |
B1109490D00 | B1613490D00 | B1524491DA0 (B1524490DA0) |
|
B3026490D00 | - | For flexible maneuvering performance on stitching shirts and blouses, etc. |
| DA | Light weight/ Medium weight |
B1524491DAA (B1524491DAA) |
 |
For 2m/m B1527490D0A For 5m/m B1527490D0B Screw SS7060310SP |
For various stitching for skirts, trouser belt stitching, etc. (stitching width 2mm) | |||
| DB | Light weight/ Medium weight |
B1524491DAB (B1524490DAB) |
 |
For various stitching for skirts, trouser belt stitching, etc. (stitching width 5mm) | ||||
| DC | Light weight/ Medium weight |
B1524491DAC (B1524490DAC) |
 |
B3026490D0C | - | For various stitching for shirts, blouses, dresses, etc. (stitching width 1mm with a right stepped presser) | ||
| DD | Light weight/ Medium weight |
B1524491DAD (B1524490DAD) |
|
B3026490D0D | - | For various stitching for hemming on shirts, blouses, etc. (stitching width 2mm with right stepped presser) | ||
| DE | Light weight/ Medium weight |
B1524491DAE (B1524490DAE) |
 |
B3026490D00 | - | For various stitching for shirts, blouses, dresses, coats, jackets, etc. (stitching width 3mm with a right stepped presser) | ||
| DF | Light weight/ Medium weight |
B1524491DAF (B1524490DAF) |
 |
- | For various stitching for shirts, blouses, coats, skirts, jackets, etc. (stitching width 4mm with a right stepped presser) | |||
| DG | Light weight/ Medium weight |
B1524491DAG (B1524490DAG) |
 |
- | For various stitching for shirts, blouses, coats, skirts, etc. (stitching width 5mm with a right stepped presser) | |||
| DJ | Light weight/ Medium weight |
B1524491DAJ (B1524490DAJ) |
 |
3m/m B1527490D0J 6m/m B1528490D0J Screw SS7060310SP |
For various stitching for skirts, trouser, etc. (3mm with a stitch guide plate spring) | |||
| DK | Light weight/ Medium weight |
B1524491DAK (B1524490DAK) |
 |
B3026490D0K | - | For hemming seam for shirts, blouses, dresses, coats, jackets, etc. (stitching width 1mm with a left stepped presser) | ||
| DL | Light weight/ Medium weight |
B1524491DAL (B1524490DAL) |
 |
B3026490D00 | - | For various stitching for shirts, blouses, dresses, jackets, etc. (stitching width 7mm with a right presser) | ||
| DM | Light weight/ Medium weight |
B1524491DAM (B1524490DAM) |
 |
- | For various stitching for shirts, blouses, dresses, jackets, etc. (stitching width 3mm with a left stepped presser) | |||
| DN | Light weight/ Medium weight |
B1524491DAN (B1524490DAN) |
 |
B3026490D0N | - | For hemming seam for shirts, blouses, dresses, coats, jackets, etc. (stitching width 2mm with a left stepped presser) | ||
| DP | Light weight/ Medium weight |
B1524491DAP (B1524490DAP) |
 |
B3026490D00 | 1.5m/m B1528490D0P 4m/m B1527490D0P Screw SS7060310SP |
For hemming seam for shirts, blouses, dresses, coats, jackets, etc. (1.5mm with a stitch guide spring) | ||
| DR | Light weight/ Medium weight |
B1524491DAR (B1524490DAR) |
 |
B3026490D0R | - | For piping stitching for dresses, blouses, one-piece dresses, coats, sport jackets, etc. | ||
| DS | Light weight/ Medium weight |
B1524491D0S (B1524490D0S) |
 |
B3026490D00 | - | For hemming seam for shirts, blouses, dresses, coats, jackets, etc. (stitching width 2.5mm) | ||
| DT | Light weight/ Medium weight |
B1524491DAT (B1524490DAT) |
 |
B3026490D0T | - | B3026490D00 (upper feeding presser) with a half width (stitch width 1mm with a right stepped presser) | ||
| DV | Light weight/ Medium weight |
B1524491DAV (B1524490DAV) |
 |
B3026490D00 | 2m/m B1527490D0V 5m/m B1528490D0V Screw SS7060310SP |
A reversed DA type (2mm with a stitch guide spring) | ||
| DW | Light weight/ Medium weight |
B1524491DAW (B1524490DAW) |
 |
B3026490D0W | - | For hemming seam for shirts, blouses, dresses, coats, jackets, etc. (stitching width 1.5mm with a left stepped presser) | ||
| DX | Light weight | B1109490D0X | B1524491DA0 (B1524490DA0) |
|
B3026490D00 | - | Throat plate with a smaller needle hole for light-weight materials | |
| DZ | Light weight/ Medium weight |
B1109490D00 | B1524491DAZ (B1524490DAZ) |
 |
B3026490C00 | - | For stitching collared-shirts runstitch; B1524491BA0 (presser foot) with a longer length (26mm -> 33mm). | |
For materials that are difficult to send
| Guage type | Guage | THROAT PLATE | FEED DOG | PRESSER FOOT | UPPER FEED PRESSER | Applications / features | |
|---|---|---|---|---|---|---|---|
| Figure | |
|
 |
|
|||
| Specification | P/N | P/N | P/N | Figure | P/N | ||
| E | Medium weight | B1109490E00 (B1109490E0D) |
B1613490E00 | B1524491EA0 (B1524490EA0) |
 |
B3026490B00 | A type effective for elastic materials and brushing materials |
| EA | Light weight | B1109490E00 | B1613490E0A | B1613490E00 (feed dog), for preventing cloth scratch on quilted materials, nylon, taffeta, lining, female light-materials, with a urethane rubber heat-bonded on it | |||
| ED | Light weight/ Medium weight |
B1109490E0D | B1613490E0D | A throat plate with a wider feed dog with unprocessed operator-side teeth and a smaller needle hole diameter. Effective for gathering and puckering | |||
| EE | Medium weight | B1109490E0E | B1613490E0E | Improved version of E-type (cloth release prevention) Throat plate: four-ridged feed dog -> three-ridged feed dog Feed dog: four-ridged feed dog -> three-ridged diagonal feed dog | |||
For stitch sewing
| Guage type | Guage | THROAT PLATE | FEED DOG | PRESSER FOOT | UPPER FEED PRESSER | STITCH GUIDE | Applications / features | |
|---|---|---|---|---|---|---|---|---|
| Figure |  |
 |
 |
 |
 |
|||
| Specification | P/N | P/N | P/N | Figure | P/N | P/N | ||
| F | Light weight/ Medium weight |
B1109490F00 | B1613490F00 | B1524491F00 (B1524490F00) |
 |
B3026490F00 | - | For various stitching for shirts, blouses, etc. (stitching width 5-12mm) |
| FA | Light weight/ Medium weight |
B1524491F0A (B1524490F0A) |
 |
- | For various stitching for shirts, blouses, etc. (stitching width 6-12mm) | |||
| FB | Light weight/ Medium weight |
B1524491F0B (B1524490F0B) |
 |
B3026490D00 | [A]B1524490FA0* [B]SS6090520SP |
For various stitching for shirts, blouses, etc. (stitching width 7-12mm) *Max stitch width at 12m/m (by sliding the stitch guide) |
||
| FC | Light weight/ Medium weight |
B1109490E00 | B1613490E00 | B1524491F0C (B1524490F0C) |
 |
B3026490F0C | [A]B1540490FA0* [B]SS6090520SP |
For D-type flexible maneuvering performance. A stitch guide can be attached (stitching width 6-12mm) |
| FD | Light weight/ Medium weight |
B1109490F0D | B1613490F0D | B1524491F0D (B1524490F0D) |
 |
B3026490F0D | [A]B1540490FAD* [B]SS6090520SP |
FA type reverse type (stitch width 6-13mm) Please refer to the item number chart of unsupported gauge. *Max stitch width at 13m/m (by sliding the stitch guide) |
| FE | Light weight/ Medium weight |
B1109490F00 | B1613490F00 | B1524491F0E (B1524490F0E) |
 |
B3026490F0E | [A]B1540490FA0* [B]SS6090520SP |
Effective for uneven pitch on various stitching on collars of various stitching on shirts, blouse, etc. (stitching width 6-12mm) *Max stitch width at 12m/m (by sliding the stitch guide) |
| FG | Light weight/ Medium weight |
B1109490F0G | B1613490F0G | B1524491F0G (B1524490F0G) |
 |
B3026490F0G | [A]B1540490FAG* [B]SS6090520SP |
Left presser for stitching (stitching width 1-8mm) *Max stitch width at 8m/m (by sliding the stitch guide) |
| FJ | Light weight | B1109490F00 | B1613490F00 | B1524491F00 (B1524490F00) |
|
B3026490F0J | [A]B1540490FA0* [B]SS6090520SP |
B3026490F00 (upper feed presser), for preventing cloth scratch on quilted materials, nylon, taffeta, lining, female light-materials, with a urethane rubber heat-bonded on it (stitching width 5-12mm) *Max stitch width at 12m/m (by sliding the stitch guide) |
| FL | Medium weight | B1109450J00A | B1613490J00 | B1524491F0L |  |
B3026490F0L | [A]B1540490FAL* [B]SS6090520SP |
For zipper crest hemming coverstitching (stitching width 2-9.5mm) *Max stitch width at 9.5m/m (by sliding the stitch guide) |
| FM | Light weight/ Medium weight |
B1109490F00 | B1613490F0M | B1524491F00 (B1524490F00) |
|
B3026490F00 | [A]B1540490FA0* [B]SS6090520SP |
Feeding dog with F-type urethane rubber (stitching width 5-12mm) *Max stitch width at 12m/m (by sliding the stitch guide) |
For stitch sewing
| Guage type | Guage | THROAT PLATE | FEED DOG | PRESSER FOOT | UPPER FEED PRESSER | Applications / features | |
|---|---|---|---|---|---|---|---|
| Figure |  |
 |
 |
 |
|||
| Specification | P/N | P/N | P/N | Figure | P/N | ||
| GA | Light weight/ Medium weight |
B1109450G0B | B1613450G00 | B1524491GAA (B1524490GAA) |
 |
B3026491G0A (B3026490G0A) |
A reverse type of M-type (stitch width 1mm with a right stepped presser) |
| GB | Light weight/ Medium weight |
B1524491G0B (B1524490G0B) |
 |
B3026491G0B (B3026490G0B) |
For various stitching for shirts, blouses, etc. (stitching width 1.3mm) | ||
For materials that are difficult to send
| Guage type | Guage | THROAT PLATE | FEED DOG | PRESSER FOOT | UPPER FEED PRESSER | Applications / features | |
|---|---|---|---|---|---|---|---|
| Figure |  |
 |
 |
 |
|||
| Specification | P/N | P/N | P/N | Figure | P/N | ||
| H | Light weight/ Medium weight |
B1109490S00 | B1613490S00A | B1524491HA0 (B1524490HA0) |
 |
B3026490H00 | For materials that are hard to feed, such as suede and vinyl HA-type presser foot with Teflon-lined |
| HA | Light weight/ Medium weight |
B1524491HAA (B1524490HAA) |
 |
B3026490H00 (B302490H0A) |
For materials that are hard to feed, such as suede and vinyl. Effective for puckering as it holds the cloth firmly. | ||
For fastener attachment (right only)
| Guage type | Guage | THROAT PLATE | FEED DOG | PRESSER FOOT | UPPER FEED PRESSER | Applications / features | |
|---|---|---|---|---|---|---|---|
| Figure |  |
 |
 |
 |
|||
| Specification | P/N | P/N | P/N | Figure | P/N | ||
| J | Medium weight | B1109450J00A (B1109490J00) |
B1613450J00A | B1524491JA0 (B1524490JA0) |
 |
B3026491J00 (B3026490J00) |
For attaching fasteners to one-piece dresses, dresses, skirts, jumper jackets, etc. |
| JA | Medium weight | B1109450J00A | B1524491J0A (B1524490J0A) |
 |
B3026491J0A (B3026490J0A) |
For attaching fasteners to dresses, skirts, trousers, jumper jackets, etc. | |
| JB | Medium weight | B1109450J00A (B1109490J0B) |
B1524491JAB (B1524490JAB) |
 |
B3026490J0B | For attaching fasteners to dresses, skirts, trousers, jumper jackets, etc. | |
| JC | Medium weight | B1109450J00A | B1524491JAC (B1524490JAC) |
 |
B3026490J0C | For attaching fasteners to one-piece dresses, dresses, skirts, sports ware, etc. Effective for preventing torsion. | |
| JF | Medium weight | B1524491JAF (B1524490JAF) |
 |
B3026490J0B | For attaching fasteners to one-piece dresses, dresses, skirts, sports ware, etc. Effective when the cloth covers over the fastener. | ||
| JQ | Medium weight | B1109490D00 | B1613490D00 | B1524491J0G (B1524490J0G) |
 |
B3026490J0G | For attaching conceal fasteners to skirts, etc. |
| JJ | Heavy weight | B1109450J00A (B1109490J00) |
B1613490J00 | B1524491JA0 (B1524490JA0) |
|
B3026491J00 (B3026490J00) |
A feed dog with a larger pitch and stronger feed force |
| JK | Medium weight | B1109490P00 | B1613490P00 | B1524491JAK (B1524490JAK) |
 |
B3026490J0K | Reversed JB-type A presser located right to the needle drop point |
| JL | Medium weight | B1109490P00 | B1613490P00 | B1524491JAL (B1524490JAL) |
 |
B3026490J0K | JK-type presser foot with altered needle drop point release form |
| JM | Medium weight | B1109450J00A | B1613450J00A | B1524491JAM (B1524490JAM) |
 |
B3026490J0B | For attaching fasteners to one-piece dresses, dresses, skirts, sports ware, etc. |
| JN | Medium weight | B1524491JAN (B1524490JAN) |
 |
B3026491J0N (B3026490J0N) |
For attaching fasteners to one-piece dresses, dresses, skirts, sports ware, etc. A type to prevent cloth flapping | ||
| JP | Light weight | B1524491JAC (B1524490JAC) |
|
B3026490J0P | For preventing material scratch on quilted materials, nylon, taffeta, lining, female light-materials, etc. B3029490J0C (upper feed presser) with a urethane rubber heat-bonded on it | ||
| JQ | Light weight/ Medium weight |
B1109450G0B | B1613450G00 | B1524491JAQ (B1524490JAQ) |
 |
B3026490B00 | For attaching fasteners (for a one-side presser 1mm right) |
| KA | Light weight/ Medium weight |
B1109490D00 | B1613490D00 | B1524491KAA (B1524490KAA) |
 |
B3026490C00 | A presser with a stitch guide spring (for 1.5mm left) |
| KB | Light weight/ Medium weight |
B1524491KAB |  |
B3026490D00 | A presser with a stitch guide spring (for 3.6mm left) The stitch width converted by replacing the stitch guide. | ||
| KC | Light weight/ Medium weight |
B1109490E00 | B1613490E00 | B1524491K0C |  |
B3026490F0C | A wiper attached to FC-type, preventing the stitch ruler (pair) from attaching (for 5ｍｍ stitch right) |
| KD | Light weight/ Medium weight |
B1109490K0D | B1613490K0D | B1524491KAD |  |
KC-type with a stitch guide spring (for 2mm right) | |
| KE | Light weight/ Medium weight |
B1109490D00 | B1613490D00 | B1524491KAE |  |
B3026490C00 | Left stepped presser for 1.5mm stitch |
| KF | Light weight/ Medium weight |
B1524491KAF |  |
Right stepped presser for 1.5mm stitch | |||
| KJ | Light weight/ Medium weight |
B1524491KAJ |  |
B3026490D00 | Left stepped presser for 5mm stitch | ||
For binding
| Guage type | Guage | THROAT PLATE | FEED DOG | PRESSER FOOT | UPPER FEED PRESSER | Applications / features | |
|---|---|---|---|---|---|---|---|
| Figure |  |
 |
 |
 |
|||
| Specification | P/N | P/N | P/N | Figure | P/N | ||
| L | Medium weight | B1109490L00 | MAT10903N00 | B1524491LA0 (B1524490LA0) |
 |
B3026490D00 | For binding stitching for dresses, one-piece dresses, coats, blazers, vests, etc. |
| LA | Medium weight | B1524491LAA (B1524490LAA) |
 |
B3026490L0A | For binding stitching for one-piece dresses, jackets, vests, dresses, etc. (stitch width 1.5mm left stepped presser) | ||
| LB | Medium weight | B1524491LAB (B1524490LAB) |
 |
B3026490L0B | For binding stitching for one-piece dresses, jackets, vests, dresses, etc. (stitch width 1.5mm left stepped presser) | ||
| LC | Medium weight | B1524491LAC (B1524490LAC) |
 |
For binding stitching for one-piece dresses, jackets, vests, dresses, etc. (stitch width 1.5mm left stepped presser) | |||
| LE | Medium weight | B1109490L00 | MAT10903N00 | B1524491LAE (B1524490LAE) |
 |
B3026490L0B | For binding (stitch width 1mm) |
| LF | Medium weight | B1524491LAB (B1524490LAB) |
|
B3026490L0C | Upper feed with enhanced feeding power (left stepped presser for 1.5mm stitch); the upper feed of B3026490L0B is adjusted to the right angle position from the diagonal position. | ||
| LN | Medium weight | B1524491LAN |  |
B3026491L0N | Reversed LC type (right stepped presser for 1.5mm stitch) | ||
For three rolls
| Guage type | Guage | THROAT PLATE | FEED DOG | PRESSER FOOT | UPPER FEED PRESSER | Applications / features | |
|---|---|---|---|---|---|---|---|
| Figure | |
|
 |
||||
| Specification | P/N | P/N | P/N | Figure | P/N | ||
| M | Medium weight | B1109450G0B | B1613450G00 | B1524491MA0 (B1524490MA0) |
 |
B3026491M00 (B3026490M00) |
For hem triple-winding shapes of one-piece dresses, dresses, coats, skirts, etc. (stitch width 1mm left stepped presser) |
| MA | Medium weight | B1524491MAA (B1524490MAA) |
 |
Stepped presser for hem rubber triple-winding shapes of jumper jackets (stitch width 2mm left stepped presser) | |||
| MD | Medium weight | B1524491MAD (B1524490MAD) |
 |
B3026491M0D (B3026490M0D) |
For hem triple-winding shapes of one-piece dresses, dresses, coats, skirts, etc. | ||
| MF | Medium weight | B1524491MAF (B1524490MAF) |
 |
B3026491M0F (B3026490M0F) |
For hem triple-winding shapes of one-piece dresses, dresses, coats, skirts, etc. | ||
| MG | Medium weight | B1524491MA0 (B1524490MA0) |
|
B3026491M0G (B3026490M0G) |
For preventing material scratch on quilted materials, nylon, taffeta, lining, female light-materials, etc. B3026490M00 (upper feed presser) with a urethane rubber heat-bonded on it. | ||
| MH | Medium weight | B1524491MAH |  |
B3026491M0H (B3026490M0H) |
A type to prevent release of the triple-winding part with a modified box-shaped presser foot of M type (stitch width 1mm left stepped presser) | ||
For piping
| Guage type | Guage | THROAT PLATE | FEED DOG | PRESSER FOOT | UPPER FEED PRESSER | Applications / features | |
|---|---|---|---|---|---|---|---|
| Figure |  |
 |
 |
 |
|||
| Specification | P/N | P/N | P/N | Figure | P/N | ||
| N | Light weight/ Medium weight |
B1109450N0B | B1613450N00 | B1524491NA0 (B1524490NA0) |
 |
B3026490N00 | For piping stitching for dresses, blouses, one-piece dresses, coats, sport jackets, etc. |
| NA | Light weight/ Medium weight |
B1613490N0A | For piping stitching for dresses, blouses, one-piece dresses, coats, sport jackets, etc. | ||||
For piping
| Guage type | Guage | THROAT PLATE | FEED DOG | PRESSER FOOT | UPPER FEED PRESSER | Applications / features | |
|---|---|---|---|---|---|---|---|
| Figure |  |
 |
 |
 |
|||
| Specification | P/N | P/N | P/N | Figure | P/N | ||
| P | Medium weight | B1109490P00 | B1613490P00 | B1524491PA0 (B1524490PA0) |
 |
B3026491P00 (B3026490P00) |
For attaching fasteners to one-piece dresses, dresses, skirts, jumper jackets, etc. Processing allows close edge surface mm from the needle hole. |
| PA | Medium weight | B1109490P0A | B1613490P0A | For attaching apron fasteners to one-piece dresses, dresses, skirts, sports ware, etc. | |||
| PB | Medium weight | B1109490P0B | B1613490P0B | For attaching apron fasteners to one-piece dresses, dresses, skirts, sports ware, etc. A type with 20-degree of feed dog angle, improving forward feeding performance. | |||
| PC | Medium weight | B1613490P0C | Reversed Pb-type feed dog | ||||
| PD | Medium weight | B1109490P0D | B1613490P00 | For attaching apron fasteners to one-piece dresses, dresses, skirts, sports ware, etc. | |||
| PE | Medium weight | B1109490P00 | B1524491PAE |  |
B3026491P0E (B3026490P0E) |
Reverse JN type, preventing cloth from flapping | |
| PF | Medium weight | B1524491P0F (B1524490P0F) |
 |
B3026491P00 (B3026490P00) |
Reversed JA-type | ||
A type that suppresses the fluttering of the cloth
| Guage type | Guage | THROAT PLATE | FEED DOG | PRESSER FOOT | UPPER FEED PRESSER | Applications / features | |
|---|---|---|---|---|---|---|---|
| Figure | |
|
 |
 |
|||
| Specification | P/N | P/N | P/N | Figure | P/N | ||
| Q | Light weight/ Medium weight |
B1109490E00 | B1613490E00 | B1524491QA0 (B1524490QA0) |
 |
B3026490Q0A (knurl) B3026490Q0B (coarse) |
A type that the presser feeds the whole circumference of the needle drop to the upper feed in order to prevent cloth flipping |
| QA | Light weight/ Medium weight |
B1524491QAA (B1524490QAA) |
 |
A type that presses only one side Effective for attaching zippers to jumper jackets | |||
| R | Light weight/ Medium weight |
B1109490R00 | B1613490R00 | B1524491R00 (B1524490R00) |
 |
B3026490R00 | Simple pattern type using the pattern guide for joining of cuffs of shirts and blouses Feed dog teeth with urethane rubber * Cut the upper side of the upper feeding presser as needed. |
Effective for puckering type
| Guage type | Guage | THROAT PLATE | FEED DOG | PRESSER FOOT | UPPER FEED PRESSER | Applications / features | |
|---|---|---|---|---|---|---|---|
| Figure | |
|
 |
 |
|||
| Specification | P/N | P/N | P/N | Figure | P/N | ||
| S | Light weight | B1109490S00 | B1613490S00A | B1524491SA0 (B1524490SA0) |
 |
B3026490S00 | A type with advantages of both rake-in and cloth stitch types |
| SA | Heavy weight | B1613490S0A | A type with larger feed dog pitch of the S-type. Effective for heavy-weight materials and elastic materials. | ||||
| SB | Light weight | B3026490S00A | B3026490S0B | For preventing material scratch on quilted materials, nylon, taffeta, lining, female light-materials, etc. B3026490S00 (upper feed presser) with a urethane rubber heat-bonded on it | |||
| SC | Light weight | B1524491SAC (B1524490SAC) |
 |
B3026490S00 | This type allows to observe the needle drop point of S-type for runstitch of women's wear, thin dresses blouses, etc. | ||
For velvet sewing
| Guage type | Guage | THROAT PLATE | FEED DOG | PRESSER FOOT | UPPER FEED PRESSER | Applications / features | |
|---|---|---|---|---|---|---|---|
| Figure |  |
 |
|
|
|||
| Specification | P/N | P/N | P/N | Figure | P/N | ||
| V | Velvet | B1109450D0B | B1613450E00 | B1524491SA0 (B1524490SA0) |
|
B3026490S00 | Dedicated type for velvet sewing *Please use with Attachment S135. |
Waist belt for drop stitching
| Guage type | Guage | THROAT PLATE | FEED DOG | PRESSER FOOT | UPPER FEED PRESSER | Applications / features | |
|---|---|---|---|---|---|---|---|
| Figure |  |
 |
 |
 |
|||
| Specification | P/N | P/N | P/N | Figure | P/N | ||
| W | Medium weight | B1109490W00 | B1613490W00 | B1524491WA0 (B1524490WA0) |
 |
B302649+H11W00 (B3026490W00) |
For concealed seam under stitching on the female skirt waist belt. Concealed seam from the back. *Please use with Attachment Q049. |
| WA | Medium weight | B1524491W0A (B1524490W0A) |
 |
B3026491W0A (B3026490W0A) |
A type with the needle drop point closer to the Imber. *Please use with Attachment Q049. |
||
