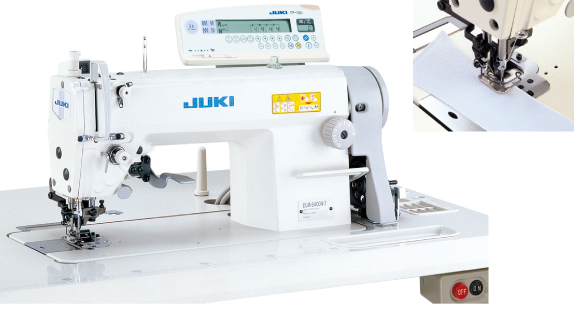

1-needle, Bottom-feed, Lockstitch Machine with Vertical Edge Trimmer and Automatic Thread Trimmer

With its highly operable knife mechanism, the machine helps promote the production of upgraded-quality products while increasing efficiency.

Product features

  • The stitch quality is consistent even during high-speed operation

    Capable of high-speed sewing, it can also flexibly respond to various applications, thus leading to higher productivity.

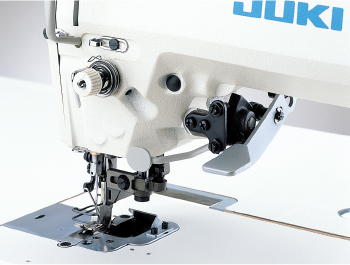

  • The knife is sharp enough to cut any type of material

    The knife is capable of cutting any kind of material regardless of its thickness or toughness, including heavy-weight material, elastic material and brushing material.

  • The one-touch utility knife lever enhances the comfort of operation

    Since the knife lever has been plasted so as to prevent rust, there is no need to worry about the material becoming soiled with rust.

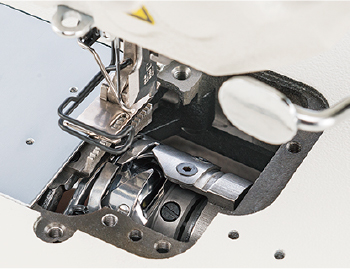

  • Sure thread trimming mechanism

    The thread trimmer is designed to cut various threads of different thicknesses, so the range of the applicable thread thickness number has been widened. The thread trimmer can therefore cut even a thick thread with ease.

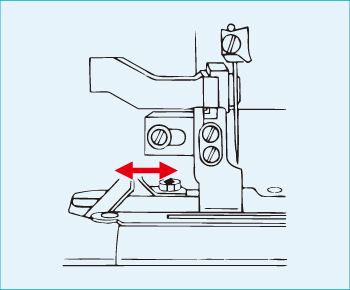

  • Adjustment of the position of the cloth trimming knife

    The cloth trimming knife has been designed so that it can move as much as 5.5mm toward you from the center of the needle.

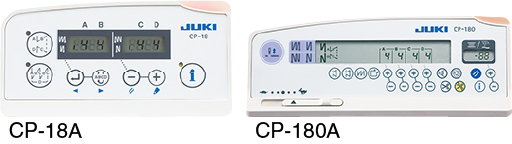

  • The operation panel can be selected according to the process (CP-18A, CP-180A)

    Two different operation panels, the CP-18A and CP-180A are applicable to the DLM- 5400N-7 and DMN-5420N-7. Both operation panels are provided with the production support function.

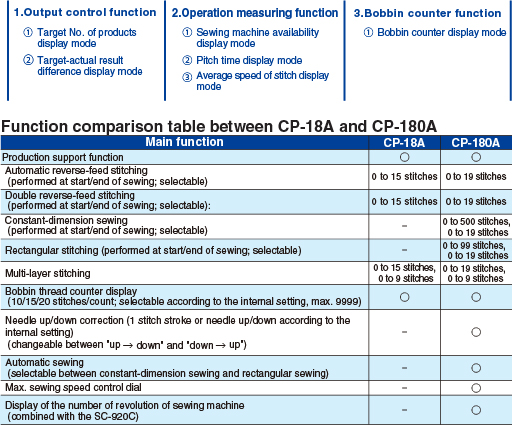

    The production support function actually consists of three different functions (six different modes)

Specification

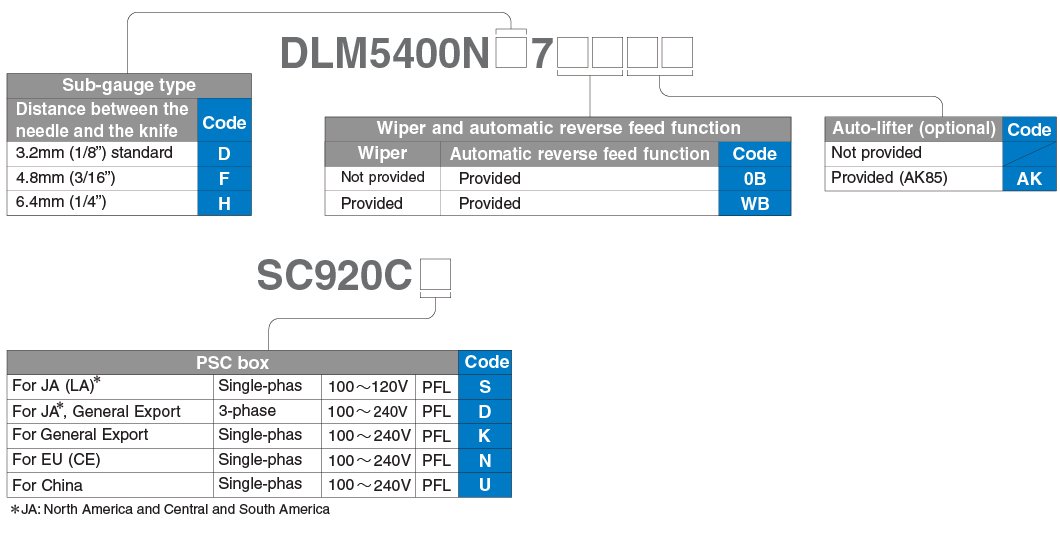

Model name DLM-5400N-7
Max. sewing speed 4,500sti/min *
Feed system Bottom-feed
Max. stitch length 4mm (normal/reverse feed)
Needle bar stroke 30.7mm
Lift of the presser foot By hand: 5.5mm, By knee: 10mm
Needle (at the time of delivery) DB×1 (#14) #9~#18, For JE: 134 (Nm90)
Hook Automatic-lubricating full-rotary hook
Max. thickness of the material to be cut 4mm
Lubrication Automatic
Lubricating oil JUKI New Defrix Oil No.1 (equivalent to ISO VG7)
Automatic reverse feed function Provided as standard
Power requirement Single-phase 100~120V, 200~240V, 3-phase 200~240V
Power consumption 650VA
Total weight 83kg

* "sti/min" stands for "Stiches per Minute"

When you place orders

Gauge

DLM-5400N-7

Guage THROAT PLATE THROAT PLATE COVER GUAGE THROAT PLATE CHIP GUARD CHIP GUARD PRESSER FOOT ASM.
Figure
Sub guage width P/N Remarks P/N Remarks P/N Remarks P/N Remarks P/N Remarks P/N Remarks
3.2mm_D type (Standard) 11346004 - B1155310AD - B1190522Y00 - 11346905 - 11346400 - B1524530EB0 -
4.8ｍｍ_F type 11346004 - B11155300AF - B1190522T00 - 11346905 - 11346400 - B1524530EB0 -
6.4ｍｍ_H type 11346103 - B11155300AF - B1190522U00 - 11347101 - 11346509 - B1524530GB0 -
Guage FEED DOG KNIFE
Figure
Sub guage width P/N Remarks P/N Remarks
3.2mm_D type (Standard) B1613522N00A - B4121522000 -
4.8ｍｍ_F type B1613522N00A - B4121522000 -
6.4ｍｍ_H type B1613522W00A - B4121522000 -

DLM-5400N-7(Spare parts)

Guage THROAT PLATE THROAT PLATE COVER GUAGE THROAT PLATE CHIP GUARD CHIP GUARD PRESSER FOOT ASM.
Figure
Sub guage width P/N Remarks P/N Remarks P/N Remarks P/N Remarks P/N Remarks P/N Remarks
2.4mm_C 11346004 Without wiper B11155310AD Without wiper B1190522X00 Without wiper 11346905 Without wiper 11346400 Without wiper B1524530DB0 Without wiper
2.0mm_CA 11346004 Without wiper B11155310AD Without wiper B1190522Y0A Without wiper 11346905 Without wiper 11346400 Without wiper B1524530CB0 Without wiper
2.4mm_CB 11346004 - B11155310AD - B1190522X0B - 11346905 - 11346400 - B1524530DB0 -
4.0mm_E 11346004 - B11155310AD - B1190522S00 - 11346905 - 11346400 - B1524530DB0 -
4.0mm_EA 11346004 - B11155310AD - 11362753 - 11346905 - 11346400 - B1524530EB0 -
4.8mm_FA 11346004 - B11155300AF - B1190522T0A - 11346905 - 11346400 - B1524530EB0 -
4.8mm_FB 11346004 - B11155300AF - B1190522Y0C - 11346905 - 11346400 - B1524530EB0 -
5.3mm_G 11346004 - B11155300AF - B1190522Y0F - 11347101 - 11346400 - B1524530GB0 -
6.4mm_HA 11346301 - B11155300AF - B1190522U0AA - 11347101 - 11346509 - B1524530GB0 -
7.9mm_K 11346004 - B11155300AF - B1190522Y0B - 11347101 - 11346509 - B1524530GB0 -
9.5mm_M 11346004 - B11155300AM - B1190522V00 - 11347309 - 11346509 - B1524530GB0 -
9.5mm_MA 11346004 - B11155300AM - B1190522V0A - 11347309 - 11346509 - B1524530GB0 -
11.1mm_P 11346004 * B11155300AM * B1190522Y0M * 11347309 * 11346608 * B1524530GB0 *
Guage FEED DOG KNIFE
Figure
Sub guage width P/N Remarks P/N Remarks
2.4mm_C B1613522N00A Without wiper B4121522000 Without wiper
2.0mm_CA B1613522N00A Without wiper B4145530C00 Without wiper
2.4mm_CB B1613522N0C - B4121522000 -
4.0mm_E B1613522N00A - B4121522000 -
4.0mm_EA B1613522N00A - B4121522000 -
4.8mm_FA B1613522N00A - B4121522000 -
4.8mm_FB B1613522N00A - B4121522000 -
5.3mm_G B1613522N00A - B4121522000 -
6.4mm_HA B1613522A0AA - B4121522000 -
7.9mm_K B1613522W00A - B4121522000 -
9.5mm_M B1613522W00A - B4121522000 -
9.5mm_MA B1613522B00 - B4121522000 -
11.1mm_P B1613522W00A * B4121522000 *

 *You need B411853000A and B411953000A.

DLM-5200N

Guage THROAT PLATE THROAT PLATE COVER GUAGE THROAT PLATE CHIP GUARD CHIP GUARD PRESSER FOOT ASM.
Figure
Sub guage width P/N Remarks P/N Remarks P/N Remarks P/N Remarks P/N Remarks P/N Remarks
2.4ｍｍ_C type 11346004 - B1155300AD - B1190522X00 - 11346905 - 11346400 - B1524522NB0A -
4.8ｍｍ_F type 11346004 - B11155300AF - B1190522T00 - 11346905 - 11346400 - B1524522NB0A -
6.4ｍｍ_H type 11346004 - B11155300AF - B1190522U00 - 11347101 - 11346509 - B15240120BA -
Guage FEED DOG KNIFE
Figure
Sub guage width P/N Remarks P/N Remarks
2.4ｍｍ_C type B1613522N00A - B4121522000 -
4.8ｍｍ_F type B1613522N00A - B4121522000 -
6.4ｍｍ_H type B1613522W00A - B4121522000 -

DLM-5200N (Spare parts)

Guage THROAT PLATE THROAT PLATE COVER GUAGE THROAT PLATE CHIP GUARD CHIP GUARD PRESSER FOOT ASM.
Figure
Sub guage width P/N Remarks P/N Remarks P/N Remarks P/N Remarks P/N Remarks P/N Remarks
2.0mm_CA 11346004 - B11155300AD - B1190522Y0A - 11346905 - 11346400 - B1524522NB0A -
3.2mm_D 11346004 - B11155300AD - B1190522S00 - 11346905 - 11346400 - B1524522NB0A -
4.0mm_E 11346004 - B11155300AF - B1190522Y00 - 11346905 - 11346400 - B1524522NB0A -
6.4mm_HA 11346004 - B11155300AF - B1190522U0A - 11347101 - 11346509 - B15240120BA -
7.9mm_K 11346103 - B11155300AM - B1190522Y0B - 11347101 - 11346509 - B15240120BA -
9.5mm_M 11346103 - B11155300AM - B1190522V00 - 11347309 - 11346509 - B15240120BA -
Guage FEED DOG KNIFE
Figure
Sub guage width P/N Remarks P/N Remarks
2.0mm_CA B1613522N00A - B4121522000 -
3.2mm_D B1613522N00A - B4121522000 -
4.0mm_E B1613522N00A - B4121522000 -
6.4mm_HA B1613522A0AA - B4121522000 -
7.9mm_K B1613522W00A - B4121522000 -
9.5mm_M B1613522W00A - B4121522000 -
