SCS (Setup Control System)

SCS is a feeder barcode verification package that confirms operator accuracy and provides related value-added functions. There are four modules available: Barcode Parts Verification (standard), Off-Machine Setup (optional), Traceability (optional) and Component Balance Management (standard).

Features

Improved accuracy, productivity and reduced operator workload

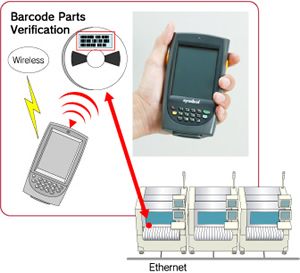

Barcode Parts Verification

The main module of SCS is the barcode parts verification. This system confirms that the correct component has been placed in the correct location when a reel or feeder is replaced. An interlock prevents production from continuing until the component and location are successfully verified using a hand-held wireless data terminal.

Off-Machine Setup Module (option)

The off-machine setup module allows an operator to verify the placement of all feeders on a feeder trolley before it is installed on a machine. This ensures all feeders are present and accurately placed for a quick changeover.

Identify boards with defective components

Traceability Module (option)

Traceability records the serial number of all boards assembled by each machine along with the part number and lot codes of every component placed. This information can be used to identify potentially “bad” boards resulting from a defective lot of components.
※2D barcode reading for traceability.

Rationalization to component management

Component Balance Management

The component balance management is included with SCS to provide basic stock and location information. The stock information is automatically updated as reels are used for production.
