Component insertion×Screw tightening
Automate 2 processes simultaneously!
A further evolved Multitask Platform
Features
High efficiency
One unit can insert component and screw tightening
This highly versatile machine realizes component inserting work, screw fastening work, and multi-process automation. The board size is 800mm x 560mm*¹, and the weight is up to 10kg*².
*1 At double feed: standard
*2 Option
One unit can insert component and screw tightening
High Flexbility
Wide component range from small to large and heavy
XY shaft construction adopted. By setting head unit axis to 2 axes, the compatible component size has been expanded. Component height is 90mm*, component heavy 400g, and insertion force up to maximum 50N.
*Component body 80㎜ or less, lead + body = 90㎜ or less
Supports large and heavy componentComponent size : Max.□150.0㎜
Component height : Max.90㎜*
Component weight : Max.400g
*Component body 80㎜ or less, lead + body = 90㎜ or less

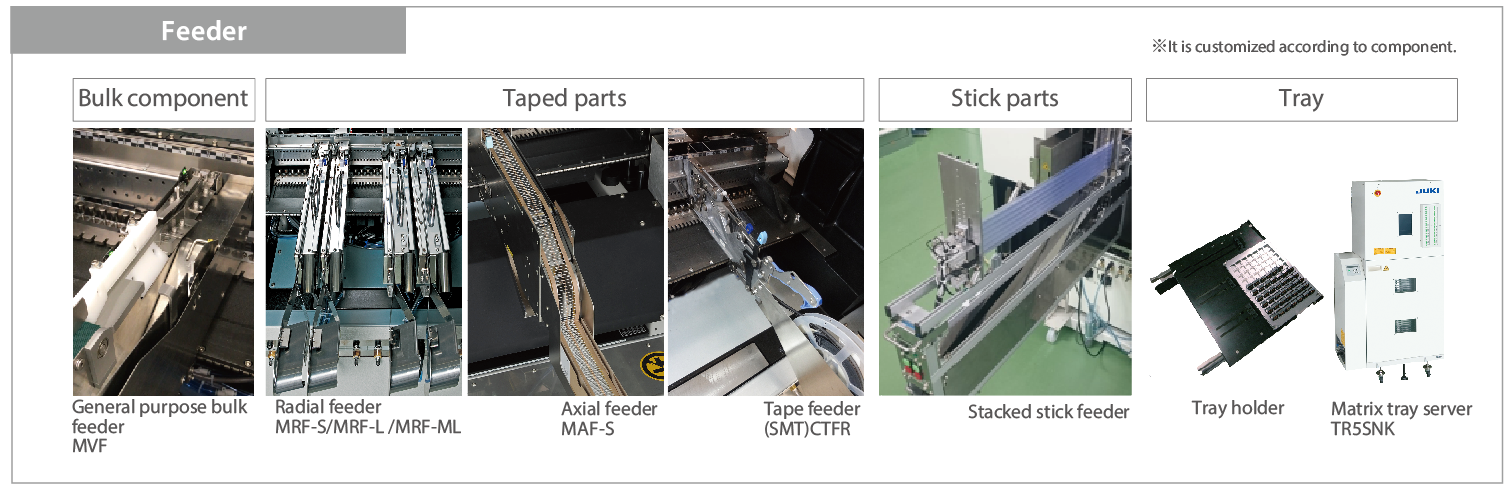

Large variety of feeders and nozzles
High quality
High-precision insertion is realized by image recognition using inspection machine technology
By applying JUKI’s unique 3D image-recognition technique, the leading edge of the lead can be recognized more accurately. It also enables lead recognition with a pointed tip, semicircular tip, and difference in height, enabling high-precision insertion of a wide range of insertion component.
3D inspection
Prevents scratches and misalignment of PCB and component
Screws can be tightened from under the board. Since the board does not need to be turned over, it prevents scratches and misalignment on the board and component and reduces losses.
Specification
| JM-E01 | |
|---|---|
| Board size(㎜) | 1Single clamping：50×50～410×560 Double clamping：50×50～800×560 |
| PCB weight | 6kg(standard）10㎏(option) |
| Component height | Component body 80㎜ or less, lead + body = 90㎜ or less |
| Component size(mm) | Outer dimension (package) size □150mm Recognition size once：40×25, 4×1：150×25, 4×2：150×48, 4×3：150×71 |
| Applicable screw size | M3 size*2 |
| Screw supply method | Force-feed type |
| Machine dimension(mm) (W×D×H) *1 | 1,500×1,930×1,600 |
| Body weight | 2,000kg |
*1 For 900mm conveyor
*2 Please contact for detail
