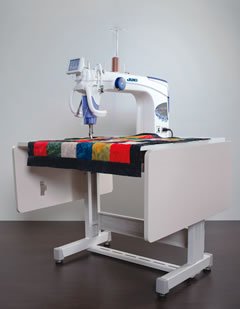

TL-2200QVP Sit Down Type
QUILT VIRTUOSO PRO

Major Features
Greater Visibility with 10" high and 18" throat space perfect for any quilt size.


Large Quilting table with adjustable height and optional extensions.
Industrial Direct Drive Motor Technology.
Dual Directional LED lighting.
Easy to reach Auxiliary hand wheel for precise needle placement.
LCD Touchscreen.
  UP
Variable speed control with a maximum sewing speed of 2200spm.
Customizable speed control - Save your Preferred Settings.
Programmable Needle up / down positions.
Programmable Upper and Lower thread cutter with auto set thread lock.
Electronic Foot control with quick control thread cutting.
  UP
Built in Bobbin Winder with independent motor.
Large M Class Bobbin.
Built in Thread Stand.
Quilting Foot Compatible with 1/4 inch Long arm Rulers.

Machine Head Made in Japan by JUKI.

  UP
Specifications
ITEM
SPECIFICATIONS
Sewing Speed Max. 2,200 spm
Needle bar stroke 35mm
Presser Foot Lift 5.5mm
Needle GB 134R
Bobbin Double capacity “M” style bobbin
Drive System Main shaft, direct drive system
Motor AC servo motor
Working Area 457mm(long) x 254mm(high) (18" x 10")
Machine Weight 26kg (57lbs)
Main Table 900 x 855mm(35.4" x 33.7")
Optional Extension 400 x 855mm(15.7" x 33.7") each
Machine Head Made in Japan by Juki
  UP
Download
Download the documents of TL-2200QVP sit down type


Catalog (1.6MB) USA only



Catalog (776KB)

Sewing Machine Instruction Manual (1.6MB) USA only 120V
Instruction Manual (2.6MB) English 100-240V
Instruction Manual (6.7MB) German
Instruction Manual (7.0MB) Polish
Instruction Manual (7.1MB) Russian
Instruction Manual (6.2MB) French
Instruction Manual (7.0MB) Spanish
Instruction Manual (7.0MB) Italian
Instruction Manual (7.0MB) Dutch
Instruction Manual (6.3MB) Czech
LCD Screen Instruction Manual (0.6MB) English
Instruction Manual (2.0MB) German
Instruction Manual (1.1MB) Polish
Instruction Manual (2.1MB) Russian
Instruction Manual (2.1MB) French
Instruction Manual (1.8MB) Spanish
Instruction Manual (1.9MB) Italian
Instruction Manual (2.1MB) Dutch
Instruction Manual (2.0MB) Czech
LCD, Lighting,
and Surestitch Installation
Instruction Manual (0.9MB) English
Instruction Manual (1.3MB) German
Instruction Manual (3.5MB) Polish
Instruction Manual (2.1MB) Russian
Instruction Manual (2.8MB) French
Instruction Manual (1.7MB) Spanish
Instruction Manual (1.8MB) Italian
Instruction Manual (1.5MB) Dutch
Instruction Manual (1.8MB) Czech
The above documents are PDF format. In order to display and print out the documents, please down load and install Acrobat Reader.
