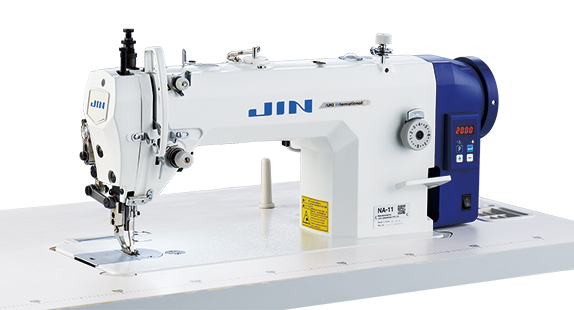

Direct-drive, 1-needle, Top and Bottom-feed, Lockstitch Machine with Double-capacity Hook

Technical textile technologies.
NA-11 series is suited to the sewing and decorative shape-tacking of heavy-weight materials such as sofa, bags and stroller, etc.

Product overview

Product features

  • Needle thread clamping device

    The needle thread device is standard equipment. As a result, the needle thread at the start of sewing does not come out on the cloth, so the start of sewing beautiful finished seams. Operators use scissors less often and can prevent damage to the material caused by thread picking.

  • Increased productivity by improved operability

    The machine achieves a longer distance from machine arm to needle by adopting a high long arm. This means the machine dramatically increases workability when sewing large products such as sofas and car seats.

  • The direct drive system and the operation panel

    The sewing machine has been integrated with the control box and the operation panel for ease of use. The direct-drive motor system has been adopted by all of the sewing machine. This sewing machine is provided with a high-torque direct-drive motor that supports heavy-weight materials. Thanks to this motor, the sewing machine achieves excellent responsiveness and maintains strong material-penetrating power even when sewing multi-layered parts of material.

  • LED Light

    The LED light is located on the underside of the arm jaw. It reduces operator fatigue and improves work efficiency. It is provided as standard for all models ofthe NA-11 Series.

  • Feeding mechanism

    The machine’s powerful top & bottom feed demonstrates its performance when sewing leather and heavy fabric. The lift of the presser foot is as high as 16 mm, which responds to the sewing of bucky materials.

  • Horizontal-axis full-rotary double-capacity hook

    The adoption of the horizontal-axis double-capacity hook helps reduce the frequency of bobbin thread replacement, thereby promising sewing work with efficiency. This hook is also helpful not only when sewing with thick thread but also when sewing a long seam length.

  • Mechanism of automatic thread trimmer (NA-11UT)

    The automatic thread trimmer achieves consistent thread trimming regardless of thickness of the thread, i.e., from thin to thick thread. The machine has adopted the rotary thread trimming mechanism which matches, in particular, design stitch with thick thread for furniture and bags. The automatic thread trimmer improves workability and increases productivity. When compared with the sewing machine without a thread trimmer, the NA-11UT substantially decreases the consumption of thread. The knife pressure can be adjusted with the adjusting screw.


Model name NA-11 NA-11UT
Max. sewing speed 2,000sti/min*
Max. stitch length 8mm (forward / backward)
Needle bar stroke 37mm
Lift of the presser foot By hand: 8mm, By knee: 16mm
Thread take-up Link type
Alternating vertical movement 2.0~5.5mm


Needle DP×17 #23 (#18~#24)
Thread #30~#8
Hook Horizontal-axis full-rotary double-capacity hook
Pitch changing method By dial
Lubrication Automatic lubrication (hook only)
Lubricating oil MACHINE OIL No.18 (ISO VG18 equivalent)
Distance from needle to machine arm 261mm×130mm
Main motor output 750w
Power consumption 236 VA
Weight of the machine head 35kg 37kg

sti/min is the abbreviation for "stitches per minute"

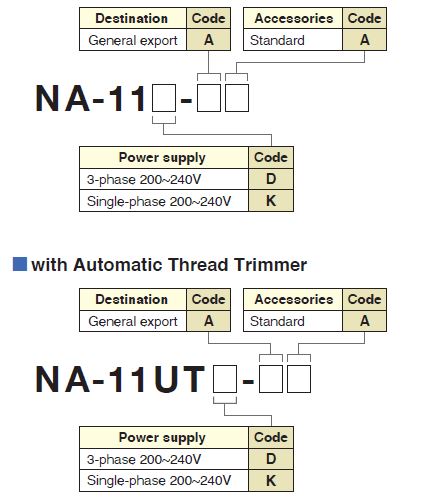

When you place orders


  • Description Part No.
    Foot lifter JINPF202TD41201
