• Product overview

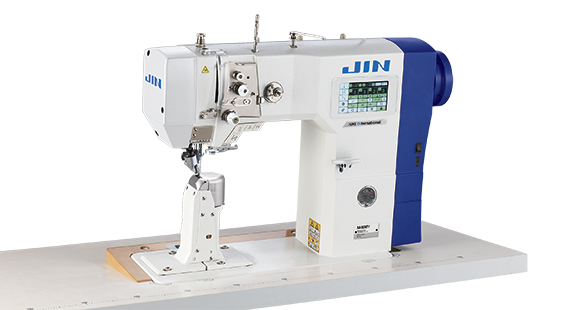

  NA-35DUT-1

•
  NA-35UT-2

• An excellent wheel feed mechanism for sewing shoes

  With help from its top & bottom wheel feed mechanism to secure the material, the NA-35 Series keeps the needle entry in clear view and stably feeds even materials with multi-layered parts. The machine produces flawlessly finished seams with no slippage or irregular stiches, even when sewing slippery materials. The 1-needle type model in the NA-35 Series is designed with a needle feed mechanism to produce more beautifully finished seams while further reducing fluctuations in speed.



• Digital stitch length control
  （Only NA-35DUT is supported）

  Equipped with digital stitch length control function as standard. Stitch length adjustments can be easily programmed in the control panel rather than using mechanical dialing.

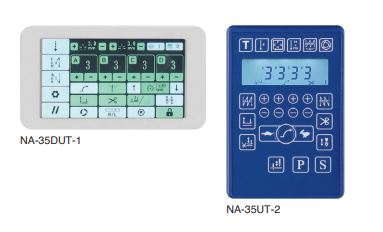

• Operation panel

  The operation panel comes with every machine as standard. The color control panel of NA35DUT has excellent visibility and improves workability due to the high-clarity display. Easy-to-understand pictographs are displayed on the operation panel to ensure that the guidance displayed is easy to understand even for inexperienced operators.

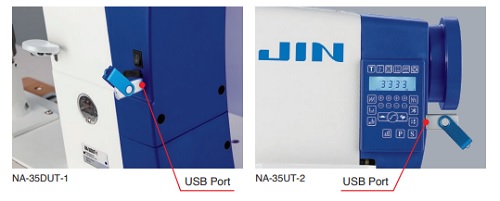

• The control box & USB port

  The control box is integrated with the machine head to facilitate machine setup, and now comes with a USB port for charging.



• Direct-drive motor is installed

  The direct-drive motor system has been adopted. As a result, the sewing machine starts up swithly and promises increased stop accuracy, thereby demonstrating improved responsiveness. Since the sewing machine has no V-belt, the operator needs neither to clean up shavings from the V-belt, nor adjust the V-belt tension.

• LED light & Flip-up ruler

  The LED light is located on the underside of the arm jaw. It reduces operator fatigue and improves work efficiency. It is provided as standard for all models ofthe NA-35 Series. A flip-up ruler is standard equipment. Since the ruler is a flip-up type, it can be easily attached and detached without using a driver when not in use.



• Mechanism of automatic thread trimmer

  The automatic thread trimmer achieves consistent thread trimming regardless of thickness of the thread, i.e., from thin to thick thread. The machine has adopted the rotary thread trimming mechanism which matches, in particular, design stitch with thick thread for furniture and bags. The automatic thread trimmer improves workability and increases productivity. When compared with the sewing machine without a thread trimmer, the NA-35 Series substantially decreases the consumption of thread. The knife pressure can be adjusted with the adjusting screw.

• Increased produtivity by improved operability
  （Only NA-35DUT is supported）

  With hand switch as standard equipment,operators can quickly switch between frequuently used functions in sewing work,improving productivity.

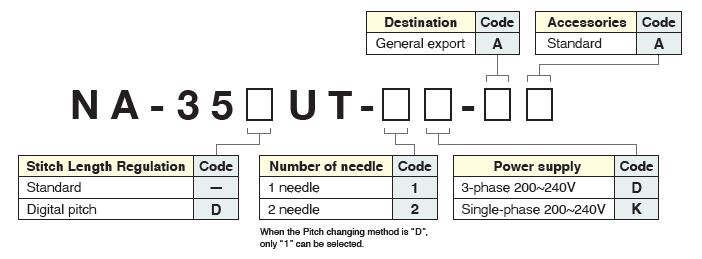

When you place orders
