High-speed, Top & Bottom Coverstitch Machine

The F-1 Series is a direct drive type with a maximum sewing speed to 5,000sti/min.
The direct drive system has been adopted.
The operation panel is integrated with the control box


  • Product overview
    F-1F Series

  • F-1C Series

Product features

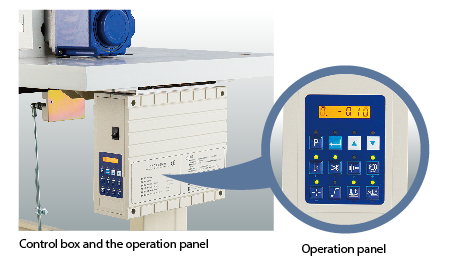

  • The direct drive system and The operation panel

    The direct-drive motor system has been adopted to all of the sewing machines. As a result, the sewing machine starts up swiftly and promises increased stop accuracy, thereby demonstrating improved responsiveness. The sewing machine has been integrated with the control box and the operation panel for ease of use.

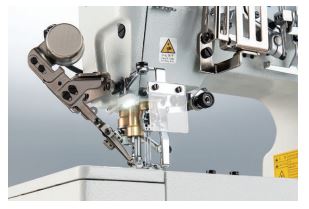

  • LED light

    The LED light is located on the underside of the arm jaw. It reduces operator fatigue and improves work efficiency. It is provided as standard for all models of the F-1 Series.


Model name F-1F-U, C, E F-1C-U, H
Stitch type 3-needle top and bottom covering stitch
Max. sewing speed 5,000 sti/min*
Stitch pitch adjustment By push button By dial
Differential feed adjustment By lever By screw adjustment
Needle bar stroke converting function 31.0mm 33.4mm
Lift of the presser foot 5mm (with top and bottom covering stitch),
8mm (with bottom covering stitch)
Needle UY×128GAS #11 (#11~#14)
Lubrication Automatic
Lubricating oil JUKI Machine Oil 18 (equivalent to ISO VG18)
Silicon oil tank for needle tip and needle thread Provided as standard
Cartridge oil filter Provided as standard
Power requirement Single-phase 220V/Single-phase 110V
Power consumption 869VA 822VA

*sti/min is the abbreviation for “stitches per minute”

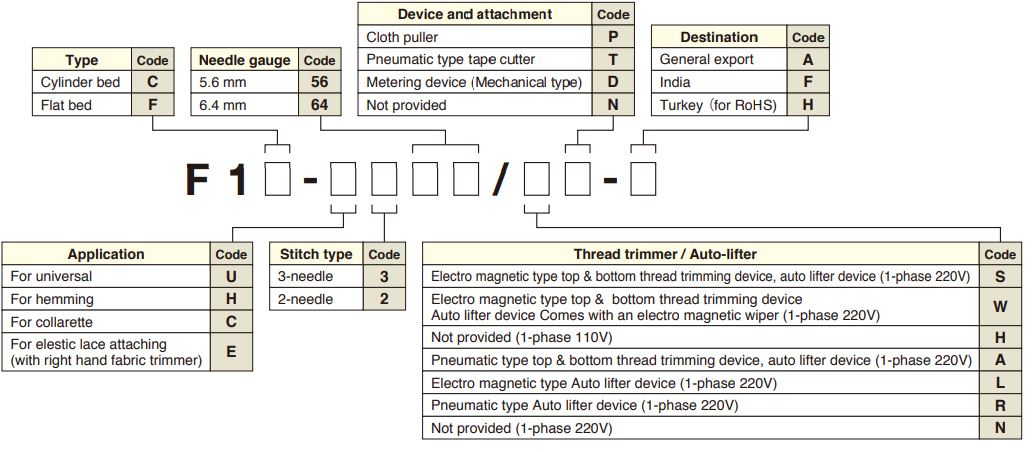

When you place orders

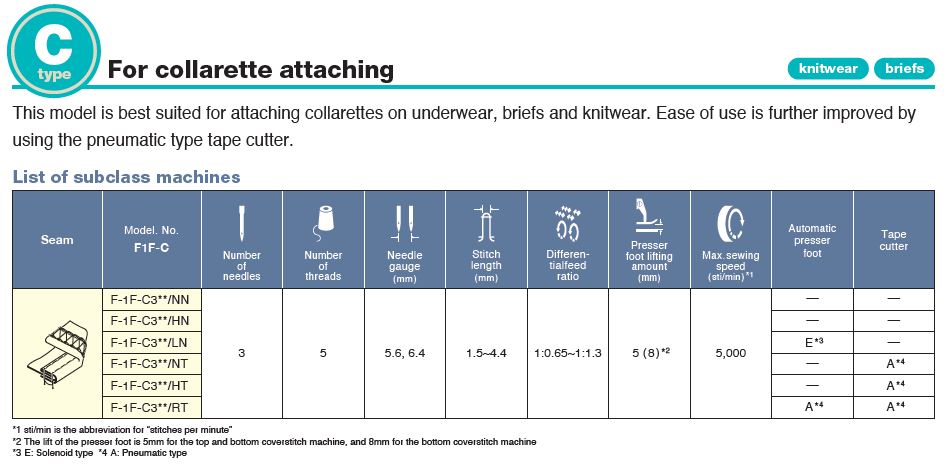

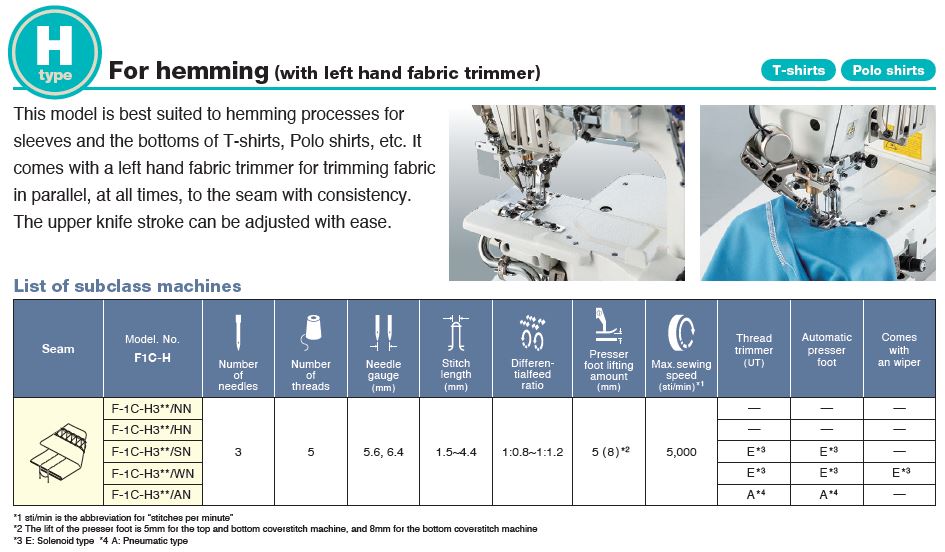

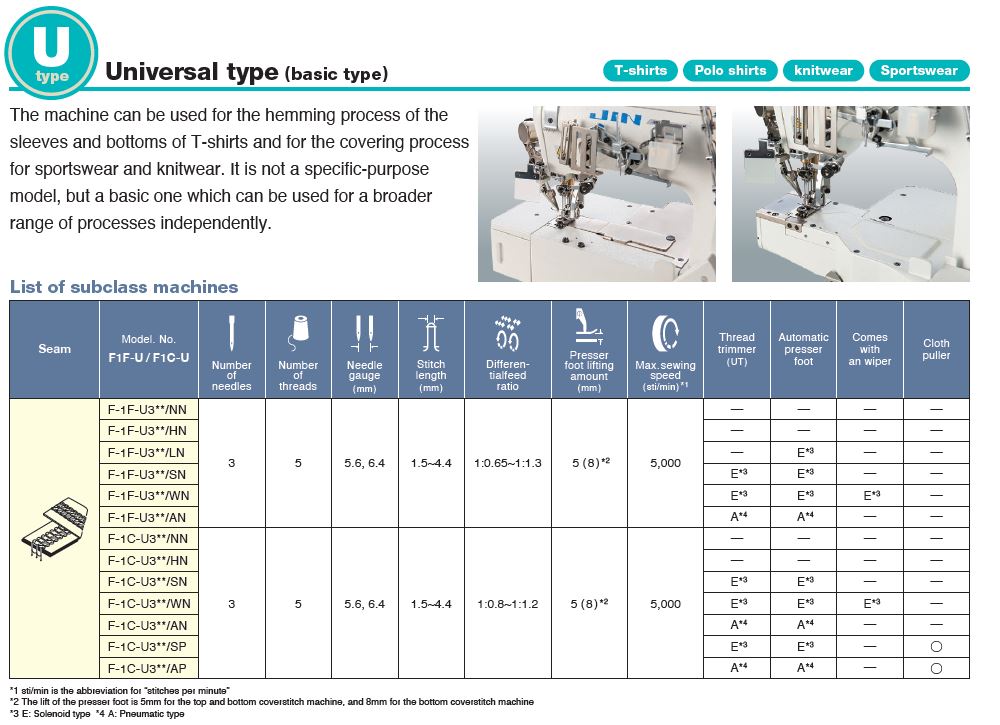

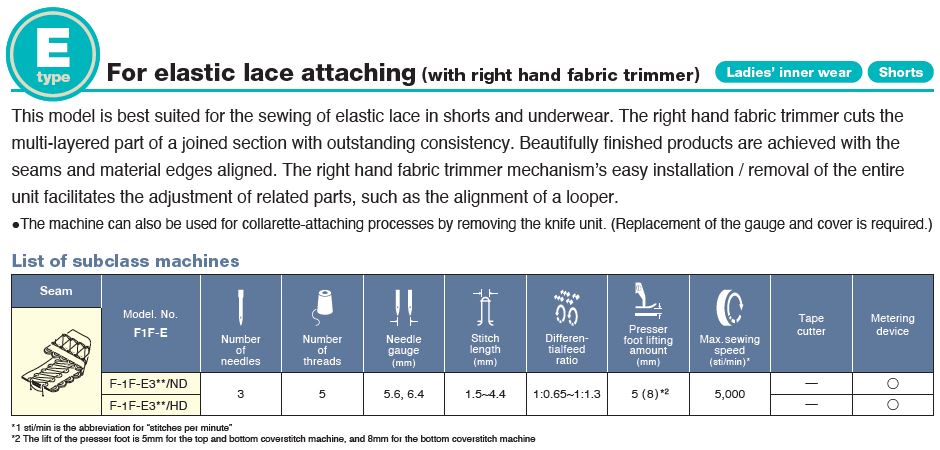

Subclass machine list


  • Description Part No. Remarks
    Blower type Suction device JINBF3202635ABXFZZ
    Pneumatic type Suction device JINBF3202635ABXFZZQ
