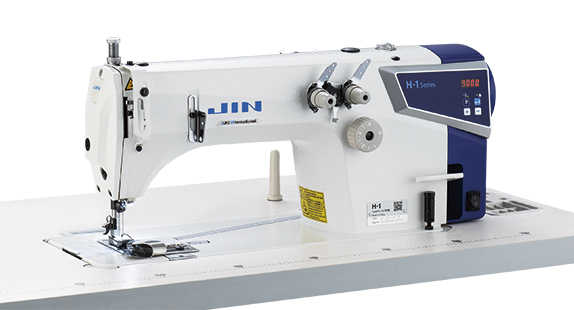

High-speed, Flat-bed, Double Chainstitch Machine
Various gauge sets allow the machine to adapt to many different processes and specifications.
Accurate stitching performance and durable finished seams are particularly necessary in the chainstitching process.
The H-1 series is capable of high quality and stable sewing.
Product overview
Product features
Basic performance
The machine is capable of performing consistent condensation stitching,ensuring finished seams of higher quality.
You can easily set the machine to perform condensation stitching by operating the lever. Condensation stitches that prevent the thread from fraying can be consistently sewn.
Operation panel
The operation panel has a simple design such as switching the vertical position of the needle and setting the maximum sewing speed.
LED light
The LED light is located on the underside of the arm jaw. It reduces operator fatigue and improves work efficiency. It is provided as standard for all models ofthe H-1 Series.
Specification

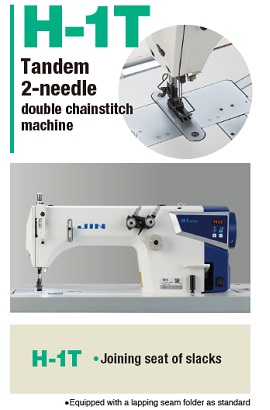

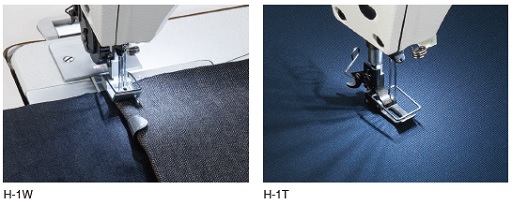

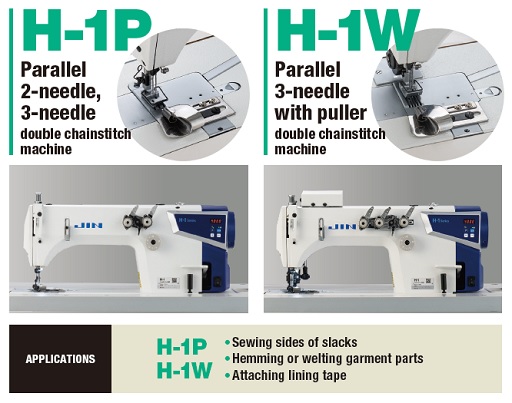

| Model name | H-1P, H-1W | H-1T |
|---|---|---|
| Max. sewing speed | 4,000sti/min* | |
| Max. stitch length | 4mm | |
| Lift of the presser foot | By hand: 5.0mm / By knee: 10mm | |
| Needle bar stroke | 31mm | |
| Needle | 2-Needle: TVX7 (#16) #11-#18 3-Needle: Uy128 (#21) #14-#21 |
TVX7 (#16) #11-#18 |
| Thread take-up | Needle bar thread take-up | |
| Stitch length adjustment | By stitch dial (lockstitch) | |
| Condensation stitches | By lever for condensation stitching | |
| Looper system | Separetely adjutable type | |
| Lubrication | Automatic | |
| Lubricating oil | JUKI MACHINE OIL 7 (equivalent to ISO VG7) | |
| Power consumption | 429 VA | |
| Power requirement | Single-phase 220V/Single-phase 110V | |
*sti/min is the abbreviation for "stitches per minute"

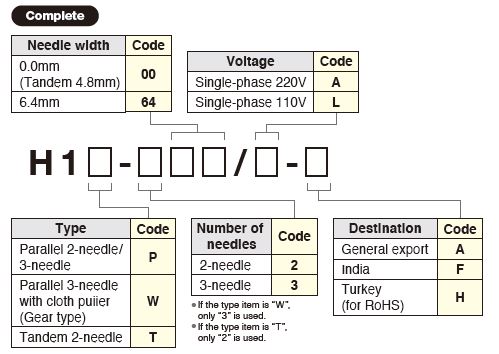

When you place orders

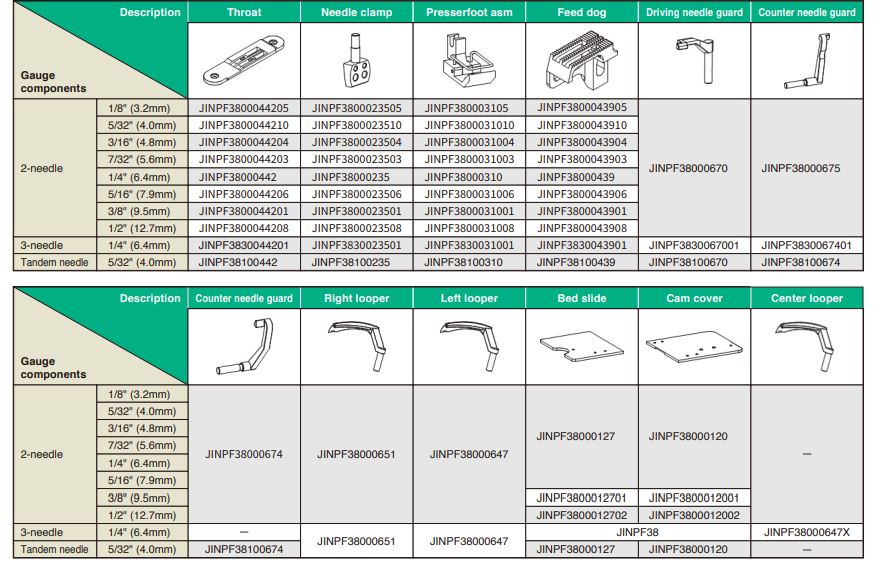

Gauge
