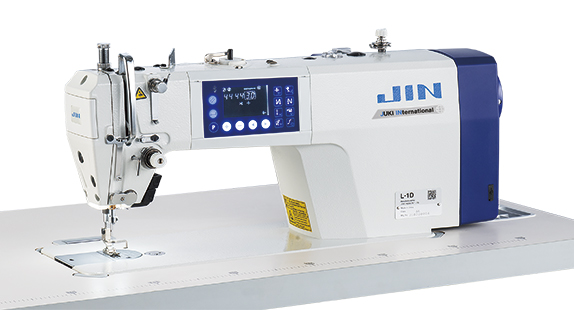

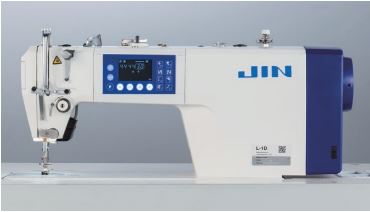

• Operation panel and control box are integrated with the machine head

  The sewing machine has been integrated with the operation panel and the control box for ease of use. All of the L-1D series adopt the direct drive system. As a result, the sewing machine starts up swiftly and promises increased stop accuracy, thereby demonstrating improved thereby demonstrating improved responsiveness.



• Direct-drive type

  Since the sewing machine has no V-belt, the operator needs neither to clean up shavings from the V-belt, nor adjust the V-belt tension.



• USB port

  The L-1D series is equipped as standard with a USB port that can be used to charge smartphones, etc.

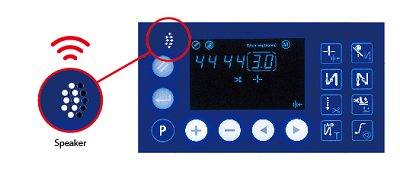

• Voice guidance for assisting the operator

  This sewing machine is provided as standard with the voice guidance.

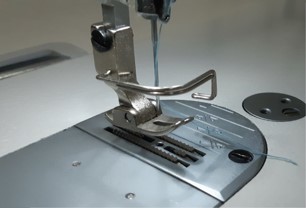

• Sewing mechanism that demonstrates outstanding responsiveness to materials to be sewn

  By thoroughly in modifying the sewing mechanisms, the machine flexibly responds to various kinds of materials and produced beautiful seams of consistent quality by digital controled feed system.



• LED hand light

  Illuminance of the LED hand light is adjustable in five levels. It can be adjusted to the illuminance to help the operator to easily carry out work around the needle, thereby helping increase work efficiency.



• Automatic presser foot lifter

  The presser foot moves quietly and swiftly, providing a light, smooth, and enjoyable operation. (A knee lifter is also standard equipment)

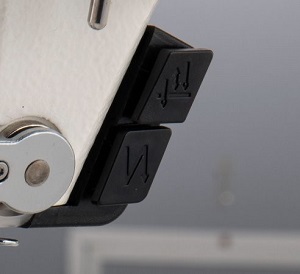

• Two switches

  L-1D  has two Switches as standard. ​It is possible to be customized.The upper button is the reverse stitch button, and the lower button is the half-stitch correction switch.



• Advantages of needle  and thread picking

  JIN has a needle bar stroke of 33mm and a looper stroke of 112-122mm, providing a sufficient range of operation compared to other brands: Beautiful stitches: The sufficient thread lift ensures that the stitches are tight and aesthetically pleasing. Suitable for thick fabrics: In thick or multi-layer sewing, more thread needs to be lifted, allowing for appropriate tension on the fabric.

When you place orders

• Description	Part No.
  THROAT PLATE	JINPF555063601F
  FEED DOG	JINPF55500634C
