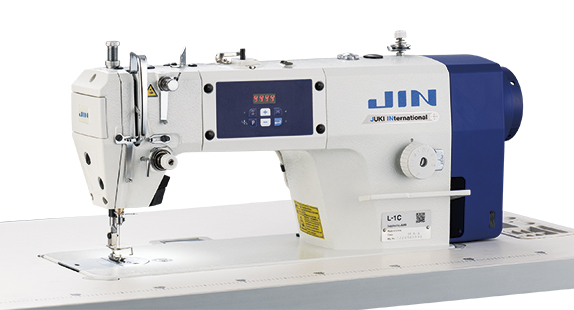

Direct-drive, 1-needle, Lockstitch Machine with Automatic Thread Trimmer
Simple is the best.
The sewing machine has been integrated with the operation panel and the control box for ease of use.
Product overview
Product features

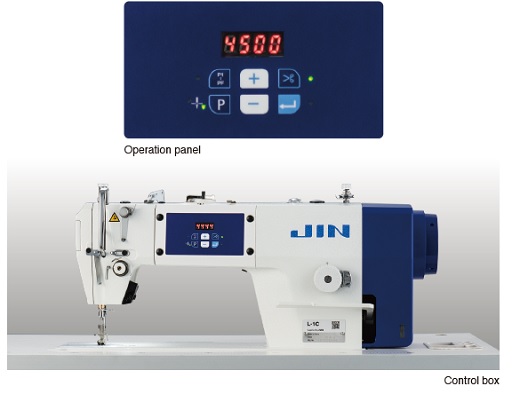

Operation panel and control box are integrated with the machine head
The sewing machine has been integrated with the operation panel and the control box for ease of use. All of the L-1C series adopt the direct drive system. As a result, the sewing machine starts up
swiftly and promises increased stop accuracy, responsiveness. Thereby demonstrating improved.
Basic performance
Direct-drive type
Since the sewing machine has no V-belt, the operator needs neither to clean up shavings from the V-belt, nor adjust the V-belt tension.

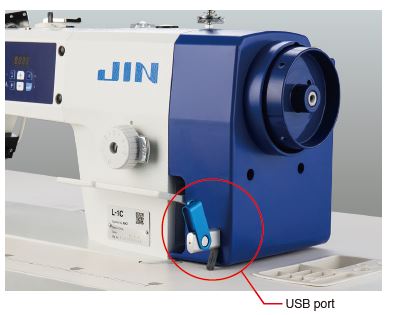

USB port
The L-1C series is equipped as standard with a USB port that can be used to charge smartphones, etc.

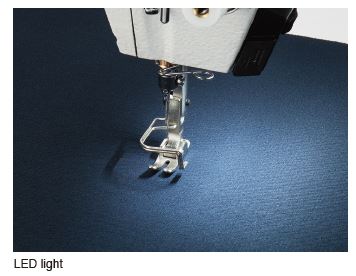

LED light
The LED light is located on the underside of the arm jaw. (ON-OFF type) It reduces operator fatigue and improves work efficiency. It is provided as standard for all models ofthe L-1C Series.
Rotary thread-trimming mechanism
The machine adopts a single-blade drive rotary thread-trimming mechanism, so it is easy to maintain.
Specification
Model name | L-1C-M | L-1C-H |
---|---|---|
Application | Medium-weight | Heavy-weight |
Max. sewing speed | 4,500sti/min* |
3,500sti/min* |
Max. stitch length | 5mm | |
Lift of the presser foot | By hand: 5.0mm / By knee: 13mm | |
Needle | DB×1 (#14) #11-#18 | DP×5 (#21) #16-#21 |
Lubrication | Automatic | |
Lubricating oil | JUKI MACHINE OIL 7 (equivalent to ISO VG7) | |
Power consumption | 480VA | |
Power requirement | Single-phase 220V/Single-phase 110V |
*sti/min is the abbreviation for "stitches per minute"
