Direct-drive, 1-needle Lockstitch Machine with Vertical Edge Trimmer

The sewing machine has been integrated with the operation panel and the control box for ease of use. All of the C-1 series adopt the direct drive system.

Product features

  • Easy-to-use vertical edge trimmer

    The fabric cutting knife can be easily raised or lowered with the knife lever and bar on the top of the face section of sewing machine, and sewing can be done without using the
    knife. The knife is capable of cutting any kind of material regardless of its thickness or toughness, including medium-weight material, elastic material and brushing material.

  • Direct-drive type

    Since the sewing machine has no V-belt, the operator needs neither to clean up shavings from the V-belt, nor adjust the V-belt tension.

  • Operation panel and control box are integrated with the machine head

    The sewing machine has been integrated with the operation panel and the control box for ease of use. All of the C-1 series adopt the direct drive system. As a result, the sewing machine starts up swiftly and promises increased stop accuracy, responsiveness, thereby demonstrating improved.

  • Realizes a dust collection space of 29 mm in width

    The C-1 and C-1A have a 29 mm wide dust collection space to support comfortable working.
    *The dust collection space of the C-1-TB is 28 mm wide.

Basic performance

  • LED light

    The LED light is located on the underside of the arm jaw. It reduces operator fatigue and improves work efficiency. It is provided as standard for all models of the C-1 Series.

  • USB port

    The C-1A is equipped as standard with a USB port that can be used to charge smartphones, etc.

Specification

Model name C-1/C-1-TB
Max. sewing speed 4,000sti/min*
Max. stitch length 5mm
Lift of the presser foot By hand: 5mm / By knee: 13mm
Needle DB × 1 ( #14 ) #11~ #18
Lubrication Automatic
Lubricating oil JUKI Machine Oil 7 (equivalent to ISO VG7)
Power requirement Single-phase 220V / Single-phase 110V
Power consumption 392VA

*sti/min is the abbreviation for "stitches per minute"

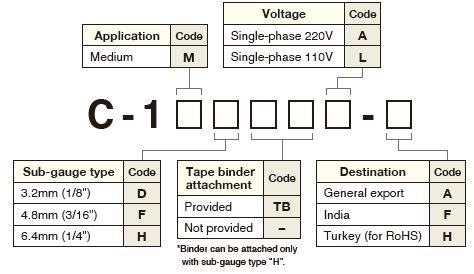

When you place orders
