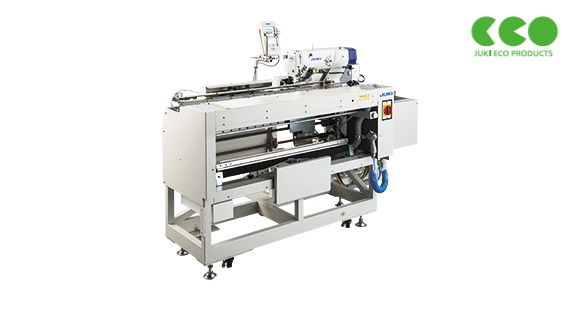

High-speed, Computer-controlled Buttonholing Indexer

For a more sophisticated appearance, faster operation, and easier use!
The latest machine head reduces operating noise and improves the maintainability of the cloth-cutting knife.
Comes with a large color LCD touch panel to improve operability.

Product features

  • The preset mechanism helps increase productivity

    Since the automatic buttonholing indexer carries out buttonholing successively, the operator conventionally has had waiting time while the sewing machine is in operation (for buttonholing). JUKI’s preset mechanism allows the operator to place the subsequent garment body to be sewn on the preset board while the sewing machine is still engaged in the sewing of the current garment body (so-called overlapping work). Consequently, the operator now can use his/her waiting time effectively during operation to achieve increased productivity.



  • Sub-clamp device to support the buttonholing of fabrics with vertical stripes

    The sewing machine comes with a sub-clamp device that prevents material slippage during transport from the preset mechanism to the sewing machine. The independent sub-clamp device of the carriage unit on the machine head clamps the material to keep it from slipping out of position. This function promises reliable delivery operation and consistent seam quality even when sewing vertical-striped fabrics. The machine is also equipped with a function to eliminate false starts by detecting whether or not a material is present.

  • A large color LCD touch panel IP-420 for touch operation

    The larger screen of the new color LCD touch panel displays sewing data such as the stitch shape and stitch number. The input function on the operation panel enhances ease of use by allowing the operator to input and edit sewing data while watching the area around the needle entry points. The operation panel is equipped with USB and CompactFlash ports for easier software upgrades and data-sharing with other devices.

  • A single buttonholing indexer for both men’s and ladies’ shirts

    The sewing mode can be easily switched between men’s dress shirts and ladies’ blouses on the operation panel. Sewing specifications (buttonhole size, buttonhole interval, etc.) can also be quickly and easily changed with a few touches of the panel interface. Buttonholes can be sewn from the top when sewing ladies’ garment bodies, just as they are with men’s. The machine can also space buttonholes at different intervals on a garment, as required.



Basic performance

  • High-performance indexer mechanism

    A stepping motor controls material feed amounts in increments of 0.1 mm to feed materials with both consistency and accuracy. The machine is able to sew 1 to 20 buttonholes and stores 20 different stitching patterns in its memory. The sewing machine is provided as standard with a facility that moves the carriage unit synchronously with the operation of the sewing machine during sewing, thereby enabling accurate and unfailing feed of the material while preventing material slack.

  • Space-saving type stacker built into the main body of the sewing machine

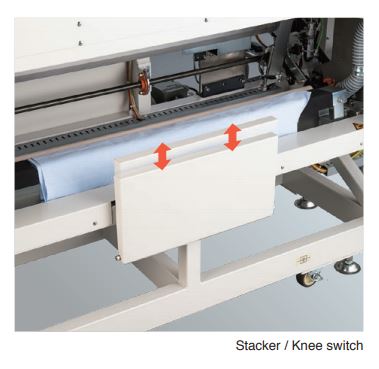

    The stacker clamps the buttonholed garment body and automatically stacks it without fail. This operation increases productivity by improving the efficiency of the material taking/stacking by the operator.

  • Knee switch and hand switch are also provided

    The operator can use the knee switch to turn ON the machine start switch while holding a garment body with both hands. This feature increases the stability of material placement and shortens the time required to complete it. The height of the knee switch is adjustable. If the operator turns ON the machine start switch with a material placed on the preset mechanism, the sub-clamp device automatically carries the next material to the sewing position after the current material is buttonholed. This function improves productivity by allowing the operator to run two or more sewing machines or carry out other tasks while buttonholing is underway.

  • Equipped with an LED light to illuminate the needle entry area

    The LED light is equipped as standard under the arm jaw. The LED light lights up automatically whenever the sewing machine power is turned ON. This LED light provides a comfortable work environment to help the operator easily thread the needle and check the stitches.

Specification

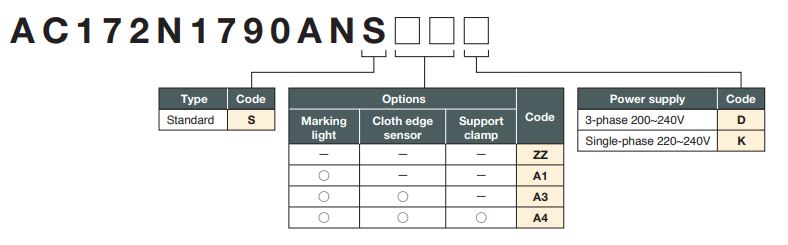

Model name AC-172N-1790AN
Max. sewing speed 4,200 sti/min (normal:3,600 sti/min)*
Sewing dimension Standard : Width 4mm x length 25mm
(Max. Width 6mm x length 120mm by repiacing parts)
Cloth trimming length 6.4~19.1mm (1/4~3/4 inch)
Lift of the work clamp foot Max.14mm
Needle DPx5 #11J~#14J
(Needle installed at the time of delivery #11J)
Feed system Stepping motor
Feed direction Right (for men's garments) or left (for ladies' garments)
Unit of feed amount 0.1mm
Number of patterns
that can be input
20 patterns
Number of buttonholes 1~20 pcs.
Power requirement 3-phase 200~240V, Single-phase 220~240V
Power consumption

800VA

Compressed air and
air consumption
0.5MPa (5kg/cm²) 240Nl/min
Dimensions 1,910(W) x 850(D)x920mm(H)
(Up to the preset table surface)
Total weight 300kg
Presetting device Provided as standard
Stacker Provided as standard
Lubricating oil JUKI New Defrix Oil No.1

*"sti/min" stands for "Stitches per Minute."

APPLICATIONS SIZE OF CLOTH

A Buttonhole
interval
0~610mmm
(0.1mm steps)
B Total feeding
amount
MAX.610mm
C Distance from the
top end of the
garment body to
the first buttonhole
MAX.140mm
D Distance from the
front side end of the
garment body to
the buttonhole
7~21mm
E
F
Applicable size of
the garment body
to be sewn
Width:220~420mm
Length:400~880mm
