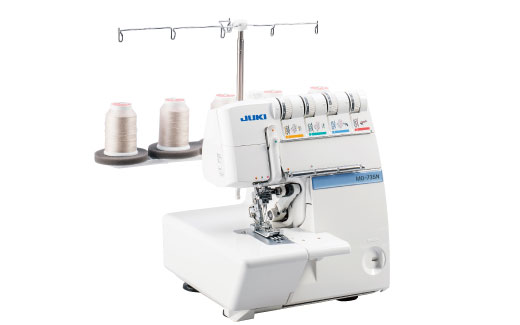

MO-735N

MO-735N

2-Needle, 2/3/4/5-Thread Overlock Machine with Cover Stitch and Chain Stitch

タブコンテンツ1(オレンジ線下から)

Easily change from overlock to cover stitch!

You can easily switch from overlock to cover stitch.

上画像

Overlock settings

上画像

Cover stitch settings

Supports all basic stitch patterns

Cover Stitch

Perfect for various applications, such as simple hems, sleeve cuffs and necklines. Because the stitching stretches, it is ideal for stretch fabrics.

上画像

4-Thread Cover Stitch

上画像

3-Thread Cover Stitch (wide)

上画像

3-Thread Cover Stitch (narrow)

Chain Stitch

Because the lower thread forms a chain on the wrong side of the fabric, the stitch is strong when it is stretched, making it ideal for stitching the waist and side seams of pants. It also does well as decorative stitching for necklines.

右画像

Chain Stitch

Overlock Stitches

右画像

5-Thread Safety Stitch

This is the stitch type that combines 3-thread overlock and chain stitch. This stitch type produces durable seams and is frequently used for joining sides of shirts, for example.

右画像

4-Thread Overlock

Uses 2 needles and 4-threads to securely sew together knitted fabrics.

右画像

3-Thread Overlock

This basic stitch prevents fabric from fraying.

右画像

3-Thread Rolled Hem

The fabric edge is rolled, then covered with thread.

右画像

3-Thread Narrow Overlock

The fabric edge is rolled, then sewn with very narrow overlocking.

右画像

Frill 3-Thread Rolled Hem with Diff. Feed

Uses 3-thread rolled hemming and the differential feed on stretch fabrics to create richly designed pieces.

右画像

3-Thread Flatlock

This stitch type is used to accentuate clothing, interior goods and small articles.
Since lace thread and wool yarn can be used for sewing the decorative part (as upper looper thread), this seams serve as unique design element of the work.

右画像

2-Thread Overcast

Simply sew fabric edges with 2 threads to prevent fraying.
*2-thread converter is included.

Packed with many useful functions!

Cover Stitch Variation

Stitch width can be selected.
For the 4-thread cover stitch, stitch width is 5mm.
For the 3-threadcover stitch, stitch width is 5 mm (wide) or 2.5 mm (narrow).

右画像

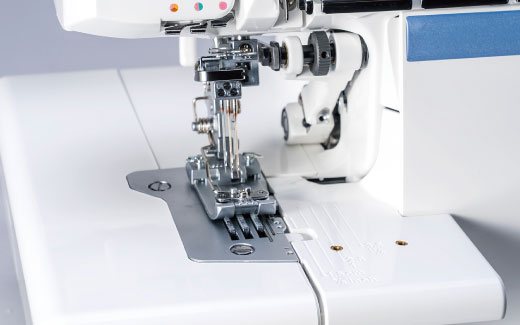

Upper knife releasing system and the auxiliary bed for cover stitch/chain stitch.

Auxiliary bed provided with a scale that serves as a material edge guide and is helpful for sewing.
For cover stitch or chain stitch, the auxiliary bed that is helpful for sewing should be installed. In this case, the upper knife can be released to provide a wider work space.

右画像

Release of the Presser Foot Pressure (Standard Presser Foot)

When sewing cover stitch, uneven material feed can be effectively reduced by releasing the standard presser foot pressure.
The presser foot pressure is minimized by tilting the presser foot pressure release lever to the rear.

右画像

Presser Foot Lifter

The presser foot is higher at its tip in order to allow the fabric to easily be inserted at the start of sewing. In addition, raising the presser foot lifter to the first position raises the presser foot 6 mm.
Further raising the presser foot lifter raises the front of the foot is automatically lifted. This allows you to easily insert thick layers of fabric, for example, when attaching ribbing, under the presser foot.

右画像

Adjustable Stitch Length/Differential Feed

Stitch length can be adjusted externally with ease even during sewing by means of the stitch length adjustment dial .
Elastic materials such as knit fabrics and georgette can be finished beautifully by adjusting the differential feed adjustment knob.
Differential feed can be adjusted even during sewing.

右画像

(Up) Stitch length adjustment dial
(Down) Differential feed adjustment dial

右画像

Stretchy fabrics

Materials that stretch easily such as knit fabrics can be finished beautifully using shirring stitch.

右画像

Crinkly fabrics

Materials that are likely to cause stitch gathering can be finished beautifully using stretching stitch.

Other Useful Features

右画像

Lay-in Type Thread Tension Slots

Simply raising the presser foot and passing thread straight through the slot threads the tension disc.
Even thick thread is easy to thread.

右画像

Slit-Type Molded Looper Threading Paths

Since troublesome threading of the thread take-up lever is no longer required, the machine head can be threaded with ease only by passing the thread along the groove.

右画像

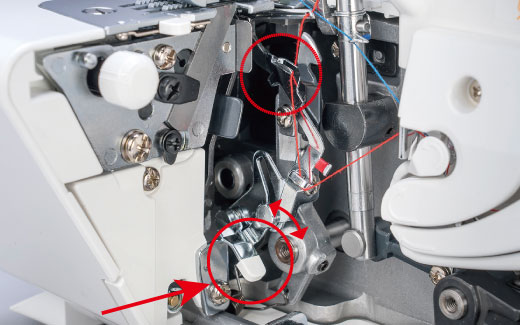

Lower Looper Threader

Threading the lower looper can easily be done by operating a lever.

右画像

Automatic Rolled Hemming

Simply pulling a lever toward you easily switches the machine to rolled hemming.

右画像

Threading of the Chain Stitch Looper

The looper can easily be threaded since it can be lowered at the press of a button.

右画像

LED Light

The workspace is brightly illuminated. The long-life, energy-efficient lights will not heat up, even after a long period of use.

右画像

Accessory Storage

Accessories such as tweezers and a small screwdriver can be stored inside the looper cover.

Other Features

● 3-step adjustment of the presser foot pressure
● Exterior thread cutter
● Safety mechanism that prevents the machine from running even when you depress the foot controller with the looper cover left open

タブコンテンツ1(オレンジ線上まで)
タブコンテンツ2(オレンジ線下から)

SPEC / ACCESSORIES

Dimensions 300 (W) x 260 (D) x 290 (H) mm
Weight 9.0kg
Sewing speed Max. 1,500spm
4-Thread overlock
3-Thread overlock
2-Thread overcast
Rolled hem
Narrow overlock
Frill 3-thread rolled hem with diff. feed
3-thread flatlock
Interlock
Chain stitch
4-Thread cover stitch
3-Thread cover stitch
Number of needles 1/2/3 Needles
Needle SCHMETZ 130/705 H or JLx2
Number of threads 2/3/4/5 Threads
Differential feed ratio 0.7-2.0 Ratio
Easy threader -
Lower looper threader
TWA (Tweak Width Adjustment) -
Presser foot pressure adjustment 3 steps adjustment
Micro-lifter -
Automatic rolled hemming Automatic rolled hemming lever
Retractable upper knife
2-Thread converter
Thread cutter
Ajusting cutting width
Safety design
Light LED
Presser foot lift (1 step/2 steps) 6mm + front up
Stitch length 1-4mm
Stitch width (Standard)
Left needle: 7-9mm
Right needle: 5-7mm
Rolled hem: 2mm
Chain needle (right needle): 10-12mm
Cover stitch: 2.5/5mm

(For limited area, /CE/CE5/SAA/IT)
Left needle: 5-7mm
Right needle: 3-5mm
Rolled hem: 2mm
Chain needle (right needle): 8-10mm
Cover stitch: 2.5/5mm
Magnet Needle Tray -
Waste collector
Knee Lifting Lever -
Operation support YouTube
Accessories Needle set 130/705H(SCHMETZ)
Small screwdriver
Tweezers
Upper looper converter
Needle threader
Brush/Needle inserter
Electronic foot control
Oiler
Nets
Lower knife
Spool caps
Accessory bag
Dust cover
Large screwdriver
Cover/chain stitch extension plate
Cover stitch presser foot
Waste collector
Spool holder
Needle set JLx2 (3xNo.80)
Instruction manual

OPTIONAL PARTS

Blind Stitch Presser Foot

Blind Stitch Presser Foot

Universal Blind Stitch Presser Foot

Universal Blind Stitch Presser Foot

Elasticator Presser Foot

Elasticator Presser Foot

Cording Presser Foot

Cording Presser Foot

Beading Presser Foot

Beading Presser Foot

Curved Beading Presser Foot

Curved Beading Presser Foot

Piping Presser Foot

Piping Presser Foot

Gathering Presser Foot

Gathering Presser Foot

Hemmer guide (for cover stitch)

Hemmer guide (for cover stitch)
