MO-2800
Air Threading Technology Made Simple
2-Needle, 2/3/4-Thread Overlock with Easy Threader and Differential Feed
Newly enhanced, user-friendly serger that achieves the ideal of sewing.
Easy and fast threading!
Easy Threader (Upper/lower looper threads)
Using the easy threader feature, easily thread the machine from the threading hole to the looper with the power of a strong whoosh of air sent from the electric motor.
This amazing function makes it fast and easy when threading the upper and lower looper.
Insert 1 to 2 cm of thread.
Press the air-control pushbutton.
And you’re done! The machine was simply threaded by air.
Easily thread the machine from the threading hole to the looper.
Automatic Needle Threader(Right/left needle threads)
Even for the needle thread, sewing machine users may want quick threading! With the automatic needle threader, threading is a breeze!
Lower the threading lever.
Hook the thread.
Return the lever to finish threading.
Inner curves of the material can be sewn beautifully.
The distance between the knife and the needle is 9.95 mm, that is the industry's smallest level of the knife-to-needle distance.
With the supplied curve foot, you can handle the curved portions of the material smoothly and produce beautifully finished seams.
Easy Roll Hemming【NEW】
Thread tension that is suitable for roll hemming can be obtained only by lifting the roll hemming thread tension lever.
Simply raise the selection lever for overlock or roll hemming and set the cutting width adjusting dial to 2.5 to 3.5 allow the sewing machine to perform roll hemming.
Adjustable Differential Feed
Differential feed adjustment dial
Even with easily stretched fabrics such as knits and georgette, create beautifully sewn finishes by adjusting the differential feed. Adjustments can even be made while sewing.
Knee Lifting Lever【NEW】
The presser foot can be moved up and down without using your hands. The presser foot can be lifted to 6 mm at the maximum to ensure easy placement and removal of the material.
※The maximum height of the presser foot with the hand lifter is 8 mm.
Magnet Needle Tray【NEW】
This tray is useful as a place to temporarily put a needle when changing over the sewing method from the 2-needle sewing to 1-needle sewing, or when changing the needle. (Two locations; on the right and left sides of the machine head)
Other Useful Features
Wide Throat Area
The height of the throat is 68mm. Due to this height, the usability of the work space improved infinitely.
Quiet Operation
The sound reducing design minimizes the operating noise and the unit sews with less vibration.
2-/3-Thread Conversion
Switch to 2-thread sewing simply by pushing the 2-/3-thread changeover attachment to the left, making this operation even easier.
TWA (Tweak Width Adjustment)
*JUKI Exclusive
This sewing machine is provided with the patented TWA mechanism.
With the TWA, it is possible to easily correct an excess thread and fabric curling during overcasting.
Multi-Purpose Foot
Since the standard presser foot has a hole for attaching a tape, the sewing machine is able to sew the material while inserting the stay tape.
Waste Collector
Provided as a standard accessory, the waste collector catches cut-off fabric and is useful for keeping the area tidy.
•Adjustable presser foot pressure
•Option to deactivate upper knife
•Safety feature preventing operation when the presser foot is upper position or the cover is
open.
•Thread trimming blade for easy thread cutting
タブコンテンツ2（オレンジ線下から）
SPEC / ACCESSORIES
| Dimensions | 350 (W) x 310 (D) x 340 (H) mm |
| Weight | 10.0kg |
| Sewing speed | Max. 1,500spm |
| 4-Thread overlock | ✓ |
| 3-Thread overlock | ✓ |
| 2-Thread overcast | ✓ |
| Rolled hem | ✓ |
| Narrow overlock | ✓ |
| Frill 3-thread rolled hem with diff. feed | ✓ |
| 3-thread flatlock | ✓ |
| Interlock | - |
| Chain stitch | - |
| 4-Thread cover stitch | - |
| 3-Thread cover stitch | - |
| Number of needles | 1/2 Needles |
| Needle | SCHMETZ 130/705 H or JLx2 |
| Number of threads | 2/3/4 Threads |
| Differential feed ratio | 0.7-2.0 Ratio |
| Easy threader | ✓ |
| Lower looper threader | - |
| TWA (Tweak Width Adjustment) | ✓ |
| Presser foot pressure adjustment | Stepless adjustment |
| Automatic rolled hemming | Automatic rolled hemming lever / Roll hemming thread tension lever |
| Retractable upper knife | ✓ |
| 2-Thread converter | ✓ |
| Thread cutter | ✓ |
| Ajusting cutting width | ✓ |
| Safety design | ✓ |
| Light | 2 LED lights |
| Presser foot lift (by lever / by knee lifter) | By lever 6/8mm, by knee lifter 6mm |
| Stitch length | 0.7-4mm |
| Stitch width | Left Needle：5-7.5mm Right Needle：3-5.5mm Rolled Hem：2mm |
| Magnet Needle Tray | Two locations; on the right and left sides of the machine head |
| Waste collector | ✓ |
| Knee Lifting Lever | ✓ |
| Operation support | Youtube |
| Accessories | Electronic foot control Knee lifter lever Waste collector Accessory bag Curve foot Nets Wool needle Looper threader Needle set 130/705H(SCHMETZ) Screwdriver T-shape screwdriver Spool caps Tweezers Brush/Needle inserter Oil Dust cover Instruction manual |
OPTIONAL PARTS
Blind Stitch Presser Foot
Universal Blind Stitch Presser Foot

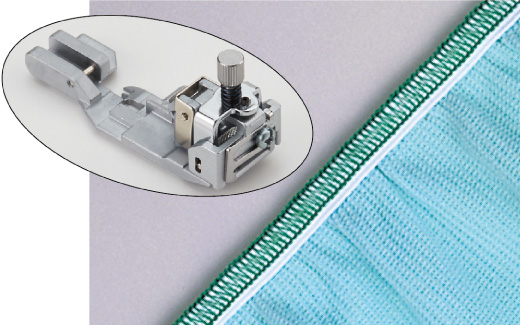

Elasticator Presser Foot
Cording Presser Foot
Beading Presser Foot
Curved Beading Presser Foot
Piping Presser Foot
Gathering Presser Foot
Clear Presser Foot
Tractor Presser Foot
Wide Table
タブコンテンツ3（オレンジ線下から）
STITCH PATTERNS
4-Thread Overlock
Uses 2 needles and 4 threads to securely sew together knitted fabrics.
3-Thread Overlock
This basic stitch of overlock machines prevents fabric from fraying.
2-Thread Overcast
Simply sew fabric edges with 2 threads to prevent fraying.
3-Thread Rolled Hem
The fabric edge is rolled, then covered with thread.
3-Thread Narrow Overlock
The fabric edge is rolled, then sewn with very narrow overlocking.
Frill 3-Thread Rolled Hem With Diff. Feed
Uses 3-thread rolled hemming and the differential feed on stretch fabrics to create richly designed articles.
3-Thread Flatlock
Use this stitch as an accent on clothes, interior items and accessories.
