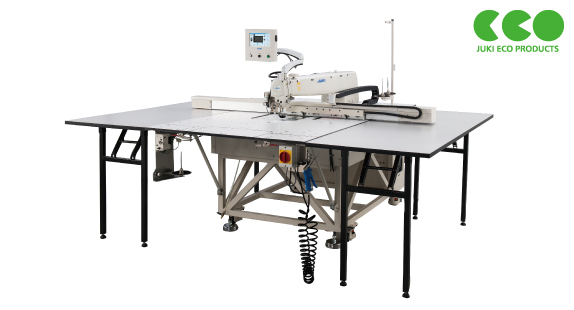

Pattern seamer
(X:1,200mm × Y:700mm)

This is a pattern seamer provided with JUKI’s first exclusive machine head. It is able to carry out pattern sewing of large products with flexibility.

Product overview

Product features

  • Increased productivity

    With this sewing machine, quilting and runstitching processes for sewing down jackets and winter sportswear can be carried out only with one setup operation. Conventionally regular-interval topstitches have been sewn with a lockstitch machine and the seam quality varies according to the operator's skill. Now, with the PS-700, regular-interval topstitches of stable quality can be sewn without depending on the operator's skill, thereby contributing to substantially increased productivity.

  • Active tension

    The machine has achieved the industry's highest jump speed of 800 mm/s.
    Active tension has been introduced to the needle thread tension controller. Since the needle thread tension is reproducible, supporting a broader range of sewing conditions, the time required for setup changing upon process changeover can be reduced.

Basic performance

  • Excellent quality

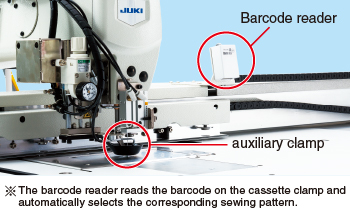

    The auxiliary clamp holds down the template and material, thereby securely holding the material being sewn. The PS-700 has adopted the guide rail feed mechanism which feeds the template while clamping it with its guide rail. This mechanism demonstrates higher feed accuracy in comparison with the roller feed mechanism, thereby improving seam quality.

Specification

Model name PS-700
Maximum sewing speed 3,000sti/min*
Jump speed 800mm/s

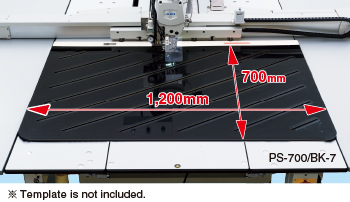

Possible sewing area Width (X) 1,200mm × Length (Y) 700mm
Stitch length 0.1 - 12.7 mm (in increments of 0.1mm)
Needle bar stroke 39.8mm
Needle thread tension Active tension (computer-controlled thread tension control mechanism)
Needle DB×1 (#9 to #16)
Hook Full-rotary double-capacity hook
Memory medium USB thumb drive
Storage of pattern data Memory in the main body:Max. 60,000 stitches; 999 patterns (Max. 60,000 stitches per pattern)
External memory (128 MB) Max. 999 patterns (Max. 60,000 stitches per pattern)

*"sti/min" stands for "Stitches per Minute."

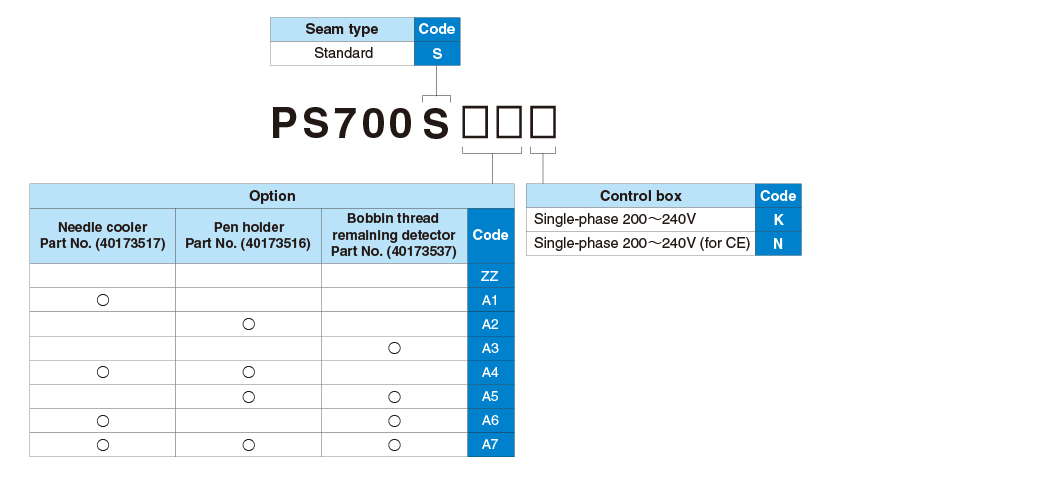

When you place orders

Gauge

PS-700

Guage NEEDLE HOLE GUIDE INTERMEDIATE PRESSER B
Figure
Needle size used P/N Remarks P/N Remarks
#9~#11 40186575 Φ1.6 B1601210D0BA Φ2.7
#14~#16 40186576 Φ2.0 B1601210D0CA Φ3.5
Guage:OP NEEDLE COOLER ASM. PEN STICH ASM. THREAD DETECT ASM. NEEDLE HOLE GUIDE INTERMEDIATE PRESSER B INTERMEDIATE PRESSER C
Figure
P/N 40173517 40173516 40173537 40186575 40186576 B1601210D0BA B1601210D0CA
Remarks - - - Φ1.6 Φ2.0 φA×φB×H×L Φ2.7×Φ4.1×5.7×38.5 φA×φB×H×L Φ3.5×Φ5.5×5.7×38.5
