TL-2200QVP Mini
TL-2200QVP Mini is a single needle, lock-stitch, portable sewing machine, constructed of aluminum die-casting to ensure industrial-quality sewing.
Sub Tension Unit
No matter the thread type, sub-tension ensures stitches are sewn with a balanced thread tension. Achieve Perfectly balanced threads with every stitch.
Strongly twisted threads can make for unruly stitches. (above)
Sub-tension creates steady stitches by preventing return of twist of threads. (below)
Maximum Sewing Speed Control
Easily control your sewing speed from 200 to 1,500 SPM with the adjustable slide. This will give you complete control of your sewing speed in both piecing and free motion quilting.
Automatic Needle Threader
The automatic needle threader quickly and easily threads the needle without eyestrain, allowing you to change thread colors as often as you wish.
Larger Work Area
With a large work area of up to 23 inches (with auxiliary table attached), the TL-2200QVP Mini can handle large quilts with ease.
Useful Accessories for Quilting
1/4" or 7mm Presser Foot
Creates even 1/4 inch or 7mm seams for perfect piecing.
Even Feed Foot
Powerfully feeds multiple fabric layers from both top and bottom without shifting.
Quilt Guide for Even Feed Foot
Measures rows for evenly spaced quilt lines.

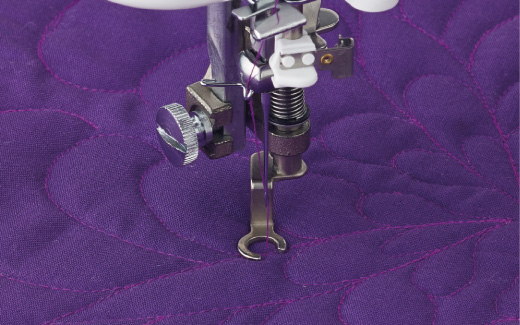

Quilting Foot Front Open Toe
Allows for more visibility during free motion quilting.

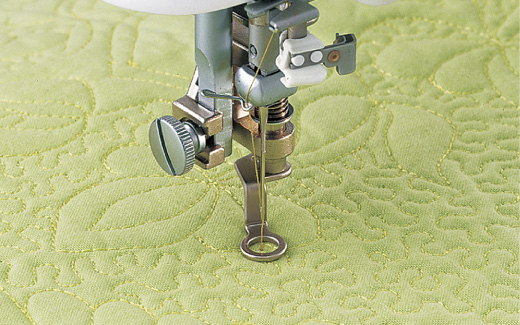

1/5" Quilting Foot
Use for free motion quilting to glide smoothly and evenly over fabric layers.

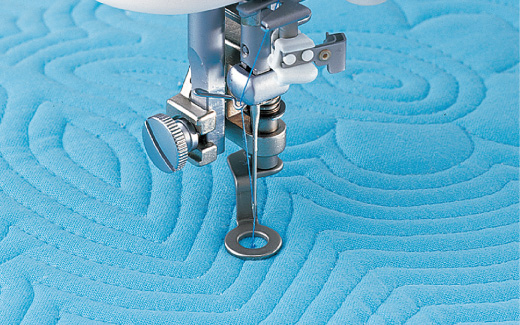

1/4" Quilting Foot
Create equally spaced free motion quilting lines, perfect for echo quilting.
Other Features
Foot Controller with thread trimming function
It is possible to automatically trim both needle and bobbin threads by pressing the heel side of foot controller.
The thread trimming function can be disabled by attaching a Foot Switch Stopper to the controller.
Automatic Thread Trimmer
With your automatic thread trimmer you can trim both the needle and bobbin threads simultaneously as desired.
Enjoy the same thread trimming mechanism as many of our Juki Industrial Sewing Machines.

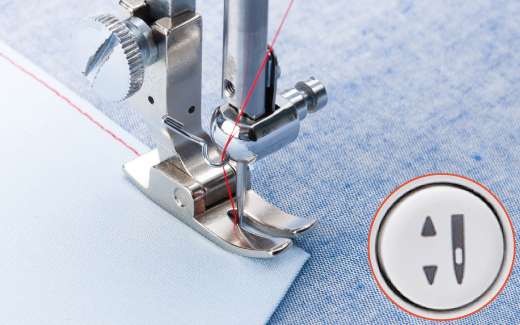

Needle Up/Down Control
Change the needle position to up or down as desired by simply pressing the up/down needle button. When the button is pressed continuously, the machine will sew stitch by stitch.
Knee Lifter Lever
The knee lifter lever allows you to lift/lower the presser foot without using your hands. The presser foot can be raised as high as 12mm.
Thread Tension Scale
The machine also has the thread tension scale, which allows you to adjust the tension according to the thread and material to be used.
Presser Foot Pressure Adjustment
Presser foot pressure may be adjusted to accommodate different fabric thickness by turning the regulator dial located on the top of the machine.
LED Light
LED light brightens the needle area for better material handling.
Horizontal-axis Full-rotary Hook
Create perfectly balanced stitches for beautiful seams. Bobbin thread tension is also adjustable.
Drop Feed
The feed dog may be raised or lowered by simply adjusting the switch. Lowering the feed dog allows you to free motion quilt in any direction with precision and ease.
Needles
The machine is supplied with HA-type needles, the identical type used with home sewing machines and home sergers. This type of needle cannot be attached incorrectly.
The Machine is Light-Weight and Portable
This portable, lightweight machine is easy to transport and can be carried wherever you desire.
Industrial Machine Engineering
The arm and bed of the TL-2200QVP Mini are constructed of aluminum die-casting. This tough body lowers vibration while sewing and ensures high quality stitching. Since theTL-2200QVP Mini has many industrial sewing machine features, it is possible to attach several types of industrial presser feet. (For more details, please contact the dealer near you.)
タブコンテンツ2（オレンジ線下から）
SPEC / ACCESSORIES
| Dimensions | 452(W) x 350(H) x 219(D)mm |
| Arm size | 215(W) x 150(H)mm 8.5"(W) x 6"(H) |
| Auxiliary table dimensions | 590(W) x 335(D)mm 23"(W) x 13"(D) |
| Dimensions with auxiliary table | 720(W) x 335(D)mm |
| Weight | 11.9kg / 26.2Lb |
| Sewing speed | Min. 55 - Max. 1,500SPM |
| Needle | HAx1(130/705H)/ HLx5 #9-#18 |
| Auto thread trimming | ✓ |
| Thread cutter | ✓ |
| Speed control knob | ✓ |
| Automatic needle threader | ✓ |
| Thread tension dial scale | ✓ |
| Sub tension unit |
✓ |
| Needle stop position | Down |
| Needle up/down &Low-speed inching sewing button | ✓ |
| Drop feed | ✓ |
| Presser foot pressure adjustment | Stepless adjustment |
| Float function(micro-lifter) | - |
| Presser foot lift (1 step/ 2 steps) | By lever 7/9mm, by knee lifter 12mm |
| Stitch length | 0 - 6 mm |
| Light | LED |
| Type of hook | Horizontal-axis Full-rotary Hook |
| Bobbin case | Bobbin case with bobbin hold/removal function by latch |
| Attachment mounting plate | - |
| Foot controller | ✓ with thread trimming function |
| Auxiliary table | ✓ |
| Knee lifting lever | ✓ |
| Accessories (presser feet) |
Standard presser foot Hemming foot Zipper attaching foot Compensating foot (right 1/4"or 7mm) 1/4" Presser foot or 7mm presser foot Even feed foot 1/5" Quilting foot 1/4" Quilting foot Quilting foot front open toe |
| Other accessories | Quilt guide for even feed foot Bobbins (4) Needles (HAx1) Foot controller Foot switch stopper Auxiliary table Knee lifter lever Sewing machine cover Power cord Exclusive screwdriver Screwdriver (small) Oiler Spool cap Cleaning brush Instruction manual |
OPTIONAL PARTS

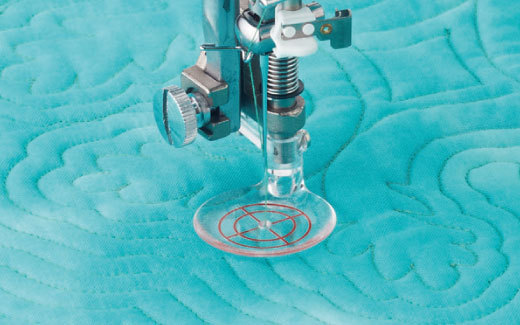

1/4" Quilting Foot (for Ruler)
Echo Quilting Foot
Quilting Foot Side Open Toe
Free Motion Table
タブコンテンツ3（オレンジ線下から）
SEWING SAMPLES
Quilt tapestry
Quilt cushion cover
Quilt bed cover
