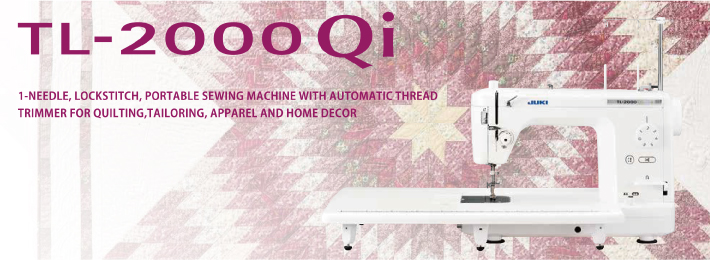

TL-2000Qi

TL-2000Qi

1-Needle, Lockstitch, Portable Sewing Machine
with automatic thread trimmer for quilting, tailoring, apparel and home decor

タブコンテンツ1(オレンジ線下から)

Foot Controller with Thread Trimming Function

It is possible to automatically trim both needle and bobbin threads by pressing the heel side of foot controller. The foot controller is big enough and it is easy to control sewing-start and -stop.

Foot Controller with Thread Trimming Function

LED Light

LED light brightens the needle area for better material handling.

LED Light

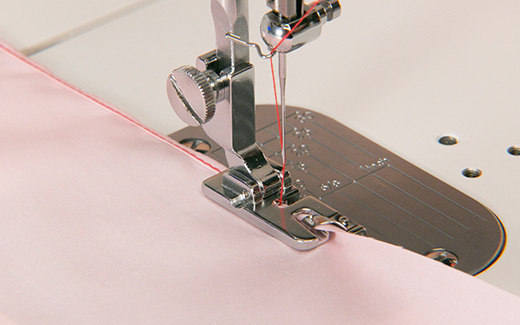

Automatic Thread Trimmer

The machine is equipped with an automatic thread trimming device that simultaneously trims the needle and bobbin threads at the sewing end by lightly pressing the push-button. It uses the thread trimming mechanism that is similar to the industrial sewing machine type, trimming thin through thick threads without fail. Auto thread trimming may also be activated by the foot controller.

Automatic Thread Trimmer

Other Features

Automatic Needle Threader

Automatic Needle Threader

The push lever automatic needle threader easily threads the needle without eyestrain and allows you to start sewing quickly.

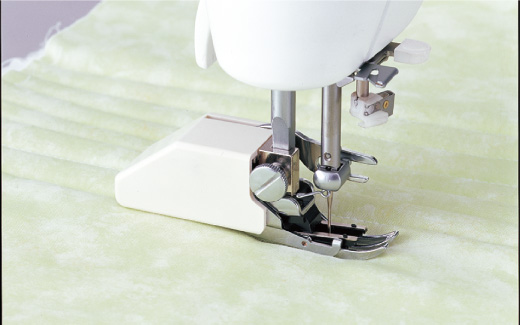

Even Feed Foot

Even Feed Foot

With its reliable feed, the even feed foot ensures the machine's ability to produce beautiful seams when sewing difficult-to-feed fabrics such as georgette and velvet, as well as heavy weight materials such as leather. The even feed foot is ideal for sewing multiple layers of fabric evenly.

Heavy-Weight Materials are sewn with Ease

Heavy-Weight Materials are sewn with Ease

The speed control mechanism, operated by microcomputer, allows the machine to sew materials at low speeds. This provides for accurate feed and perfect stitching when sewing heavy weight fabrics, quilting and multiple layers of materials.

Knee Lifter Lever

Knee Lifter Lever

The knee lifter lever allows you to lift/lower the presser foot without using your hands. The presser foot can be raised as high as 12mm, so that light to heavy weight materials are easily handled in and out of the sewing area with ease.

Predetermined Stop Position of the Needle

When you stop sewing, the machine will come to an accurate stop with the needle down. To move the needle up or down as desired, simply press the needle up/down button. When the button is pressed continuously, the machine sews stitch by stitch at low speed.

Easy Bobbin Replacement

Easy Bobbin Replacement

A new bobbin case latch and an enlarged bobbin case area make it easier to remove and replace the bobbin. When the auxiliary table is being utilized, it is equipped with a sliding plate that allows convenient access to remove and load bobbins as well.

Adjustment of Presser Foot Pressure

Presser foot pressure can be adjusted according to the fabric being sewn by turning a regulator located on the top of the machine. The pressure amount can then be viewed at a pressure indicator.

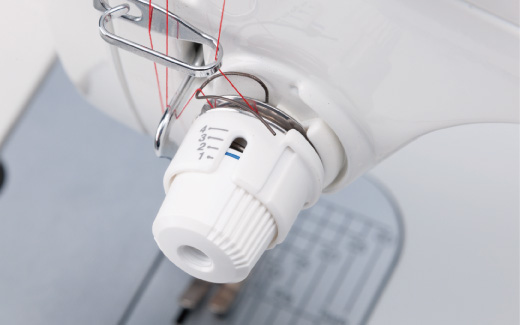

Thread Tension Scale

Thread Tension Scale

The machine is provided with the thread tension scale, which allows you to adjust the tension according to the thread and material to be used.

Quilting Foot / Drop Feed

Quilting Foot / Drop Feed

The quilting feet are designed for free motion quilting and free-hand embroidery. 1/5" Quilting Foot is supplied as standard accessory part with the machine for basic quilting. 1/4" Quilting Foot is available as optional part for precision sewing with 1/4" inch stitch width. The feed dog can be raised and lowered simply by turning the lever. When quilting, the drop feed allows you to sew curved stitches with ease.

Needles

The machine is supplied with HA-type needles, the identical type used with home sewing machines and home sergers. This type of needle cannot be attached incorrectly.

Larger Work Area

The machine has a wider handling area than a conventional sewing machine adding space to maneuver large size materials or rolls of quilting fabric. An auxiliary table is supplied for extending the work area for quilting and larger sewing projects.

The Machine is Light-Weight and Portable

This portable, lightweight machine is easy to transport and can be carried wherever you desire.

Industrial Machine Engineering

The arm and bed of the TL-2000Qi are constructed of aluminum die-casting. This tough body lowers vibration while sewing and ensures high quality stitching. Since the TL-2000Qi has many industrial sewing machine features, it is possible to attach several types of industrial presser feet. (For more details, please contact the dealer near you.)

タブコンテンツ1(オレンジ線上まで)
タブコンテンツ2(オレンジ線下から)

SPEC / ACCESSORIES

Dimensions 452(W) x 350(H) x 219(D)mm
Arm size
215(W) x 150(H)mm
8.5"(W) x 6"(H)
Auxiliary table dimensions 590(W) x 335(D)mm
23"(W) x 13"(D)
Dimensions with auxiliary table 720(W) x 335(D)mm
Weight 11.5kg / 25.4Lb
Sewing speed Min. 55 - Max. 1,500SPM
Needle HA x 1 (130/705H)/ HL x 5 #9-#18
Auto thread trimming
Thread cutter
Speed control knob -
Automatic needle threader
Thread tension dial scale
Sub tension unit -
Needle stop position Down
Needle up/down &Low-speed inching sewing button
Drop feed
Presser foot pressure adjustment Stepless adjustment
Float function(micro-lifter) -
Presser foot lift (1 step/ 2 steps) By lever 7/9mm, by knee lifter 12mm
Stitch length 0 - 6 mm
Light LED
Type of hook Horizontal-axis Full-rotary Hook
Bobbin case Bobbin case with bobbin hold/removal function by latch
Attachment mounting plate -
Foot controller ✓ with thread trimming function
Auxiliary table
Knee lifting lever
Accessories
(presser feet)
Standard presser foot
Even feed foot
Other accessories Bobbins (4)
Needles (HAx1)
Foot controller
Auxiliary table
Knee lifter lever
Sewing machine cover
Power cord
Exclusive screwdriver
Screwdriver (small)
Oiler
Spool cap
Cleaning brush
Instruction manual

OPTIONAL PARTS

Hemming foot

Hemming foot

Echo Quilting Foot

Echo Quilting Foot

1/4" Quilting foot

1/4" Quilting foot

タブコンテンツ2(オレンジ線上まで)
タブコンテンツ3(オレンジ線下から)

SEWING SAMPLES

Quilt tapestry

Quilt tapestry

Quilt cushion cover

Quilt cushion cover

Quilt bed cover

Quilt bed cover
