EB-1

Buttonholer EB-1

The only computerized buttonholer choice for the semi-industrial sewing machine in the industry

COMPATIBLE MODELS

TL-98Haruka TL-18QVP
TL-2000QiTL-2020PE
TL-2010QTL-15
TL-2200QVP Mini



タブコンテンツ1(オレンジ線下から)

Add Value to Your Semi-Industrial Sewing Machine

中央画像

Discover the ultimate sewing dream team for your home!

With the powerful JUKI TL semi-industrial sewing machine, the fantastic MO overlock serger, and the incredible EB-1 buttonhole device, you’ll achieve professional-quality stitching that will bring joy to your crafting endeavors!

画像

画像

Beautiful Buttonhole Stitch

Seamlessly Stitch Buttonholes With No Jamming!

EB-1 stitches buttonhole patterns by moving the presser frame with material. You can rotate the pattern by 90 degrees in 4 different directions on a X and Y axis. This way, you can stitch vertical and horizontal buttonholes. In addition, sew buttonholes dense fabric with ease since no jamming happens. Achieve perfect a buttonhole stitch every time!

上画像

上画像

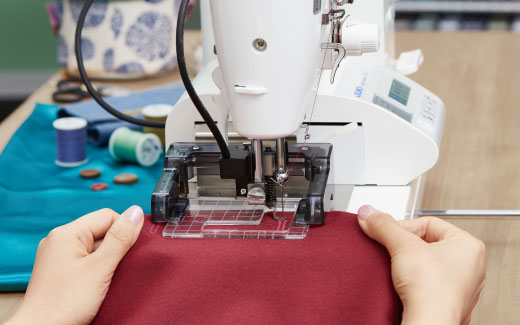

Easy-to-Use Clear Presser Frame

This 1 cm grid lets you easily set the sewing project for both X and Y axis. In addition, the clear presser frame easily allows you to place your starting T-position and check the mark on your favorite to sew accurate buttonholes.

上画像

You can easily adjust the starting T position

上画像

1cm grid lets you easily set the sewing object for both XY axis

Computerized Buttonhole Device

The EB-1 is a computerized buttonhole device that enables you to select from various buttonhole stitch patterns and other detailed settings.

上画像

Rich buttonhole stitch pattern and detailed setting

上画像

Buttonhole Size is Optimized for Each Type of Button

5mmー32mm Button Diameter Setting

By inputting the diameter of button in 1mm increments, you stitch the appropriate buttonhole automatically. The EB-1 is capable of stitching buttonhole sizes from 5mm to 32mm.

上画像

Buttonhole sizes from 5mm to 32m

上画像

5mm is the minimum buttonhole size.

Zigzag Width

Set the value to fit the size of the button.
For bartacking select from 3 to 7mm and for eyelet select from 6 to 7mm.

上画像

Knife Width

You can adjust the knife width in accordance with the button thickness.

上画像

Flexible Seam Volume

Control Density with Stitch Length

上画像

With a short stitch length, you can achieve a higher stitch density.

*Setting Value
0.3、0.4、0.6、0.8、1.0、1.2、1.4、1.6、1.8(mm)

上画像

Increase the length of the stitch to achieve reduce density for decorative buttonholes.

Sewing Volume Setting

You can choose a single or double stitch. With double overlapped stitching, you can achieve sewing volume.

上画像

Capable of Creating a Basting

Prevent Fabric Stretching with the Basting

When you increase the number of basting, you can stitch stretchy materials like a knit more beautifully.

上画像

Accessible Features

右画像

Four Direction Layout

Four rotation angles available including 0, 90, 180, and 270 to stitch both horizontal and vertical buttonhole.

右画像

Restart Easily When Thread Breaks

Even if the needle thread breaks, you can roll back and restart in the middle of buttonhole.

右画像

Adjustable Sewing Speed

Choose between two sewing speed: slow for turtle and fast for rabbit.

右画像

Memorize the Latest Setting

Memorize the latest setting including length, width, rotation angle and more.

Useful Accessories

右画像

Difference-in-Height Correction Plate

The difference-in-height correction plate is used when sewing buttonholes on multilayered parts of the material.

右画像

右画像

Non-Slip Sheet

The non-slip sheet can be placed on a slippery fabric so that it does not easily slip. The sheet can also be cut to adjust its length as desired.

右画像

タブコンテンツ1(オレンジ線上まで)
タブコンテンツ2(オレンジ線下から)

SPEC / ACCESSORIES

Dimensions 240 (W)× 80 (H) × 210(D)mm / 9.5” (W) x 3” (H) x 8.25” (D)
Weight 2.1kg / 5lbs
Volts / Watts / Hertz 100V / 8W  50 / 60Hz
Sewing speed 155 - 475 SPM
Material thickness 4.0mm Sewable
7.5mm with Presser Frame
Accessories Difference-in-height correction plate
Non-slip sheet
Main body fixing screw
Cord fixing holder
Installing method explanation label
AC adapter and cord
Rubber cap
Ripper
タブコンテンツ2(オレンジ線上まで)
タブコンテンツ3(オレンジ線下から)

SEWING PATTERNS
