MO-80CB

MO-80CB

2-Needle, 2/3/4 Thread overlock with Automatic Rolled Hemming and Differential Feed

タブコンテンツ1(オレンジ線下から)

【NEW FEATURE】Free Arm

Now with free arm capabilities attach sleeves, hem pants, and more!

Free Arm

Differential Feed

Adjusting the differential feed allows you to sew beautiful finishes, even with stretchy fabrics such as knits and georgette. Adjustments can even be made while sewing.
Stretchy fabrics(above), Crinkly fabrics(below)

Differential Feed

Cutting Width

Adjusting the position of the knife allows you to beautifully finish both overlock and rolled hem stitching.

Cutting Width

Foot Pressure

The presser foot pressure can be adjusted according to the fabric. Adjusting the pressure to lightweight, mediumweight or heavyweight fabrics allows you to sew beautifully.

Foot Pressure

Free Arm

Removing the auxiliary bed enables free-arm sewing. This is convenient for sewing cylindrical pieces, attaching sleeves or hemming pants.

Free arm

Simple, Convenient and Easy to Use

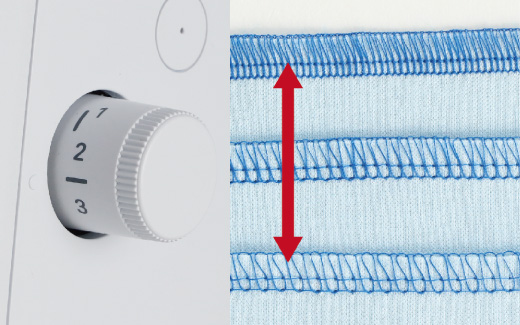

Adjustable Stitch Length

Adjustable Stitch Length

An easily accessible knob can be used to simply adjust the stitch length to between 1 and 5 mm, even while sewing.
Shorter stitch(above)
Longer stitch(below)
Max. stitch length: 5 mm

Lower Looper Threader

Lower Looper Threader

Threading the lower looper can easily be done by operating a lever.

Lay-in Type Thread Tension Slots

Lay-in Type Thread Tension Slots

Simply raising the presser foot and passing thread straight through the slot threads the tension disc. Even thick thread is easy to thread.

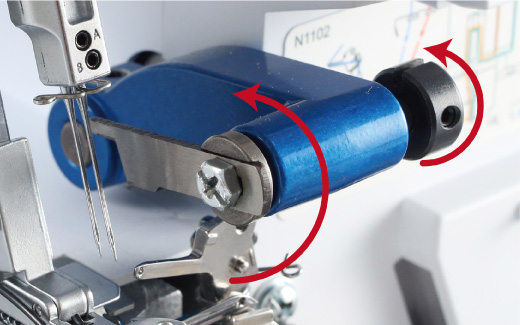

Retractable Upper Knife

Retractable Upper Knife

Since the upper knife can be raised by turning a knob, threading can be safely performed. Avoid cutting fabric by turning the knob that raises the upper knife.

2-Thread Converter

2-Thread Converter

The included 2-thread converter attachment easily converts the machine to 2-thread sewing.

Bright LED lighting

Bright LED Lighting

The workspace is brightly illuminated. The long-life, energy-efficient lights will not heat up, even after a long period of use.

Automatic Rolled Hemming

Automatic Rolled Hemming

Simply pulling a lever toward you easily switches the machine to rolled hemming.

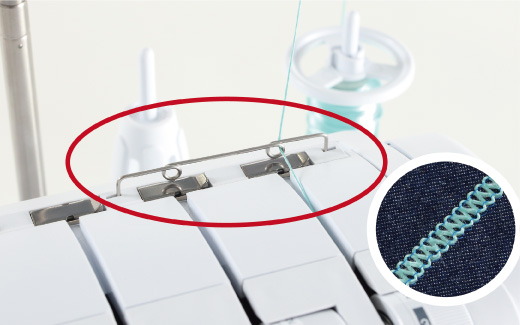

Thread Guide For Heavy Decorative Threads

Thread Guide For Heavy Decorative Threads

The thread guide for heavy decorative threads allows you to enjoy decorating your projects with thick decorative thread as the looper thread.

Waste Basket

Waste Basket

A box for collecting the scraps cut off during sewing to keep the area around the sewing machine clean at all times.

Handle

Handle

The attached handle allows you to transport the sewing machine with ease.

Accessories

Accessories

Accessories space

Tweezers, Screw driver, Brush, Needle threader, Flat blade screw driver,
Thread guide, Oiler, 2-thread converter, Thread unreeling cap (4), Spool holder (4),
Anti-spill net (4), Upper cutter, Needle set, Chip box, Dust cover

Accessories such as tweezers and a screwdriver can be stored inside the looper cover.

タブコンテンツ1(オレンジ線上まで)
タブコンテンツ2(オレンジ線下から)

SPEC / ACCESSORIES

Dimensions 308(W) x 287(D) x 311(H)mm
Weight 6.4kg
Sewing speed Max. 1,300spm
4-Thread overlock
3-Thread overlock
2-Thread overcast
Rolled hem
Narrow overlock
Frill 3-thread rolled hem with diff. feed
3-thread flatlock
Interlock -
Chain stitch -
4-Thread cover stitch -
3-Thread cover stitch -
Number of needles 1/2 Needles
Needle Elx705 #14/90, #12/80
Number of threads 2/3/4 Threads
Differential feed ratio 0.6-2.0 Ratio
Easy threader -
Lower looper threader
Presser foot pressure adjustment Stepless adjustment

Automatic rolled hemming
Retractable upper knife
2-Thread converter
Thread cutter
Ajusting cutting width
Safety design
Light LED
Presser foot lift (1 step/2 steps) 4.5mm
Stitch length 1-5mm
Stitch width Left needle: 3-7mm
Right needle: 3-5mm
Rolled hem: min. 2mm
Waste collector
Operation support DVD -
Accessories Flat blade screw driver
Thread unreeling cap (4)
Upper cutter
Anti-spill net (4)
Thread guide
Needle set
Brush
Needle threader
Screw driver
Tweezers
2-thread converter
Accessory bag
Spool holder (4)
Dust cover
Chip box
Instruction manual

OPTIONAL PARTS

Universal Blind Stitch Presser Foot

Universal Blind Stitch Presser Foot

Elasticator Presser Foot (With guide)

Elasticator Presser Foot (With guide)

Beading Presser Foot

Beading Presser Foot

Piping Presser Foot

Piping Presser Foot

Gathering Presser Foot

Gathering Presser Foot

Taping Presser Foot

Taping Presser Foot

タブコンテンツ2(オレンジ線上まで)
タブコンテンツ3(オレンジ線下から)

STITCH PATTERNS

4-Thread Overlock

4-Thread Overlock

Uses 2 needles and 4 threads to securely sew together knitted fabrics.

3-Thread Overlock

3-Thread Overlock

This basic stitch of overlock machines prevents fabric from fraying.

2-Thread Overcast

2-Thread Overcast

Simply sew fabric edges with 2 threads to prevent fraying.

3-Thread Rolled Hem

3-Thread Rolled Hem

The fabric edge is rolled, then covered with thread.

3-Thread Narrow Overlock

3-Thread Narrow Overlock

The fabric edge is rolled, then sewn with very narrow overlocking.

Frill 3-Thread Rolled Hem With Diff. Feed

Frill 3-Thread Rolled Hem With Diff. Feed

Uses 3-thread rolled hemming and the differential feed on stretch fabrics to create richly designed articles.

3-Thread Flatlock

3-Thread Flatlock

Use this stitch as an accent on clothes, interior items and accessories.
