MO-50eN

MO-50eN

2-Needle, 3/4 Thread Overlock with Automatic Rolled Hemming and Differential Feed

タブコンテンツ1(オレンジ線下から)

Adjustable Differential Feed

is easily controlled and adjusted by a dial located on the exterior, left hand side of the machine.
Stretchy fabrics(above)
Crinkly fabrics(below)

Adjustable Differential Feed

Automatic Rolled Hemming

can now be created quickly and easily with built-in fingertip control. There is no need to change the foot or plate.
Overlock (left), Rolled hem (right)

Automatic Rolled Hemming

Other Features

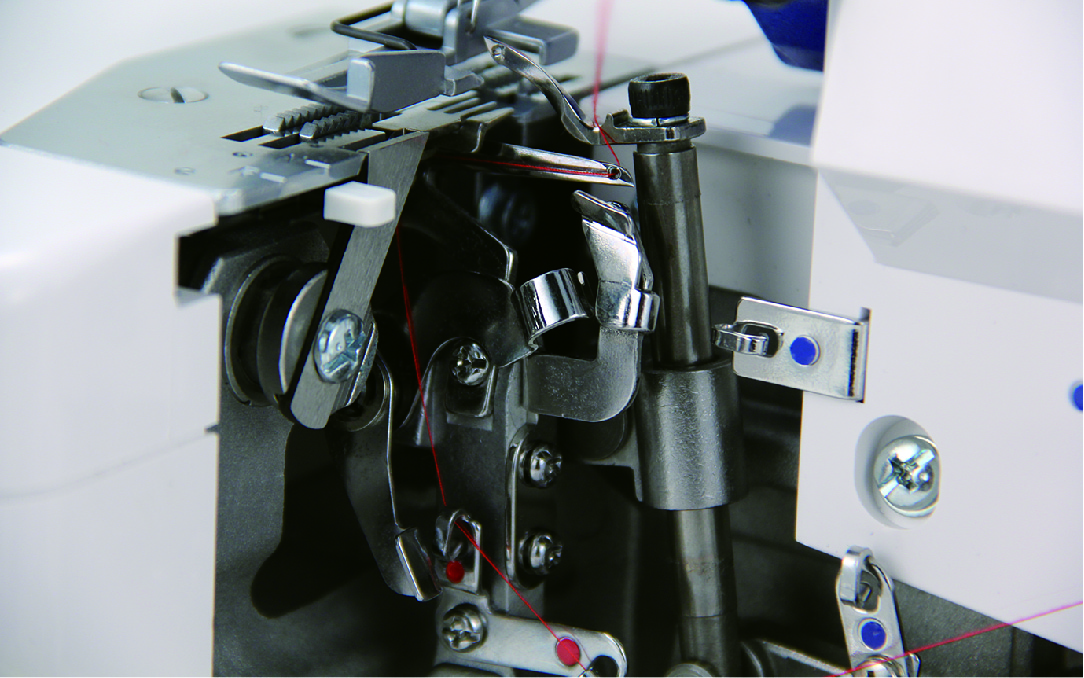

Automatic Lower Looper Threading

Automatic Lower Looper Threading

allows for easy threading in seconds― simply push the automatic threader up and then thread goes through automatically.

Retractable Upper Knife

Retractable Upper Knife

removes the upper knife so that threading is made safer and easier.

Adjustable Lower Knife

Adjustable Lower Knife

adjusts the lower knife quickly to change the width of fabric in the seam allowance, for perfect seams and rolled edges.

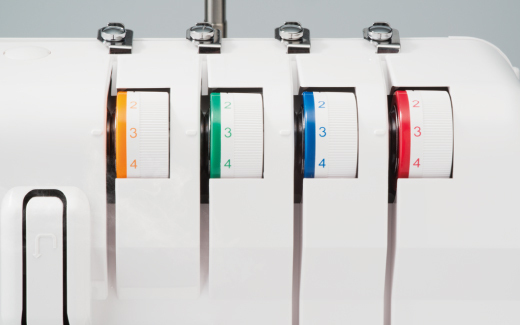

Lay-in Type Thread Tension Slots

Lay-in Type Thread Tension Slots

throughout the machine make threading easy and efficient.

Adjustable Stitch Length

Adjustable Stitch Length

turn dial is located on the exterior, right hand side within the range of 1 to 4mm.

Sewing Light

Sewing Light

Waste Collector

Waste Collector

タブコンテンツ1(オレンジ線上まで)
タブコンテンツ2(オレンジ線下から)

SPEC / ACCESSORIES

Dimensions 292(W) x 295(D) x 290(H)mm
Weight
6.7kg
Sewing speed Max. 1,300spm
4-Thread overlock
3-Thread overlock
2-Thread overcast -
Rolled hem
Narrow overlock
Frill 3-thread rolled hem with diff. feed
3-thread flatlock
Interlock -
Chain stitch -
4-Thread cover stitch -
3-Thread cover stitch -
Number of needles 1/2 Needles
Needle Elx705
Number of threads 3/4 Threads
Differential feed ratio 0.8-2.0 Ratio
Easy threader -
Lower looper threader
Presser foot pressure adjustment -
Automatic rolled hemming
Retractable upper knife
2-Thread converter -
Thread cutter -
Adjusting cutting width
Safety design -
Light Incandescent sphere
Presser foot lift (1 step/2 steps) Max. 6mm
Stitch length 1-4mm
Stitch width Left needle: 6mm
Right needle: 4mm
Rolled hem: 2mm
Waste collector
Operation support DVD
Accessories Screwdriver
Tweezers
Cleaning brush
Set of needles ELx705
Net
Spool caps
Waste collector
Hexagon wrench
Upper knife
Oiler
Foot control
Operation support DVD

OPTIONAL PARTS

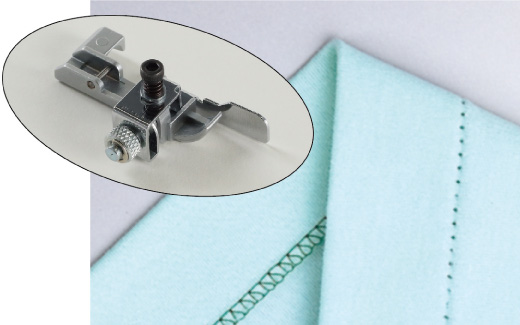

Blind Stitch Foot

Universal Blind Stitch Presser Foot

Elasticator Foot

Elasticator Presser Foot

Beading Foot

Beading Presser Foot

Piping Foot

Piping Presser Foot

Gathering Foot

Gathering Presser Foot

Taping Foot

Taping Presser Foot

タブコンテンツ2(オレンジ線上まで)
タブコンテンツ3(オレンジ線下から)

STITCH PATTERNS

4-Thread Overlock

4-Thread Overlock

Uses 2 needles and 4 threads to securely sew together knitted fabrics.

3-Thread Overlock

3-Thread Overlock

This basic stitch of overlock machines prevents fabric from fraying.

3-Thread Rolled Hem

3-Thread Rolled Hem

The fabric edge is rolled, then covered with thread.

3-Thread Narrow Overlock

3-Thread Narrow Overlock

The fabric edge is rolled, then sewn with very narrow overlocking.

Frill 3-Thread Rolled Hem With Diff. Feed

Frill 3-Thread Rolled Hem With Diff. Feed

Uses 3-thread rolled hemming and the differential feed on stretch fabrics to create richly designed articles.

3-Thread Flatlock

3-Thread Flatlock

Use this stitch as an accent on clothes, interior items and accessories.
