MO-3000QVP Akane
“Serge like a pro with JUKI!”
2-Needle, 2/3/4-Thread Differential Feed Overlock with Automatic Thread Supply and Easy Threader
Beautiful in appearance and easy to use.
This serger takes your sewing to new heights.
Thread tension adjustment and threading made easy with new features!
Automatic Thread Supply 【NEW】
The serger beautifully sews various stitch types such as overcasting and rolled hemming only by turning the stitch changeover knob to select the stitch type you want to sew. With the automatic thread supply that enables one-touch setting of thread tensions of four threads (upper and lower looper threads, right-needle thread and left-needle thread), the joy and efficiency of sewing will be greatly increased.

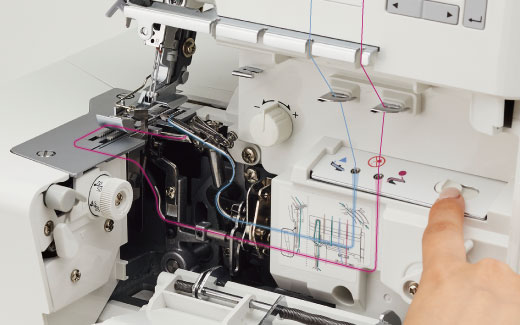

Easy Threader (Upper/lower looper threads)
Using the easy threader feature, easily thread the machine from the threading hole to the looper hole with the power of a strong whoosh of air sent from the electric motor. This amazing function makes it fast and easy when threading the upper and lower loopers.

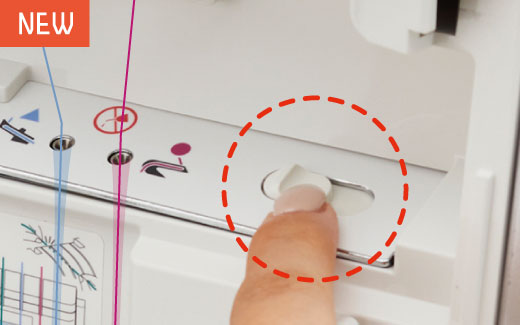

The air button has changed to switch type, making it much easier to thread the upper and lower looper!
Automatic Needle Threader(Right/left needle threads)
Even for the needle thread, serger users may want quick threading. With the automatic needle threader, threading is a breeze.
JUKI's evolving original features
Chain-off Thread Cutter 【NEW】
Chain-off thread can be cut without using a pair of scissors. In addition to the manual cutting of chain-off thread with the handy cut button or the foot switch, automatic cutting is also possible by setting the chain-off thread length.
The automatic chain-off thread cutting length can be set in 10 steps (from approximately 1 cm to 10 cm).
Micro-Lifter 【NEW】
When using the micro lifter, it is possible to carry out sewing with the presser foot lifted up to 2.5mm.Elastic materials and delicate materials can be sewn beautifully with the presser foot lifted slightly.
Micro-lifter dial
The presser foot lifted up to 2.5mm
(Left) Using the micro lifter
(Right) Not using the micro lifter
Light Control Function 【NEW】
In addition to brightness, color temperature of the LED lights can also be adjusted between daylight color and soft white color.
The LED light adjustment functions can also eliminate viewing difficulties caused by the combination of certain fabric and thread colors.
Foot Controller with Foot Switch Functions
With the ability to assign a function to the heel side of the foot controller, you can carry out half-stitch, low-speed stitch or chain-off thread cutting by depressing the heel side of the foot controller.
Easy to Change the Settings 【NEW】
The settings of the maximum sewing speed, automatic chain-off thread cutting length, color temperature of the LED lights, and the operation of the serger when operated with the foot switch can be changed with ease by means of the LCD screen and operation buttons.
Inner curves of the material can be sewn beautifully
The distance between the knife and the needle is 9.95 mm, that is the industry's smallest level of the knife-to-needle distance.
With the supplied curve foot, you can handle the curved portions of the material smoothly and produce beautifully finished seams.
KneeｰLifting Lever
The presser foot can be moved up and down without using your hands. The presser foot can be lifted to 6 mm at the maximum to ensure easy placement and removal of the material.
※The maximum height of the presser foot with the hand lifter is 8 mm.
Magnet Needle Tray
This tray is useful as a place to temporarily put a needle when changing over the sewing method from the 2-needle sewing to 1-needle sewing, or when changing the needle.
Other Useful Features
Adjustable Stitch Length/Differential Feed
Stitch length can be adjusted externally with ease even during sewing by means of the stitch length adjustment dial. Elastic materials can be finished beautifully by adjusting the differential feed adjustment dial. Differential feed can be adjusted even during sewing.

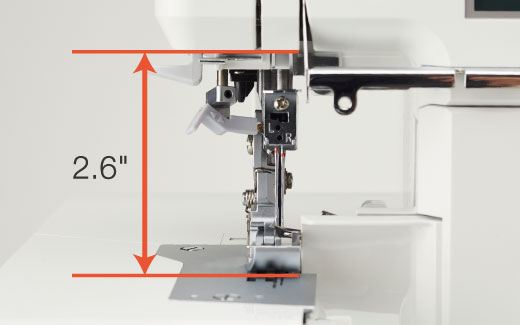

Wide Throat Area
The height of the throat is 2.6". Due to this height, the usability of the work space improved infinitely.
Bright Workspace
The workspace is brightly illuminated with LED lights mounted at two locations. The long-life and energy-efficient LED lights will not heat up even when used continuously for a long period of time.
2-/3-Thread Conversion
It is possible to change over the stitch type to 2-thread sewing by pushing the 2-/3-thread changeover attachment to the left.
Multi-Purpose Foot
Since the standard presser foot has a hole for attaching a tape, the sewing machine is able to sew the material while inserting the stay tape.
Waste Collector
Provided as a standard accessory, the waste collector catches cut-off fabric and is useful for keeping the area tidy.
Storage of Accessories
Accessories such as tweezers and a screwdriver can be stored inside the looper cover.
タブコンテンツ2（オレンジ線下から）
SPEC / ACCESSORIES
| Dimensions | 350 (W) x 310 (D) x 340 (H) mm |
| Weight | 11.2kg |
| Sewing speed | Max. 1,500spm |
| 4-Thread overlock | ✓ |
| 3-Thread overlock | ✓ |
| 2-Thread overcast | ✓ |
| Rolled hem | ✓ |
| Narrow overlock | ✓ |
| Frill 3-thread rolled hem with diff. feed | ✓ |
| 2-thread flatlock | ✓ |
| Interlock | - |
| Chain stitch | - |
| 4-Thread cover stitch | - |
| 3-Thread cover stitch | - |
| Number of needles | 1/2 Needles |
| Needle | SCHMETZ 130/705 H or JLx2 |
| Number of threads | 2/3/4 Threads |
| Differential feed ratio | 0.7-2.0 Ratio |
| Automatic thread supply system | ✓ |
| Easy threader | ✓ |
| Lower looper threader | - |
| Automatic needle threader | ✓ |
| TWA (Tweak Width Adjustment) | - |
| Presser foot pressure adjustment | Stepless adjustment |
| Micro-lifter | ✓ |
| Automatic rolled hemming | Automatic rolled hemming lever |
| Retractable upper knife | ✓ |
| 2-Thread converter | ✓ |
| Chain-off Thread Cutter | ✓ |
| Thread cutter | ✓ |
| Ajusting cutting width | ✓ |
| Safety design | ✓ |
| Light | 2 LED lights |
| Presser foot lift (by lever / by knee lifter) | By lever 6/8mm, by knee lifter 6mm |
| Stitch length | 0.7-4mm |
| Stitch width | Left Needle：5.5-7.5mm Right Needle：3.5-5.5mm Rolled Hem：2mm |
| Magnet Needle Tray | On the left sides of the machine head |
| Waste collector | ✓ |
| Knee Lifting Lever | ✓ |
| Operation support | YouTube |
| Accessories | Thread guide support Retractable support rod Electronic foot control Power cord Knee lifter lever Waste collector Dust cover Accessory bag Curve foot Nets Looper threader Needle set HA×1 No.80(No.12)×3 No.90(No.14)×2 Wool needle Screwdriver T-shape screwdriver Spool caps Tweezers Brush/Needle inserter Oil Instruction manual |
OPTIONAL PARTS
Blind Stitch Presser Foot
Universal Blind Stitch Presser Foot
Elasticator Presser Foot
Cording Presser Foot
Beading Presser Foot
Curved Beading Presser Foot
Piping Presser Foot
Gathering Presser Foot
Tractor Presser Foot
Clear Presser Foot
Wide Table
タブコンテンツ3（オレンジ線下から）
STITCH PATTERNS
4-Thread Overlock
Uses 2 needles and 4 threads to securely sew together knitted fabrics.
3-Thread Overlock
This basic stitch of overlock machines prevents fabric from fraying.
2-Thread Overcast
Simply sew fabric edges with 2 threads to prevent fraying.
3-Thread Rolled Hem
The fabric edge is rolled, then covered with thread.
3-Thread Narrow Overlock
The fabric edge is rolled, then sewn with very narrow overlocking.
Frill 3-Thread Rolled Hem With Diff. Feed
Uses 3-thread rolled hemming and the differential feed on stretch fabrics to create richly designed articles.

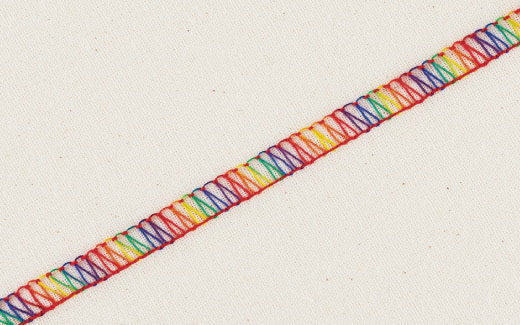

2-Thread Flatlock
Use this stitch as an accent on clothes, interior items and accessories.
