TL-2020 PE

TL-2020 PE (120V)

Created with an all vintage silver exterior and high quality features, the TL-2020PE was designed and crafted to the highest JUKI standard.

タブコンテンツ1(オレンジ線下から)

Sub Tension Unit

Sub Tension Unit

No matter the thread type, sub-tension ensures stitches are sewn with a balanced thread tension. Achieve Perfectly balanced threads with every stitch.

Sub-tension

Strongly twisted threads can make for unruly stitches. (above)
Sub-tension creates steady stitches by preventing return of twist of threads. (below)

Foot Controller with Thread Trimming Function

Foot Controller with Thread Trimming Function

Automatically trim thread by pressing the controller with your heel.

*Automatic thread trimming can be turned off by attaching a foot switch stopper.

Maximum Sewing Speed Control

The sewing speed can be set between 200 and 1,500 stitches per minute when using the foot controller.

Maximum Sewing Speed Control

Automatic Needle Threader

The automatic needle threader quickly and easily threads the needle without eyestrain.

Automatic Needle Threader

Larger Work Area

With a large work area of up to 23 inches (with auxiliary table attached), the TL-2020 PE can handle large quilts with ease.

Larger Work Area

Accessory Box

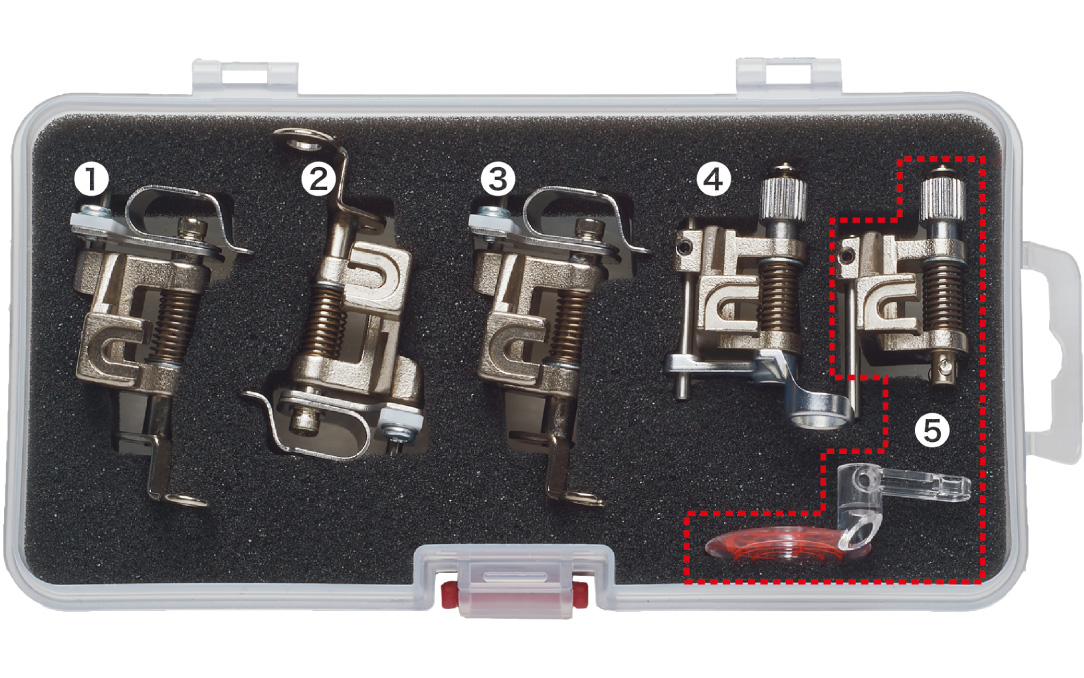

Accessory Box 1

① 1/5" Quilting Foot ② 1/4" Quilting Foot ③ Quilting Foot Front Open Toe
④ 1/4" Quilting Foot (for Ruler) ⑤ Echo Quilting Foot

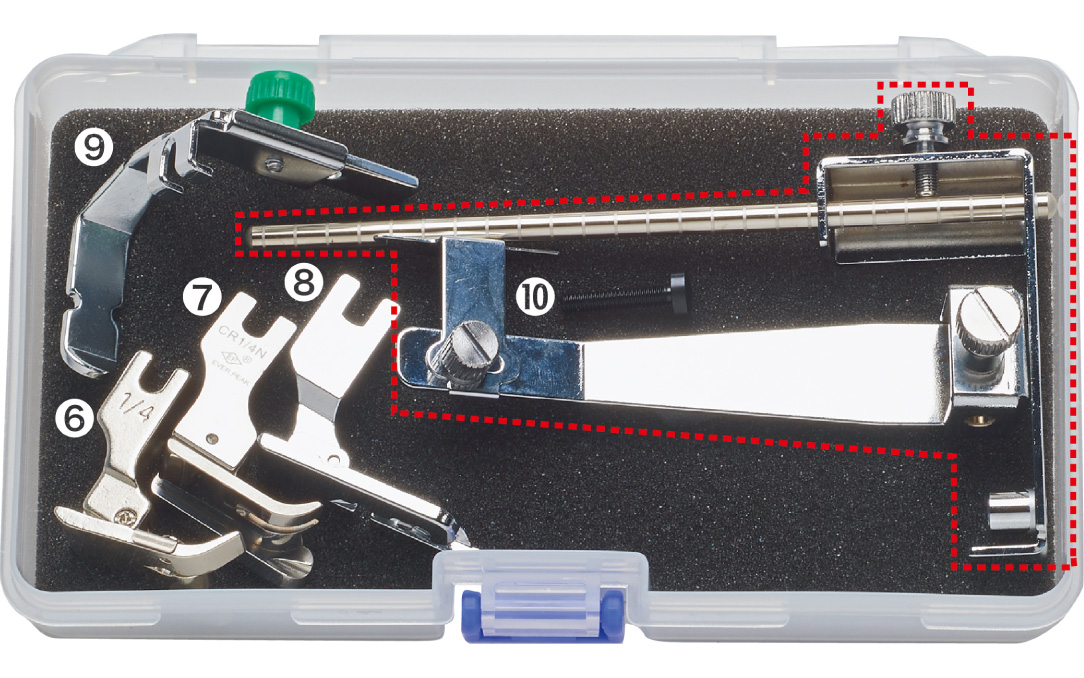

Accessory Box 2

⑥ 1/4" Presser Foot ⑦ Compensating Foot (Right 1/4")
⑧ Hemming Foot ⑨ Zipper Attaching Foot ⑩ Quilt Guide for Even Feed Foot

Even Feed Foot (Accessory bag)

Even Feed Foot (Accessory bag)

Other Features

Automatic Thread Trimmer

Automatic Thread Trimmer

Industrial sewing machine technology provides exceptional durability, noise control and cutting.

Thread Tension Scale

Thread Tension Scale

The machine also has the thread tension scale, which allows you to adjust the tension according to the thread and material to be used.

Presser Foot Pressure Adjustment

Presser Foot Pressure Adjustment

Turn the regulator on top of the machine to adjust the presser foot pressure according to the thickness of the fabric.

Needle Up/Down Control

Needle Up/Down Control

Change the needle position to up or down as desired by simply pressing the button. When the button is pressed continuously, the machine will sew stitch by stitch.

Horizontal-axis Full-rotary Hook

Horizontal-axis Full-rotary Hook

Create perfectly balanced stitches for beautiful seams.
Bobbin thread tension is also adjustable.

Drop Feed

Drop Feed

The feed dog may be raised or lowered by simply adjusting the switch. Lowering the feed dog allows you to free motion quilt in any direction with precision and ease.

Attachment mounting plate

Attachment Mounting Plate

A separate attachment mounting plate for installing fabric guides and other attachments. It can now be replaced when the mounting holes become damaged.

Knee Lifter Lever

Knee Lifter Lever

The knee lifter lever allows you to lift/lower the presser foot without using your hands.
The presser foot can be raised as high as 12mm.

LED Light

LED light brightens the needle area for better material handling.

Needles

The machine is supplied with HA-type needles, the identical type used with home sewing machines and home sergers. This type of needle cannot be attached incorrectly.

The Machine is Light-Weight and Portable

This portable, lightweight machine is easy to transport and can be carried wherever you desire.

Industrial Machine Engineering

The arm and bed of the TL-2020 PE are constructed of aluminum die-casting. This tough body lowers vibration while sewing and ensures high quality stitching. Since theTL-2020 PE has many industrial sewing machine features, it is possible to attach several types of industrial presser feet. (For more details, please contact the dealer near you.)

タブコンテンツ1(オレンジ線上まで)
タブコンテンツ2(オレンジ線下から)

SPEC / ACCESSORIES

Dimensions 452(W) x 350(H) x 219(D)mm
Arm size 215(W) x 150(H)mm
8.5"(W) x 6"(H)
Auxiliary table dimensions 590(W) x 335(D)mm
23"(W) x 13"(D)
Dimensions with auxiliary table 720(W) x 335(D)mm
Weight 11.9kg / 26.2Lb
Sewing Speed Min. 55 - Max. 1,500SPM
Needle HA x 1 (130/705H)/ HL x 5 #9-#18
Auto thread trimming
Thread cutter
Speed control knob
Automatic needle threader
Thread tension dial scale
Sub tension unit
Needle stop position Down
Needle up/down &Low-speed inching sewing button
Drop feed
Presser foot pressure adjustment
Stepless adjustment
Float function(micro-lifter) -
Presser Foot Lift (1 step/2 steps) By lever 7/9mm, by knee lifter 12mm
Stitch Length 0 - 6 mm
Light LED
Type of hook Horizontal-axis Full-rotary Hook
Bobbin case Bobbin case with bobbin hold/removal function by latch
Attachment mounting plate
Foot controller ✓ with thread trimming function
Auxiliary table
Knee lifting lever
Accessories
(presser feet)
Standard presser foot
Hemming foot
Zipper attaching foot
Compensating foot (right 1/4")
1/4" Presser foot
Even feed foot
1/5" Quilting foot
1/4" Quilting foot
Quilting foot front open toe
1/4" Quilting foot (for ruler)
Echo quilting foot
Other accessories Quilt guide for even feed foot
Bobbins (4)
Needles (HAx1)
Foot controller
Foot switch stopper
Auxiliary table
Knee lifter lever
Sewing machine cover
Power cord
Exclusive screwdriver
Screwdriver (small)
Oiler
Spool cap
Cleaning brush
Instruction manual

OPTIONAL PARTS

Free Motion Table

Free Motion Table

タブコンテンツ2(オレンジ線上まで)
タブコンテンツ3(オレンジ線下から)

SEWING SAMPLES

Coming soon.
