MO-104DN

MO-104DN

2-Needle, 3/4-Thread Overlock Machine with Lay-in Type Thread Tension Slots

タブコンテンツ1(オレンジ線下から)

4-Thread Overlock

While cutting cloth, it is possible to sew two layers of fabric together and prevent the seam allowance from fraying.

4-Thread Overlock

Differential Feed

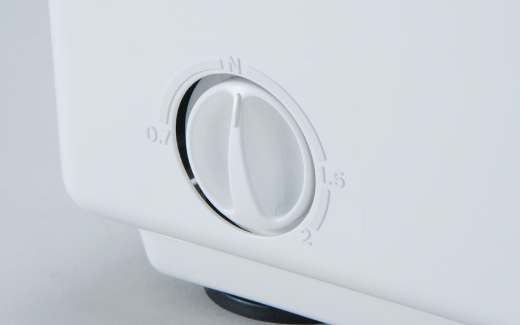

Differential Feed is easily controlled and adjusted by a dial located on the exterior left hand side.

Differential Feed

上画像

Materials that stretch easily such as knit fabrics can be finished beautifully using shirring stitch.

上画像

Materials that are likely to cause stitch gathering can be finished beautifully using stretching stitch.

Other Features

Lay-in Type Thread Tension Slots

Lay-in Type Thread Tension Slots

throughout the machine make threading easy and efficient. No wrapping, just follow the color coded thread path.

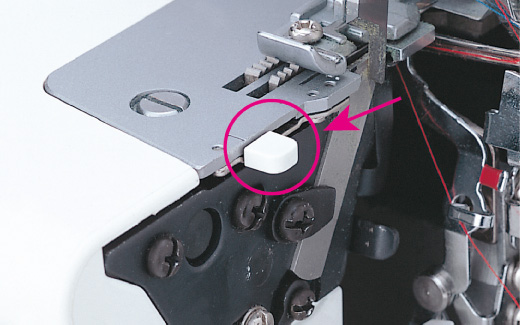

 Automatic Rolled Hemming

Automatic Rolled Hemming

can be created quickly and easily with built-in fingertip control. There is no need to change the throat plate or foot.

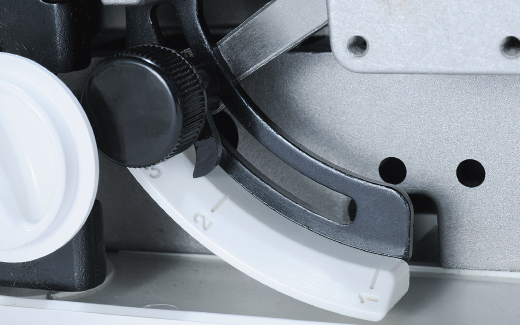

Cutting Width

Cutting Width

can be adjusted quickly for perfect seams and rolled edges.

Adjustable Stitch Length

Adjustable Stitch Length

by the knob located inside the machine within the range of 1 to 4mm.

*Adjustable presser foot pressure

*Sewing light(LED)

タブコンテンツ1(オレンジ線上まで)
タブコンテンツ2(オレンジ線下から)

SPEC / ACCESSORIES

Dimensions 315(W) x 290(D) x 290(H)mm
Weight 7.0kg
Sewing speed Max. 1,500spm
4-Thread overlock
3-Thread overlock
2-Thread overcast Option
Rolled hem
Narrow overlock
Frill 3-thread rolled hem with diff. feed
3-thread flatlock
Interlock -
Chain stitch -
4-Thread cover stitch -
3-Thread cover stitch -
Number of needles 1/2 Needles
Needle SCHMETZ 130/705 H Nm 70,80,90
Number of threads 2/3/4 Threads
Differential feed ratio 0.7-2.0 Ratio
Easy threader -
Lower looper threader -
Presser foot pressure adjustment Stepless adjustment
Automatic rolled hemming
Retractable upper knife
2-Thread converter Option
Thread cutter -
Adjusting cutting width
Safety design -
Light LED
Presser foot lift (1 step/2 steps) 5mm/7.5mm
Stitch length 1-4mm
Stitch width Left needle: 5-7mm
Right needle: 3-5mm
Rolled hem: 1.8-2.2mm
Waste collector -
Operation support DVD -
Accessories Electronic foot control
Spool caps
Tweezers
Cleaning brush/Needle inserter
Nets
Looper threader
Needle set 130/705
Small screwdriver
Oiler
Accessory bag
Dust cover
Instruction manual

OPTIONAL PARTS

Blind Stitch Presser Foot

Blind Stitch Presser Foot

Universal Blind Stitch Presser Foot

Universal Blind Stitch Presser Foot

Elasticator Presser Foot

Elasticator Presser Foot

Cording Presser Foot

Cording Presser Foot

Beading Presser Foot

Beading Presser Foot

Curved Beading Presser Foot

Curved Beading Presser Foot

Piping Presser Foot

Piping Presser Foot

Gathering Presser Foot

Gathering Presser Foot

タブコンテンツ2(オレンジ線上まで)
タブコンテンツ3(オレンジ線下から)

STITCH PATTERNS

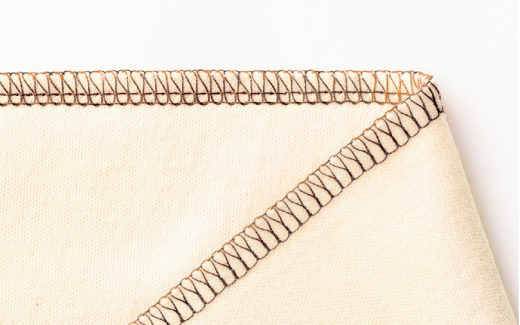

4-Thread Overlock

4-Thread Overlock

Uses 2 needles and 4 threads to securely sew together knitted fabrics.

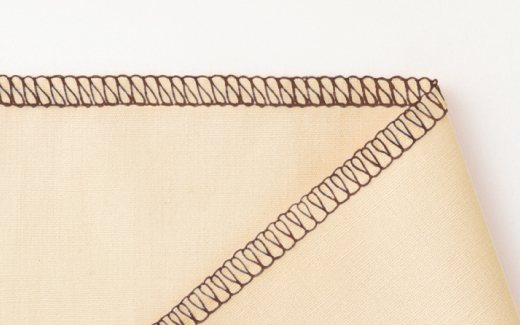

3-Thread Overlock

3-Thread Overlock

This basic stitch of overlock machines prevents fabric from fraying.

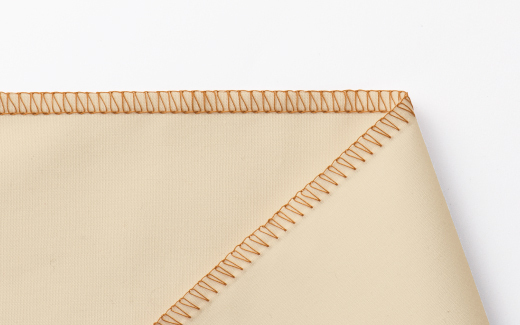

2-Thread Overcast

2-Thread Overcast (option)

Simply sew fabric edges with 2 threads to prevent fraying.

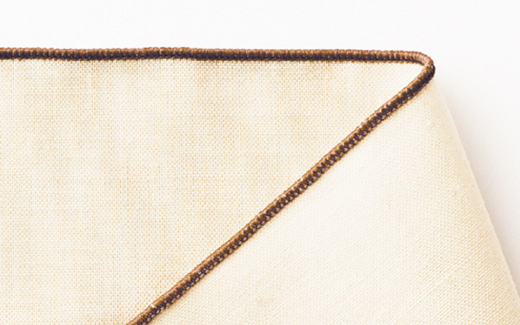

3-Thread Rolled Hem

3-Thread Rolled Hem

The fabric edge is rolled, then covered with thread.

3-Thread Narrow Overlock

3-Thread Narrow Overlock

The fabric edge is rolled, then sewn with very narrow overlocking.

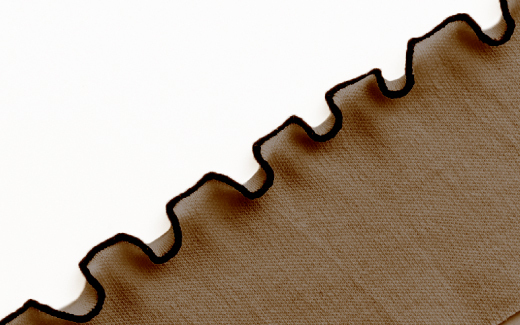

Frill 3-Thread Rolled Hem With Diff. Feed

Frill 3-Thread Rolled Hem With Diff. Feed

Uses 3-thread rolled hemming and the differential feed on stretch fabrics to create richly designed articles.

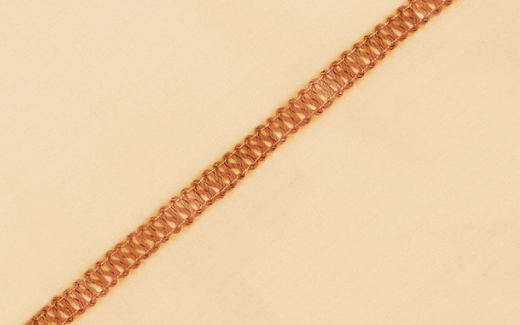

3-Thread Flatlock

3-Thread Flatlock

Use this stitch as an accent on clothes, interior items and accessories.
