HZL-NX7

HZL-NX7
Kirei

Sew Beautiful with Kirei NX7

タブコンテンツ1(オレンジ線下から)

Interchangeable Single Needle System【NEW】

Effortlessly switch to a straight stitch sewing machine with the revolutionary interchangeable Single Needle System.

Interchangeable Single Needle System【NEW】

Create perfect stitches from beginning to end. No pulling, bunching or pushing fabrics into the needle opening. Smooth handling for perfect piecing, close edges, curves, layers and more.

Throat plate

T-screwdriver; Install feed dogs

Using provided T-screwdriver; Install feed dogs, a throat plate, as well as a presser foot for an exclusive straight stitch experience and achieve precise sewing known previously only to JUKI Industrial sewing machines.

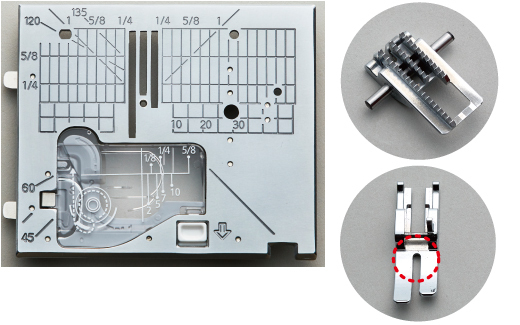

・Straight throat plate ・Straight feed dog ・Straight presser foot (S)

・Straight throat plate
・Straight feed dog
・Straight presser foot (S)

・Standard throat plate ・Standard feed dog ・Standard presser foot (A)

・Standard throat plate
・Standard feed dog
・Standard presser foot (A)

Equipped with JUKI Smart Feed (JSF)【NEW】

Engage the JUKI Smart Feed (dual feed function) to move the top layer of your fabric in sync with the lower layer. Perfect for Points, precision and quilt layers.
Adjust the feed amount in increments of 0.2mm for beautiful stitching without worried of shifting layered fabrics.

Equipped with JUKI Smart Feed (JSF)【NEW】

Large Illuminated Workspace

Dual LED Lighting to illuminate the large workspace with an addition of 2 lights over the needle for extra light where you focus.
Adjustable Lighting for any color fabrics. Need more light on dark fabrics? Less light on light fabrics? Set the lighting to best fit your daily sewing.

Large Illuminated Workspace

Variable Foot Lift Function【NEW】

The Micro-lifter Presser Foot【NEW】

The Micro-lifter Presser Foot【NEW】

The micro-lifter presser foot function reduces uneven sewing on quilts and velvets.

(Left) Used this function (Right) Not used this function

(Left) Used this function (Right) Not used this function

 Feed Dogs Automatically Lower【NEW】

Before you begin sewing, raise the presser foot and your feed dogs automatically lower for easy placement of fabrics.

Pivot Function

Pivot Function

Easily sew appliques with the pivot function.

Easy Set up with the Touch Screen Display【NEW】

Easy Set up with the Touch Screen Display【NEW】

Adjustable width/length/needle position while sewing.

Adjustable width/length/needle position while sewing. Thread tension will automatically adjust with stitch length and zigzag width.

You can change thread tension with this slide bar.

You can change thread tension with this slide bar.

Select, combine, and save your favorite stitches from and easy-to-use, full-screen list of stitches!

Select, combine, and save your favorite stitches from and easy-to-use, full-screen list of stitches!

Sew Beautiful Buttonholes with Ease

Achieve the optimal finish with our original sensor system.

Achieve the optimal finish with our original sensor system.

Free-motion Sewing

Lower the feed dogs with the touch of a button. For smooth and effortless free-motion sewing. Transparent quilt presser foot can be used with ruler work (ruler optional).

Free-motion Sewing

Customize Your Favorite Functions

Customize Your Favorite Functions

351 Built-in Stitch Patterns

351 Built-in Stitch Patterns

Bobbin Thread Counter

Bobbin Thread Counter

Automatic Back Tacking, Thread Trimming and Presser Foot Lifting

Automatic Back Tacking, Thread Trimming and Presser Foot Lifting

Foot Switch Functions

Foot Switch Functions

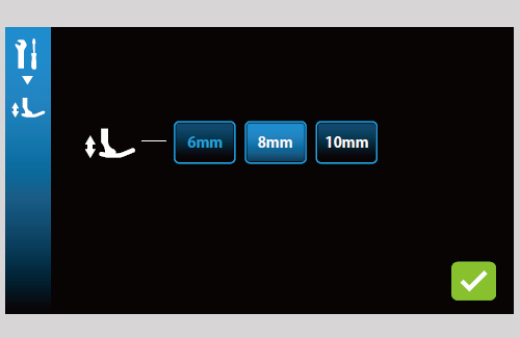

Changeable Presser Foot Lifting Height

Changeable Presser Foot Lifting Height

Operation Guide

Operation Guide

Box Feed - JUKI Industrial Sewing Machine Technology

Box Feed - JUKI Industrial Sewing Machine Technology

Thick denim folded into three layers for a flat fell seam. Evenly sews thick fabrics effortlessly.

The BOX Feed system stays in contact with your fabrics longer for a consistent, reliable seam every time.

The BOX Feed system stays in contact with your fabrics longer for a consistent, reliable seam every time.

No fabric shrinkage even sewing on light weight cotton.

No fabric shrinkage even sewing on light weight cotton.

Evenly feeds hard-to-sew high pile fabrics.

Evenly feeds hard-to-sew high pile fabrics.

Standard Accessories

Auxiliary Box

Auxiliary Box

Auxiliary box for storing accessories.

Sewing Machine Cover

Sewing Machine Cover

Sewing machine cover can store all accessories.

Knee-lifting Lever

Knee-lifting Lever

Highly responsive electric knee-lifting lever.

Foot Controller

Foot Controller

Foot switch can be positioned on left or right.

Quick Preparation Makes Sewing a Breeze

Automatic Needle Threader

Automatic Needle Threader

Simply place the thread in the guide and lower the lever. Easily and quickly thread a needle with one hand.

Bobbin Winder with Independent Motor

Bobbin Winder with Independent Motor

To set up the bobbin for winding, simply wind some thread around the bobbin and pass it through the guide. You can wind the bobbin thread every time, and also use a cutter after winding.
A. cutter B. guide with cutter

Quick Bobbin Preparation

Quick Bobbin Preparation

The bobbin preparation is easy. Just follow the guide and it is not necessary to pull up the bobbin thread.

タブコンテンツ1(オレンジ線上まで)
タブコンテンツ2(オレンジ線下から)

SPEC / ACCESSORIES

Control system(Arm size)Computer (Arm Size 304㎜)
Dimensions575(W) x 310(H) x 240(D) mm
Weight14.8kg (32.1lbs)
Maximum sewing speed1,050 sti/min
Number of stitch patterns351 and Alphabetic/numeric fonts:4 Japanese letters font: 1
ButtonholeAutomatic (sensor system) with clamping plate Cutting width adjustment Buttonhole Length: 0.7 - 3.2cm
Direct stitch pattern selection-
Start/stop buttonGreen: Ready to start and/or while sewing Red: Not ready to start Orange: When the lock stitch button is pressed while the sewing machine is engaged in pattern sewing
Adjustable starting / reverse stitch speed
Auto thread trimming
Thread cutter
Automatic needle threaderOne hand
Thread tension systemAutomatic (digital)
Needle up/down button
Low-speed inching sewing〇 Press needle up/down button continuously
Needle stop positionDown
Needle stop position switching
Lock stitchReverse stitch (Button system) Reinforcement stitch (Button system) Automatic lock stitch, thread trimming and presser foot lifting
Feed mechanism7 point feed dog BOX Feed
JUKI Smart Feed (dual feed function)
Presser foot pressure adjustmentStepless adjustment (digital) / LCD numerical display
Micro-lifterspec_float_No
Function to straight-line stitching Staright throat plate, straight feed dogs and straight presser foot
Presser foot pivot function
Presser foot lift (1 step/2 steps)Button system: 6 ・ 8 ・ 10mm / 12mm Lever system: 6mm / 12mm Knee-lifting lever system: 6 ・ 8 ・ 10mm / 12mm
Horizontal presser foot holder button
Drop feed
Quick bobbin preparation
Easy bobbin winding (Bobbin winder with independent motor)
Bobbin thread detectionBobbin thread counter
Stitch lengthDial system / LCD numerical display Max. 5mm
Stitch widthDial system / LCD numerical display Max. 7mm
Number of needle position (straight stitch/other than straight stitch)37 / According to pattern
Pattern reverseUp/down and left/right
Twin needle sewing〇 (Twin needle is option)
Lock mode
Elongation
Save/call of patterns10 patterns
Light6 LED lights
Type of hookHorizontal hook
Free arm
Cord reel-
Knee lifting leverElectric knee lifting control mechanism
Foot controllerwith separate foot switch (6 functions selectable)
Wide table
Accessory storageAccessory box
Sewing machine coverSoft cover with accessory storage
Operation supportOperation guide
Supported languagesspec_light9lang
Accessories (presser feet)Standard presser foot (A) Straight presser foot (S) Zipper presser foot (B) Overcasting presser foot (C) Blind stitch presser foot (D) Buttonhole presser foot (E) Manual buttonhole presser foot (I) Open toe presser foot (O) Patchwork presser foot (P) Quilt presser foot (for the ruler) (Q) 7mm guide foot (7) or 1/4" guide foot (1/4)
Other accessories_1HZL-NX7_spec_accessory_2
Other accessories_2

INCLUDED ACCESSORIES

Standard Presser Foot

It can be used to sew lightweight to heavyweight materials.The wide needle entry opening allows this presser foot to be used for a variety of fabrics and applications, from straight stitches to zigzag stitches.Press the black button to keep the presser foot horizontal in order to smoothly begin sewing at a thick seam.(Normal type and for JUKI Smart Feed.)

Movie

Overcasting Presser Foot (Overedge Foot)

Sew with the edges of the fabric aligned with the guide. The prong in the opening of the presser foot presses down the edge of the fabric to prevent puckering. In addition, the amount of thread going into the stitching is adjusted by the thread crossing the prong, creating a clean finish with little shrinkage. This presser foot cannot be used to sew zigzag stitches or overcasting by 3-point zigzag.

Movie

Buttonhole Presser Foot

You can sew buttonholes of the appropriate size by simply placing the button in the button holder of the presser foot.

Movie

Decorate Stitch Presser Foot (Manual BH Presser Foot/Satin Stitch Foot)

The groove along the bottom of this presser foot ensures that the presser foot does not catch on the stitching, ensuring the fabric will be smoothly fed. Use to accurately sew a buttonhole near a thick seam that is hard to reach. Also Used to Manually Create Oversize Buttonholes.

Movie

Zipper Presser Foot

Since this presser foot has a pin on the left side and on the right side for attaching it to the presser foot holder, you can attach this presser foot on either side of the needle, depending on which side of the zipper is being sewn. This presser foot can cleanly sew along the edges of the zipper without hitting the teeth.

Movie

Blind Stitch Presser Foot (Blind Hem Foot)

By sewing with the fabric fold aligned on the guide of this presser foot,only a few threads of the fabric will be uniformly caught in the stitch. Adjust the needle entry point or guide position according to the fabric before sewing. You can also use this presser foot as a guide when changing the needle position for hemstitching in a traight line.

Movie

Straight Stitch Presser Foot

Since this presser foot is narrow, smooth handling is achieved while sewing edges and curves.(Normal type and for JUKI Smart Feed.)

Patchwork Presser Foot

Always ensure needle is set to center straight stitch. Align the edge of the fabric with the outer presser foot guide for a seam allowance of 1/4" or with the inner presser foot guide for a seam allowance of 1/8". There are also marks at a 1/4" spacing at the front and back of the presser foot, allowing you to see the width of the seam allowance before and after needle entry.(Normal type and for JUKI Smart Feed.)

Movie

7mm Guide Foot

Always ensure needle is set to center straight stitch. Align the edge of the fabric with the presser foot guide to easily sew with a seam allowance of 7 mm. Since the needle drops into a small round opening, the seam is stabilized to create a perfect straight stitch.(Normal type and for JUKI Smart Feed.)

Quilt Presser Foot (for Ruler)

With a distance of 1/4" (6.5 mm) from the needle entry point to the outer edge of the presser foot, sew using a ruler as a guide. The front of the presser foot is lowered, making it easier to see the needle area. Adjust the height of the presser foot according to the thickness of the fabric.

Open Toe Presser Foot

The wide opening at the front of this presser foot makes appliqu?s and designs easy to see, which is useful for curvy decorative stitching. The groove along the bottom of this presser foot ensures that the presser foot does not catch on the stitching, so the fabric will be smoothly fed.

Movie

Quilt Guide

Insert this guide into the hole of the presser foot holder or the walking foot, and then sew while lightly tracing this guide along stitching. Adjust the spacing of the stitching by changing how far this guide is inserted.

Movie

Auxiliary Spool Pin (Additional Spool Pin)

Use this spool pin with a thread spool for twin needle sewing, spare machine threading or bobbin winding.

Throat Plate for Straight Stitch

This needle plate is used to sew the straight stitch with the center needle position. Creates perfect needle feed for light weight fabrics or corner to corner stitching in patchwork piecing. Use with straight feed dog (40201411)

Wide Table

This table can easily be installed by fitting it into place.

Foot Controller with Foot Switch Function

Controlling the sewing machine with your foot leaves both of your hands free while sewing. You can trim threads and or do another operations by pressing on the another switch of the foot controller.

Knee-lifting Lever

Using your knee to push the lever to the right raises the presser foot,and when you return it will lower the presser foot.

Bobbin(1pc)

Since the bobbin type differs depending on your sewing machine model,be sure to use the bobbin designed for your machine.

OPTIONAL ACCESSORIES

Button Attaching Presser Foot

Be sure to first lower the feed dog so the fabric is not fed and adjust the zigzag width so the needle enters the holes in the button. To create a shank for the button, insert an awl or another similar object into the groove in the presser foot before sewing on the button so that the stitching will create a loop suitable for the thickness of the fabric.

Movie

Zipper Presser Foot

Since this presser foot has a pin on the left side and on the right side for attaching it to the presser foot holder, you can attach this presser foot on either side of the needle, depending on which side of the zipper is being sewn. This presser foot can cleanly sew along the edges of the zipper without hitting the teeth.(Matte type and for JUKI Smart Feed.)

Movie

Narrow Zipper Foot

Since the width of the narrow zipper foot is small, the operator can easily observe the material during sewing. It has two (right and left)recesses on its undersurface, you can sew higher portions of the material while avoiding those portions. Both the right and left sides of the zipper can be sewn only by changing the position of the needle base line. The mounting portion of this presser foot is placed at its center, so the stable feed of the material is ensured.

Movie

Invisible Zipper Foot

Since this presser foot lifts the teeth of the zipper as they are fed through the groove along the bottom of the presser foot, you can closely sew along the edges of the zipper teeth.

Movie

Smooth Presser Foot

This presser foot, made of a fluorocarbon resin, smoothly feeds even vinyl-coated material and leather fabrics which may stick to a standard presser foot and are difficult to sew.(for JUKI Smart Feed.)

Movie

Smooth Presser Foot

This presser foot, made of a fluorocarbon resin, smoothly feeds even vinyl-coated material and leather fabrics which may stick to a standard presser foot and are difficult to sew.

Movie

Roller Foot

The rollers at the front and back of this presser foot prevent it from sticking to or bunching fabrics for perfect seams.

Movie

Rolled Hemming Presser Foot

The spiral guide of this presser foot rolls the edge of the fabric to create a narrow rolled hem. This presser foot can be used on light-weight to medium-weight fabric. Since the fabric can be uniformly folded twice without ironing, this presser foot is useful for finishing ruffles and handkerchief edges.

Movie

Hemming Presser Foot for Zigzag

The spiral guide of this presser foot rolls the edge of the fabric while the narrow rolled hem is sewn with a zigzag stitch. This presser foot can sew thin and solid edging.

Movie

Straight Stitch Presser Foot

Since this presser foot is narrow, smooth handling is achieved while sewing edges and curves.(Matte type and for JUKI Smart Feed.)

Binder Presser Foot

After tape with a width of about 0.75" to 1.0" (22 to 25 mm) is passed through the guide, this presser foot creates double-fold tape with a width of about 0.2" (5 mm) and sews it to bind the fabric. Single-fold tape with a width of about 0.4" to 0.5"(10 to 13 mm) can also be used. You can move the guide to the left or right to adjust the needle entry point.

Movie

Pintuck Foot Narrow

When sewing pintucks in parallel, the 9 slits on the bottom of the presser foot can be used as a guide. Pintucks are suited to light-weight soft materials. Pintucks of stable shape can be produced while putting a cord in each pintuck.

Pintuck Foot Wide

When sewing pintucks in parallel, the 7 slits on the bottom of the presser foot can be used as a guide. Pintucks are suited to light-weight soft materials. Pintucks of stable shape can be produced while putting a cord in each pintuck.

Patchwork Presser Foot

Always ensure needle is set to center straight stitch. Align the edge of the fabric with the outer presser foot guide for a seam allowance of 1/4" or with the inner presser foot guide for a seam allowance of 1/8". There are also marks at a 1/4" spacing at the front and back of the presser foot, allowing you to see the width of the seam allowance before and after needle entry.(Matte type and for JUKI Smart Feed.)

Movie

1/4“ Guide Foot

Always ensure needle is set to center straight stitch. Align the edge of the fabric with the presser foot guide to easily sew with a seam allowance of 1/4" (6.4 mm). Since the needle drops into a small round opening, the seam is stabilized to create a perfect straight stitch.(Matte type and for JUKI Smart Feed.)

1/4“ Guide Foot

Always ensure needle is set to center straight stitch. Align the edge of the fabric with the presser foot guide to easily sew with a seam allowance of 1/4" (6.4 mm). Since the needle drops into a small round opening, the seam is stabilized to create a perfect straight stitch.(Normal type and for JUKI Smart Feed.)

7mm Guide Foot

Always ensure needle is set to center straight stitch. Align the edge of the fabric with the presser foot guide to easily sew with a seam allowance of 7 mm. Since the needle drops into a small round opening, the seam is stabilized to create a perfect straight stitch.(Matte type and for JUKI Smart Feed.)

Presser Foot with Guide

On the right side of the presser foot, there are guidelines at a 2 mm spacing from 0 to 2 cm from the center of the needle entry opening (center needle position). This presser foot is useful when sewing parallel straight or decorative stitching.

Movie

Edge Sewing Presser Foot

The long guide at the center of the presser foot fits perfectly in the seam line to stabilize stitching. You can also use this presser foot as a guide when changing the needle position for hemstitching in a straight line.(Matte type and for JUKI Smart Feed.)

Movie

Edge Sewing Presser Foot

The long guide at the center of the presser foot fits perfectly in the seam line to stabilize stitching. You can also use this presser foot as a guide when changing the needle position for hemstitching in a straight line.(Normal type )

Movie

Compact Guide Edge Sewing Foot

This presser foot has a shorter guide at its center. With this shorter guide, smoother feed of the material is promised. Furthermore, it is expected to reduce uneven material feed. The marks on the left side of the presser foot will be the guide for the outline quilting. By changing the needle base line, you can sew the single lap stitching with ease.

Movie

Quilt Presser Foot

With the feed dogs lowered, you can freely move the fabric to draw using stitching. Use the screw to adjust the height of the presser foot according to the thickness of the fabric, so the fabric moves smoothly. Use with adapter shank (40207583)

Movie

Quilt Presser Foot (Open Type)

Use the screw to adjust the height of the presser foot according to the thickness of the fabric, so the fabric moves smoothly. Use with adapter shank (40207583)

Movie

Quilt Presser Foot (Zigzag Type)

The wide needle entry opening allows this presser foot to be used for free-motion sewing with zigzag stitches. Since the presser foot moves up and down together with the movement of the needle, thick seams can easily be crossed.

Movie

Applique Presser Foot

Since the front and back of this presser foot are short and transparent, appliqu?s and designs are easy to see, and you can easily sew sharp curves. The pin at the back keeps the presser foot horizontal, stabilizing it even when sewing appliqu?s.

Movie

Pearl Attaching Presser Foot

Pass the strand of pearls or beads up to a diameter of 4 mm through the dome-shaped groove in the center of the presser foot, and then sew with a zigzag stitch. This presser foot can also be used for sewing on thick cording, braiding or piping cord, even on curves.

Movie

Fringe Foot

This foot has a claw at its center. It is used for forming loops by laying the thread over the claw. This presser foot can be used for sewing decorative stitches on workpieces by making three-dimensional thread loops and fringes on the edge of the fabric with your favorite threads.

Movie

Cording and Embroidery Presser Foot

This presser foot has a hole for supplying cording to be sewn over. With the feed dog lowered, you can freely move the fabric to create simple embroidery with cording. Use with adapter shank (40207583)

Movie

Cording Presser Foot (for 3 Cords)

Pass threads through the three channels in front of the needle entry opening and sew them with the three-point zigzag stitch or decorative stitches in order to create three-dimensional decorations.

Movie

7 Hole Cording Foot

This presser foot is provided with seven cord insertion holes of approximately 1 mm in diameter. As many as seven (1 to 7) thin cord(s) or embroidery thread(s) can be sewn using these holes while neatly arranging them in parallel (in the case of two or more cords / threads are used).

Adapter Shank

Can be used with the Quilt Presser Foot, Quilt Presser Foot (Open Type),Quilt Presser Foot (Zigzag Type), Cording and Embroidery Presser Foot.

Twin Needle

For beautiful decorative stitches two threads can be a perfect addition. Also it is used for sewing pintucks with the pintuck feet. Set the sewing machines with 2 needle settings with optional functions. Not all stiches are approved for twin needle design.

Dedicated Hook for Thick Thread Decoration

Wrap the thread you want to decorate around the bobbin and draw a pattern with pattern stitching or free motion.

Stitch Area Magnifier

This is useful for viewing the needle area or performing intricate operations.

Thread Stand

The specially designed thread guide that is also installed smoothly pulls the thread straight up. When placing the hard case on the sewing machine, this thread stand and thread guide can be removed in a single step.

Magnetic Gauge

A strong magnet holds this gauge in place on the needle plate. This gauge can also be used on household sewing machines with a metal needle plate.

Movie

Ruler Kit (HZL type)

Various patterns can be formed by combining basic lines and shapes. This kit contents straight, wave, hexagon, circle, feather shapes. Be sure to use this kit together with the presser foot for ruler. The thickness of these rulers are 3mm.

Ruler Set

Various patterns can be formed by combining basic lines and shapes. This kit contents straight, wave, hexagon, circle, feather shapes. Be sure to use this kit together with the presser foot for ruler. The kit contents and shapes may differ.

タブコンテンツ2(オレンジ線上まで)
タブコンテンツ3(オレンジ線下から)

STITCH PATTERNS

STITCH PATTERNS

SEWING SAMPLES

Quilting tapestry with free motion

Quilting tapestry with free motion

Quilting cushion cover

Quilting cushion cover

タブコンテンツ3(オレンジ線上まで)
