PRODUCTS

HZL-29Z

HZL-27Z

Fine Tuned Functions are Easy to Use for Beautiful Sewing Results

タブコンテンツ1(オレンジ線下から)

Automatic Needle Threader

Simply lower the lever and turn it back and forth. This single action makes it easy to thread the needle.

Automatic Needle Threader

Large and Easy-To-Use Stitch Selector and Reverse Feed Lever

Stitch patterns can be selected by the large, easy to operate dial. The Reverse Feed Lever is also conveniently larger for simple operation.

Large and Easy-To-Use Stitch Selector and Reverse Feed Lever

White LED Light

Brightens the needle entry area. LED light will not heat up even during long operations. Also since LED light has a long life and low power consumption compare with halogen light, it is more economical.

White LED Light

4-Step Buttonholing

Buttonholes can be sewn neatly with 4 easy steps.

Buttonholing

Easy Drop-in Bobbin

It is simple to prepare the bobbin thread and to clean the hook area. The remaining amount of bobbin thread is visible through the transparent cover.

Easy Drop-in Bobbin

7-Point Feed Dog

From light-weight material to denim. 2 extra Feed Dogs are located in front of the needle entry hole. With the 7-point feed dog the machine feeds any light weight to heavy weight materials consistently.

7-Point Feed Dog

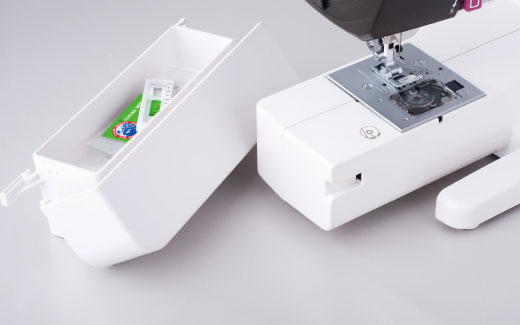

Free Arm

The accessory box slides off for free arm sewing. Standard accessory parts can be neatly stored in the box.

Free Arm

Easy Sewing Start

Push the black button at the presser foot and make it parallel to the throat plate. This makes it easy to start sewing multiple layers of fabric or overlapped materials.

Easy sewing start

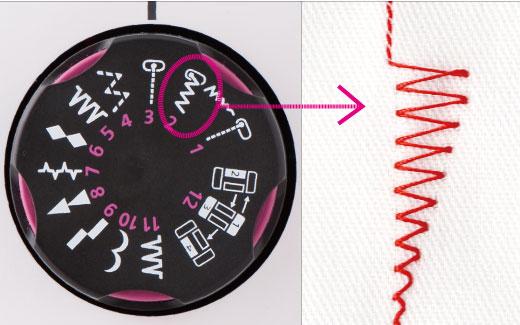

Changeable Needle Positions

Zigzag width can be adjusted by simply turning the Stitch Selection Dial. For straight stitches, either the left or center needle position can be selected.

Needle positions

タブコンテンツ1(オレンジ線上まで)
タブコンテンツ2(オレンジ線下から)

SPEC / ACCESSORIES

Control system(Arm size)Electric (Arm Size 138㎜)
Dimensions388(W) x 280(H) x 198(D)mm
Weight5.9kg (13.0LBS)
Maximum sewing speed610 sti/min
Number of stitch patterns23
Buttonhole4-step Buttonhole Buttonhole Length: - 3.0cm
Direct stitch pattern selection-
Start/stop button-
Adjustable starting / reverse stitch speed-
Auto thread trimming-
Thread cutter
Automatic needle threader
Thread tension systemStandard
Needle up/down button-
Low-speed inching sewing-
Needle stop position-
Needle stop position switching-
Lock stitchReverse stitch (Lever system)
Feed mechanism7 point feed dog
JUKI Smart Feed (dual feed function)-
Presser foot pressure adjustment-
Auto presser foot lift system-
Micro-lifter-
Function to straight-line stitching-
Presser foot pivot function-
Presser foot lift (1 step/2 steps)Lever system: 5.5mm / 9.5mm
Horizontal presser foot holder button
Drop feed-
Quick bobbin preparation-
Easy bobbin winding (Bobbin winder with independent motor)-
Bobbin thread detection-
Stitch lengthDial system Max. 4mm
Stitch widthDial system Max. 5.5mm
Number of needle position (straight stitch/other than straight stitch)2 / -
Pattern reverse-
Twin needle sewing-
Lock mode-
Elongation-
Save/call of patterns-
Light1 LED light
Type of hookHorizontal hook
Free arm
Cord reel-
Knee lifting lever-
Foot controller
Wide table-
Accessory storageAuxiliary bed
Sewing machine coverDust cover
Operation supportDVD
Supported languages-
Accessories (presser feet)Standard presser foot Buttonhole foot
Other accessories_1Bobbins Needles Spool pin cap Vertical spool pin Felt Seam ripper/Brush Screwdriver (small) Screwdriver Dust cover Power cord(Foot controller) Instruction manual Operation support DVD
Other accessories_2

INCLUDED ACCESSORIES

OPTIONAL ACCESSORIES

タブコンテンツ2(オレンジ線上まで)
タブコンテンツ3(オレンジ線下から)

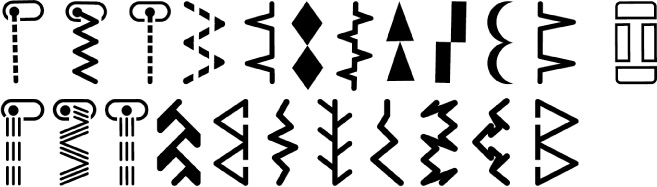

STITCH PATTERNS

STITCH PATTERNS
