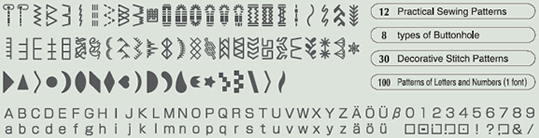

Letters and One Point Stitch Patterns
HZL-K85 can sew both letters and numbers. Also you can combine letters and one point stitches as you desire.
The color of the Start/Stop button indicates the status of the machine.
[Green] Ready to sew or currently sewing
[Red] Not ready to start
[Orange] In bobbin winding condition
Size of Stitch Pattern and Needle Position
You can change the size of stitch patterns as well as the needle position. HZL-K series has 15 needle positions.
Two Automatic Lock Stitches
HZL-K series can automatically sew a lock stitch at the beginning and end of sewing. There are two types of lock stitch, reverse stitch and reinforcement stitch.
HZL-K series sews the buttonhole automatically according to the size of the button.
The needle threader easily threads the needle and allows you to start sewing quickly.
Normally, if the dial is set to "Auto", it is suitable for most fabrics.
Easy to Start Sewing Thick Fabrics
Press the black button of presser foot to make the presser foot parallel to the throat plate. This makes easy to start sewing thick fabrics.
Press the button to change up/down position of needle instantly. Also you can change the needle stop position.
LED light brightens the needle area for a better material handling. LED light will not heat up even during long operations.
・Free Arm
・Drop in Bobbin
・Drop Feed for Free Motion Quilting
Hard Case
Foot Controller
タブコンテンツ1（オレンジ線上まで）
タブコンテンツ2（オレンジ線下から）
| Control system（Arm size） | Computer (Arm Size 151㎜） |
| Dimensions | 415(W) x 300(H) x 190(D)mm |
| Maximum sewing speed | 720 sti/min |
| Number of stitch patterns | 50
and Alphabetic/numeric font:1 |
| Buttonhole | Automatic
Buttonhole Length: - 2.5cm |
| Direct stitch pattern selection | - |
| Start/stop button | [Green] Ready to sew or currently sewing.
[Red] Not ready to start.
[Orange] In bobbin winding condition. |
| Adjustable starting / reverse stitch speed | - |
| Automatic needle threader | 〇 |
| Thread tension system | Auto |
| Needle up/down button | ?
(Needle stop position switching) |
| Low-speed inching sewing | - |
| Needle stop position switching | 〇
(Needle up/down button) |
| Lock stitch | Reverse stitch (Button system)
Automatic reverse stitch or reinforcement stitch |
| Feed mechanism | 7 point feed dog |
| JUKI Smart Feed (dual feed function) | - |
| Presser foot pressure adjustment | - |
| Auto presser foot lift system | - |
| Function to straight-line stitching | - |
| Presser foot pivot function | - |
| Presser foot lift (1 step/2 steps) | Lever system: 5.5mm / 10.5mm |
| Horizontal presser foot holder button | 〇 |
| Quick bobbin preparation | - |
| Easy bobbin winding (Bobbin winder with independent motor) | - |
| Stitch length | Slide lever system / numerical display
Max. 4mm |
| Stitch width | Slide lever system / numerical display
Max. 7mm |
| Number of needle position (straight stitch/other than straight stitch) | 15 / - |
| Type of hook | Horizontal hook |
| Accessory storage | Auxiliary bed |
| Sewing machine cover | Hard case with instruction manual keeper part |
| Accessories (presser feet) | Standard presser foot (A)
Zipper presser foot (B)
Overcasting presser foot (C)
Blind stitch presser foot (D)
Buttonhole presser foot (E)
Manual buttonhole presser foot (I)
Quilting attachment |
| Other accessories_1 | Bobbin (3)
Needle pack HA X 1 No.11 2P:No.14 1P
Quilt guide
Spool pin
Oiler
T-shape screwdriver
Seamripper
Spool cap (large)
Spool cap (medium)
Spool cap (small)
Spool pin felt disc
Foot controller
Electric power cord
Hard case
Instruction manual
Operation support DVD |
