*Letters and One Point Stitch

*Start/Stop Button ECO PRODUCTS
*Two Automatic Lock Stitches *Buttonholes
*Automatic Needle Threader *Thread Tension
*Easy to Start Sewing Thick Fabrics *Needle Stop Position
*LED Light *Sewing Patterns
*Specifications & Catalog Download
Major Features
Lellers and One Point Stitch Patterns
HZL-K85 can sew both letters and numbers. Also you can combine letters and one point stitches as you desire.
Start/Stop Button
The color of the Start/Stop button indicates the status of the machine.

[Green] Ready to sew or currently sewing.
[Red] Not ready to start.
[Orange] In bobbin winding condition.
Size of Stitch Pattern and Needle Position
You can change the size of stitch patterns as well as the needle position. HZL-K series has 15 needle positions.
Two Automatic Lock Stitches
HZL-K series can automatically sew a lock stitch at the beginning and end of sewing. There are two types of lock stitch, reverse stitch and reinforcement stitch.

HZL-K series sews the buttonhole automatically according to the size of the button.


Automatic Needle Threader
The needle threader easily threads the needle and allows you to start sewing quickly.


Thread Tension
Normally, if the dial is set to "Auto", it is suitable for most fabrics.


Easy to Start Sewing Thick Fabrics
Press the black button of presser foot to make the presser foot parallel to the throat plate. This makes easy to start sewing thick fabrics.


Needle Stop Position
Press the button to change up/down position of needle instantly. Also you can change the needle stop position.


LED Light
LED light brightens the needle area for a better material handling. LED light will not heat up even during long operations.

Sewing Patterns

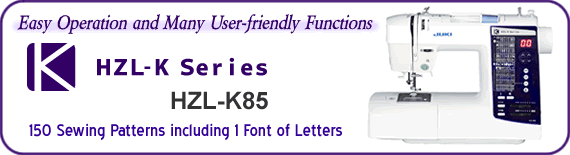

150 Sewing Patterns including 1Font of Letters
Dimensions 415 (W) x300 (H) x190(D) (mm)
Weight (Machine only) 7.1kg (15.6LBS)
Download the documents of HZL-K85

Catalog (1.5MB)

The above documents are PDF format. In order to display and print out the documents, please down load and install Acrobat Reader.
