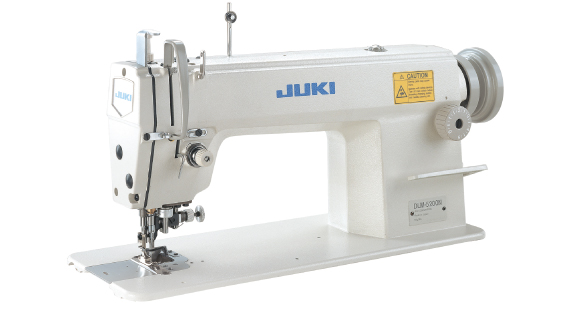

1-needle, Lockstitch Machine with Edge Trimmer

The highly efficient lockstitch machine which assures the consistent quality of finished seams comes with a sharp knife capable of cutting various types of material.

Product features

  • Beautifully finished lockstitched seams

    The thread take-up, feed mechanism, and thread path have been improved so as to respond to material changes.
    A consistent, beautiful seam finish is therefore attained.

  • The knife is so sharp that it can cut any type of material

    The knife is designed so that the angle can be changed as desired, allowing the knife to be easily applied to any type of material.

  • During operation, the type of stitching can be easily changed between lockstitch alone and lockstitch with knife

    The knife can be attache by simply pressing the presser plate on the machine arm. The knife is removed also by the simple operation of the knob. Thus the type of stitching, such as with or without knife, can be changed with ease.

Basic performance

  • The maximum stitch length for the DLM-5200N has been increased to 5mm

    The stitch length can be adjusted using the dial.

  • The exclusive arm-shaped machine head makes the material easier to handle

    The arm shape of the machine head has been adopted to enhance ease of operation.

  • The operating noise and vibration of this model are far less than its predecessors

    The operating environment has been greatly improved to allow the operator to work comfortably with this machine.

  • This model is designed as the optimum for high-speed sewing

    This model is made of special alloy steel, and a feed mechanism and system have been incorporated to make the machine the optimum for high-speed operation. As a result, this model demonstrates a consistent sewing performance during high-speed operation.

Specification

Model name DLM-5200N
Max. sewing speed 4,500sti/min*
Max. stitch length 5mm (normal/reverse feed)
Needle bar stroke 30.7mm
Lift of the presser foot By hand: 4mm, By knee: 10mm
Needle (at the time of delivery) DB×1 (#14), For JE: 134 (Nm90)
Hook Automatic-lubricating full-rotary hook
Max. thickness of the material to be cut 4mm
Lubrication Automatic
Lubricating oil JUKI New Defrix Oil No.1 (equivalent to ISO VG7)
Weight of the machine head 30kg

* “sti/min” stands for “Stiches per Minute”

When you place orders

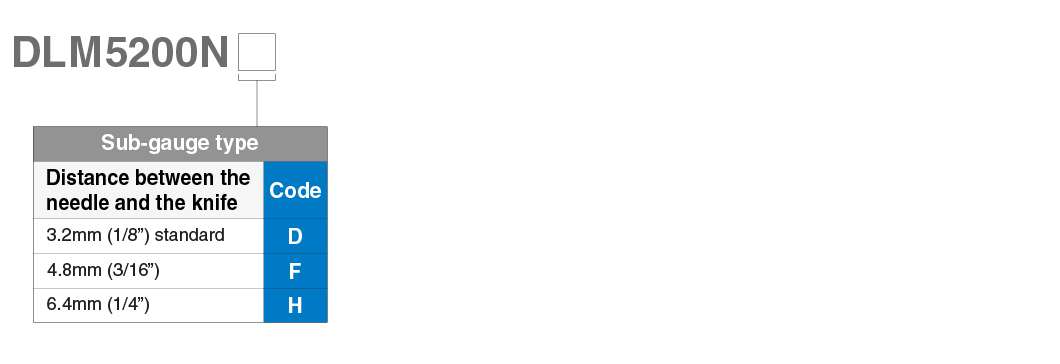

Gauge

DLM-5200N

Guage THROAT PLATE THROAT PLATE COVER GUAGE THROAT PLATE CHIP GUARD CHIP GUARD PRESSER FOOT ASM.
Figure
Sub guage width P/N Remarks P/N Remarks P/N Remarks P/N Remarks P/N Remarks P/N Remarks
2.4mm_C 11346004 - B11155300AD - B1190522X00 - 11346905 - 11346400 - B1524522NB0A -
4.8mm_F 11346004 - B11155300AF - B1190522T00 - 11346905 - 11346400 - B1524522NB0A -
6.4mm_H 11346004 - B11155300AF - B1190522U00 - 11347101 - 11346509 - B15240120BA -
Guage FEED DOG KNIFE
Figure
Sub guage width P/N Remarks P/N Remarks
2.4mm_C B1613522N00A - B4121522000 -
4.8mm_F B1613522N00A - B4121522000 -
6.4mm_H B1613522W00A - B4121522000 -

DLM-5200N (Spare parts)

Guage THROAT PLATE THROAT PLATE COVER GUAGE THROAT PLATE CHIP GUARD CHIP GUARD PRESSER FOOT ASM.
Figure
Sub guage width P/N Remarks P/N Remarks P/N Remarks P/N Remarks P/N Remarks P/N Remarks
2.0mm_CA 11346004 - B11155300AD - B1190522Y0A - 11346905 - 11346400 - B1524522NB0A -
3.2mm_D 11346004 - B11155300AD - B1190522S00 - 11346905 - 11346400 - B1524522NB0A -
4.0mm_E 11346004 - B11155300AF - B1190522Y00 - 11346905 - 11346400 - B1524522NB0A -
6.4mm_HA 11346004 - B11155300AF - B1190522U0A - 11347101 - 11346509 - B15240120BA -
7.9mm_K 11346103 - B11155300AM - B1190522Y0B - 11347101 - 11346509 - B15240120BA -
9.5mm_M 11346103 - B11155300AM - B1190522V00 - 11347309 - 11346509 - B15240120BA -
Guage FEED DOG KNIFE
Figure
Sub guage width P/N Remarks P/N Remarks
2.0mm_CA B1613522N00A - B4121522000 -
3.2mm_D B1613522N00A - B4121522000 -
4.0mm_E B1613522N00A - B4121522000 -
6.4mm_HA B1613522A0A - B4121522000 -
7.9mm_K B1613522W00A - B4121522000 -
9.5mm_M B1613522W00A - B4121522000 -
