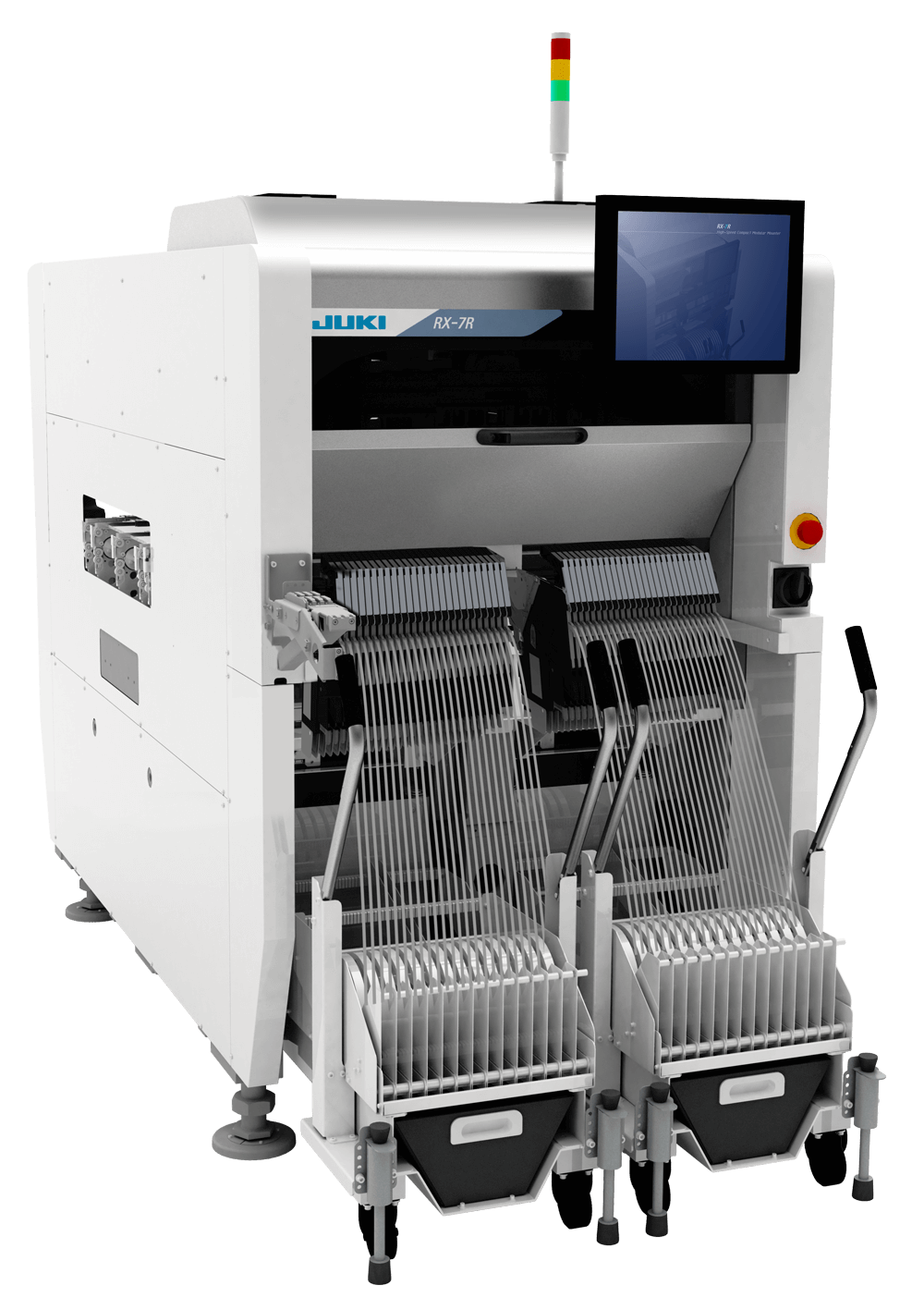

High-Speed Compact Modular Mounter RX-7R

Innovative Production Efficiency Improvement for the Whole Factory

Catalog download Contact

Features

  • Linking to other machines for improved productivity
  • Graphical system visualization
  • JaNets Integraton
  • New P16S head with improved accuracy
  • Simultaneous production of PCBs
  • Top and Bottom Check of Leaded Parts
  • Low impact placement force
  • High speed of maximum cluster tact 75,000 CPH
  • Compact Design – 998mm width
  • Wide Component Range

specification

High -Speed Compact Modular Mounter RX-7R
  (P16S×P16S head) (P16S×P8*1 head) (P8×P8*1 head)
Board
size
Single lane conveyer 50×50~510mm*2*3×450mm
Single lane conveyer
Single lane mode
50×50~510mm*2*3×450mm
Single lane conveyer
Dual lane mode
50×50~510mm*2*3×250mm
Component height 3mm 3mm(P16S head) 10.5mm
10.5mm(P8 head)
Component size 03015*4~□5mm 03015*4~□5mm
(P16Sノ head)
0603~□25mm
0603~□25mm
(P8 head)
Placement speed
(Optimum)
Chip 75,000 CPH 54,900 CPH 34,800 CPH
IC 6,400 CPH*3 12,800 CPH
Placement
accuracy
Chip ±0.04mm(Cpk≧1)
IC ±0.04mm
Feeder capacity Up to 56*6
Power supply 3 phase AC200V、220V-430V*7
Apparent power 2.3kVA
Operating air pressure 0.5±0.05MPa
Air consumption (standard) 20L/分ANR(during normal operation)
Machine dimensions (W x D x H)*9 998×1,895×1,530mm 998×1,895×1,530mm*8
Mass (approximately) about 1,820kg*10

*1 Contact sales for more details
*2 The BOC, BAD mark, and 2D code can be recognized when the board size X-axis is between 50 mm and 350 mm.
*3 In long board mode.(Two PCBs up to 420mm can be produced simultaneously)
*4 Contact sales for details
*5 Using P8 head
*6 Using RF04AS or RF08AS feeders
*7 Optional transformer required for 220V – 430V
*8 P8 head requires 123mm additional space on the front for the feeder bank
*9 Display and signal light not included
*10 Using P16S x P16S head configuration, dual lane with trolleys
