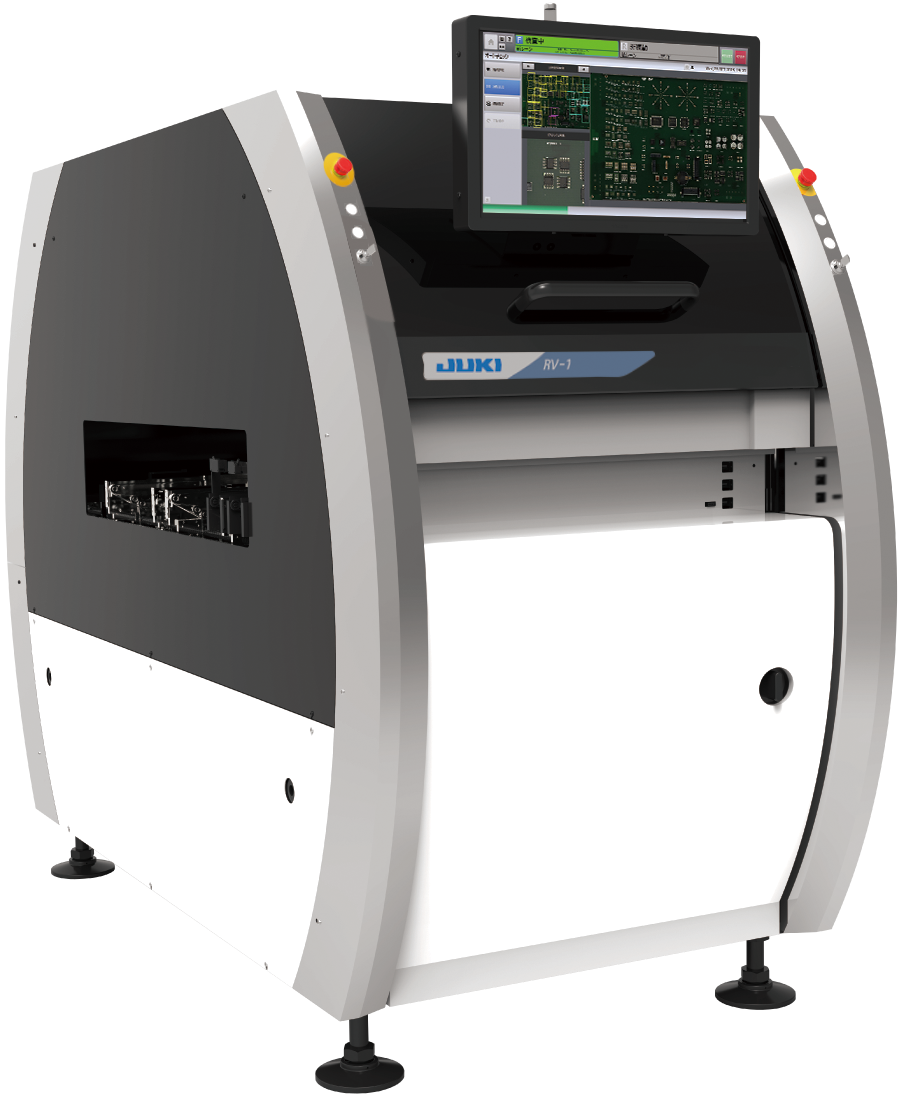

PWB Visual Inspection Machine RV-1(AOI/SPI)

Equipped with “Clear Vision Capturing System”

Catalog download Contact

Features

  • Clear Vision Capturing System
    Worlds top-class high performance
    Inspection speed = 0.14 sec/ frame
  • Easy programming
  • CCC ( Central Confirmation Control) *
  • SPC ( Statistical Process Control) *
  • Supports 3D inspection *

*option

specification

Model name RV–1
PWB size 50mm×50mm – 510mmx300mm (Dual lane)
50mm×50mm – 510mm×590mm (Single lane)
Components 0402/0603 ( metric ), Cylindrical chip, tantalum capacitor, transistor, SOP/QFP, etc.
Inspection speed 15μm ( Standard resloution ),10μm ( High resolution)
Resolution Omission, offset, polarity, reversed, no-solder,bridge, amount of solder, foreign material,etc.
Power supply AC 3-ph 200-230V 2.0kVA / 0.49MPa 10Nl/min
Dimensions W940mm×D1,975mm×H1,530mm
Wight 1,350kg

* Above figures are subject to vary on the conditions. Please contact our sales reps for details.
