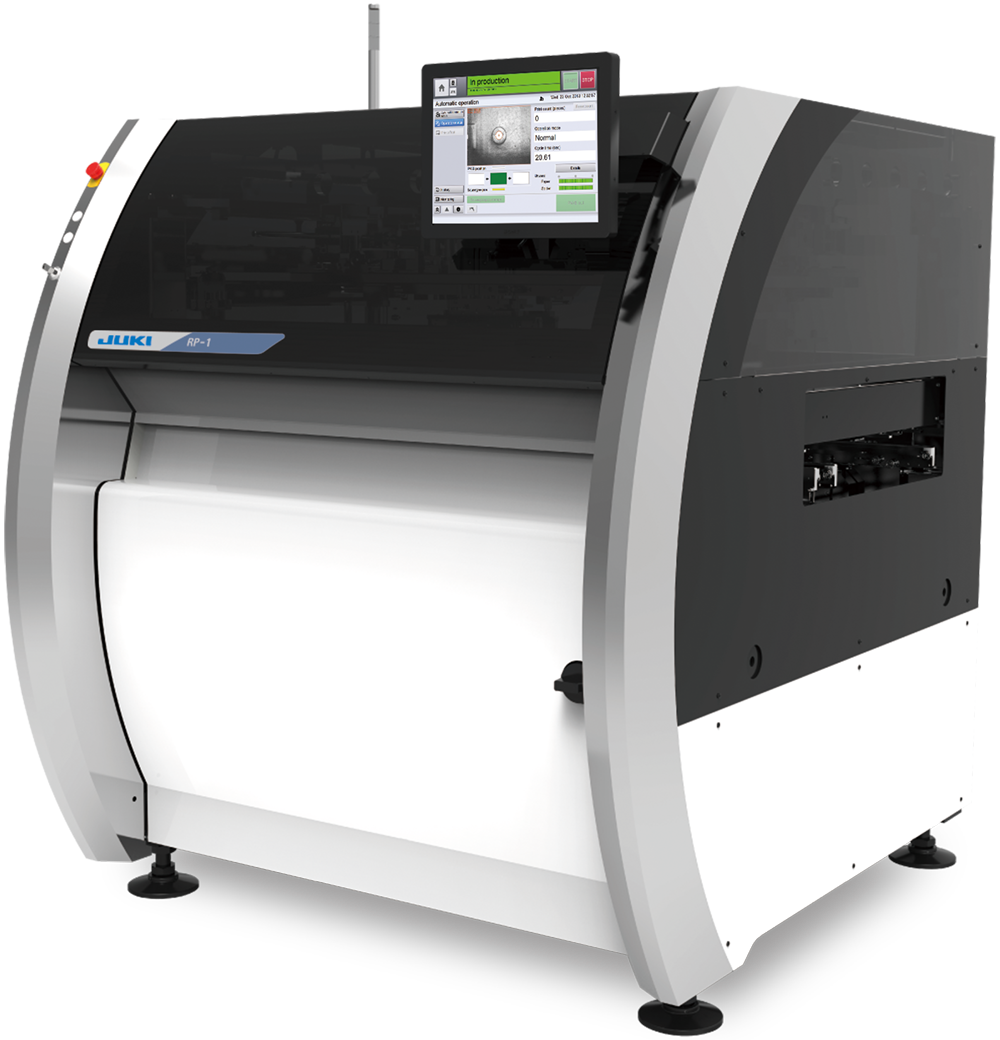

Solder Paste Printer RP-1

High speed and high precision printer equipped with “Motion Screen”

Catalog download Contact

Features

  • Motion Screen
    Positioning accuracy = ±10μm(6σ)
    Cycle time=6sec+printing time
  • Automatic Solder Dispenser*
  • High-speed Cleaning*
  • Easy operation

*option

specification

Solder Paste Printer
Model name RP-1
PWB size 50mm×50mm – 610mm×510mm
Cycle time 6 sec+ Printing time
Positioning accuracy ±10μm(6σ)
Frame size 550mm×650mm / 650mm×550mm
736mm×736mm / 750mm×750mm
Power supply AC200-230V 2.0kVA/0.49MPa 430Nl/min
Dimensions W1,310mm×D1,470mm×H1,530mm
Weight 1,000kg

*Above figures are are subject to vary on the conditions. Please contact our sales reps for details.
