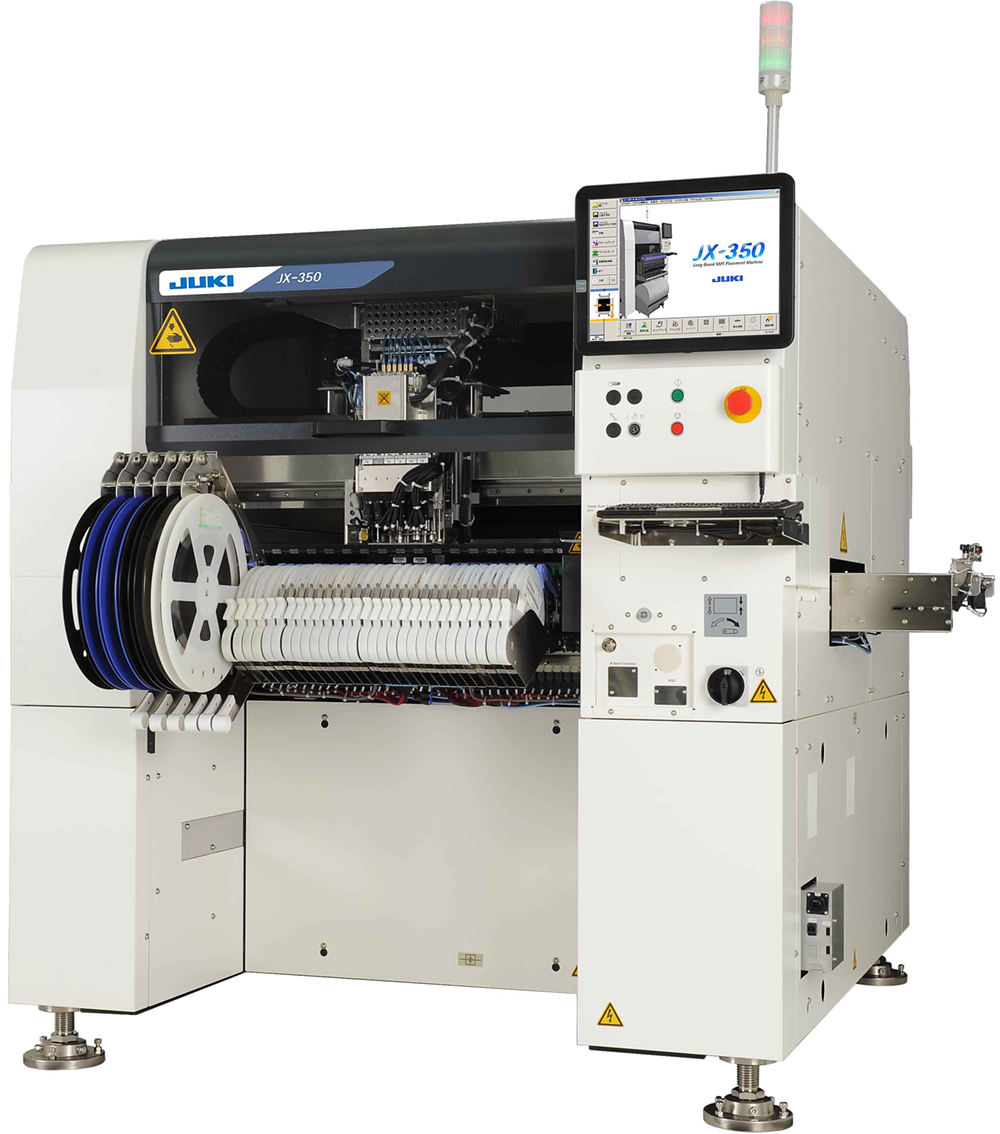

Long Board SMT Placement Machine JX-350

Expanded versatility for LED production and more!
JX-350 is now available with faster placement speed and improved placing ability

Catalog download Contact

Features

Chip 32,000CPH chip (Laser centering / Optimum)
21,000CPH chip (Laser centering / IPC9850)
  • From 0603 to □33.5mmsquare components
  • JUKI laser centering for high speed, high accuracy placement
  • Improved placement quality
  • Alternate pick by screw-type nozzles* achieves high-speed placement for large component up to 25 mm diameter.
  • High-precision placement of diffusion lenses
  • Capable of up to 1,500 mm long board production, top class board size in industry.*
  • Various supply methods *

*option

specification

Board size 1time clamping 650mm×360mm
2times clamping 1,200mm×360mm
3times clamping * 1,500mm×360mm
Component height 6mm / 12mm
Component size 0603(0201) ~ □33.5mm
Placement speed (chip) Optimum 32,000CPH
IPC9850 21,000CPH
Placement accuracy ±0.05mm(Cpk≧1)
Feeder inputs Front-side fixed mechanical
feeder bank(Standard)
Max.40 in case of 8mm tape
Front+rear-side fixed mechanical
feeder bank *1
Max.80
Front+rear-side fixed electrical
feeder bank *1
Max.160 *2


*1 This function is supported with an option.
*2 When using 8mm tape(on a Electric double tape feeder)
