AMS-251

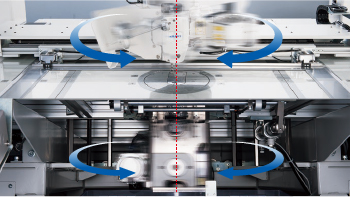

Machine-head-turning mechanism

JUKI's unique synchronization technology controls the machine head, hook and feed mechanism, thereby creating the most favorable seams.
In case of continuous circumference sewing, the sewing machine constantly detects the direction of sewing. As a result, consistent-quality seams are produced regardless of the direction of sewing.

Image recognition device

Thanks to JUKI's original image recognition technology, this sewing machine enables sewing of hard-to-sew perforated materials as desired and produces beautifully-finished seams.
It expands the design possibilities of decorative stitching for car seats, etc.
（Option）

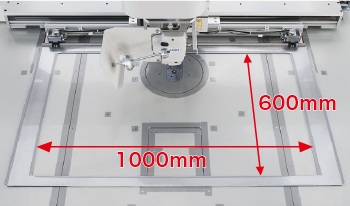

Sewing area : 1000 x 600

The sewing machine is ideally suited to the sewing of decorative stitches on car seats, luxury bags and school bags, but also to the sewing of large-sized products with zero design tolerance for irregular stitches.
In addition, the sewing machine can be used for sewing two or more pieces of small products at a time.

Slip ring system

Slip ring system has been adopted to the new machine-head turning mechanism.
As a result, limitless turning of the machine head is enabled to allow the sewing machine to sew complicated patterns continuously.

*Slip ring system…Rotating connector that is able to transmit power and electric signals from the stationary body to the rotating body

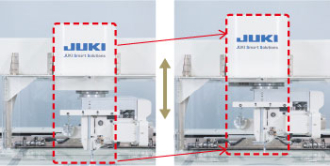

Machine head lifting function

Since thick materials, clamps, palettes with protrusions can be used, design will be expanded.

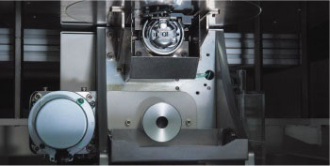

Horizontal-axis, 3 fold-capacity rotary hook

Adoption of the 3 fold-capacity hook helps reduce the frequency of bobbin replacement even when thick thread is used, thereby supporting sewing of large products.

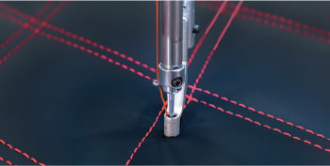

Machine head turning cutting point needle

The cutting point needle can be used regardless of the sewing direction since the sewing machine constantly faces the sewing direction at its front.

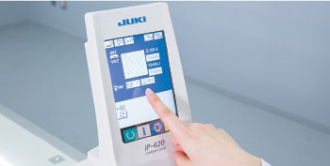

Operation

The IP420 for the existing AMS Series models has been adopted for the new AMS model.
In addition, the existing sewing pattern input software "PM1" is also applicable.

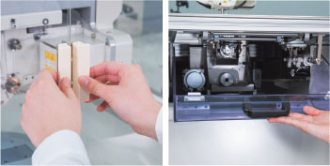

Bobbin replacement cover

Bobbin can be changed easily by opening the accessible cover without requiring the operator to reach under the machine to change the bobbin.

Safety devices

Safety cover
Prevention of start at opening and automatic shutdown during operation allow safe operation.

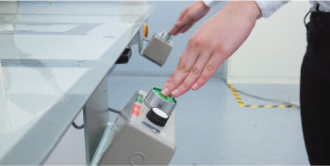

Start button
A two-hand push start button is adopted to prevent hand entrapment and unintentional startup due to one-handed operation.
