Turret presser bar for DDL series

Ideal for multi-product, small-lot production!
No need for replacement by the operator using a driver.

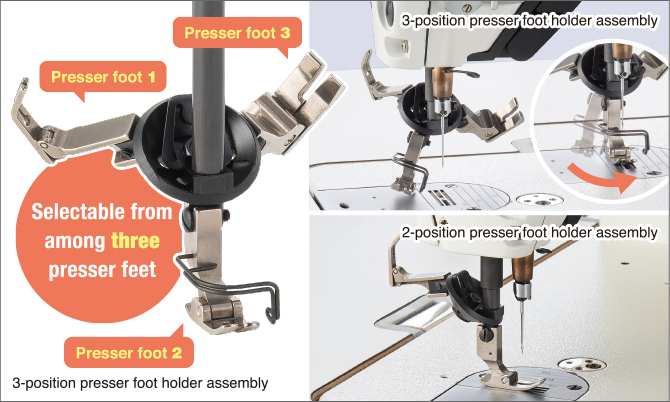

What is the turret presser bar?

A presser bar that allows you to use 3 or 2 types of presser feet without replacement. Rotate it and use the required presser foot.

Turret presser bar for DDL series

Applicable models : DDL-9000CF, DDL-9000CS, DDL-8000A, DDL-8700-7, DDL-900C

Features of Turret presser bar

When sewing multiple processes with only one unit, there is no need to replace the presser foot.
You can simply sew by rotating it and selecting the required presser foot.

No tools such as a screwdriver are required to replace or adjust the presser foot.
The operator can prepare the desired presser foot easily and safely.

By attaching it to DDL-9000CF (premium digital), you can instantly switch to the sewing pattern (needle thread tension, presser foot pressure, feed dog height, feed locus, etc.) that matches the type and process of the presser foot to be used. Furthermore, the sewing adjustment time can be reduced.

Since the 2-position presser foot holder has a sufficient space between the presser foot, an edge guide can be used.

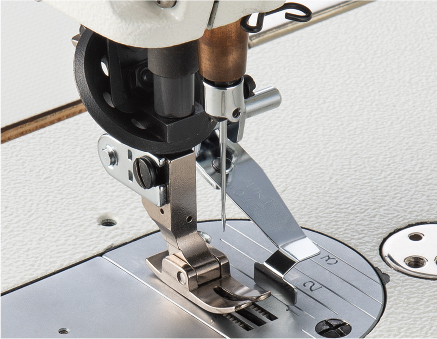

(Usage example of an edge guide)

Usage example of an edge guide

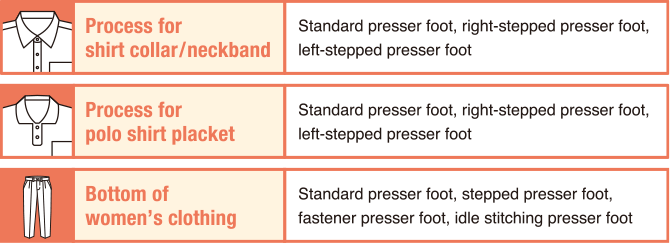

Recommended process examples

Recommended process examples

Compatibility List

Part No. of the
turret presser foot
assembly for lockstitch
Model
DDL-9000CF DDL-9000CS, other DDL
3-position presser foot holder assembly 40257811 MAS07300AA0
2-position presser foot holder assembly 40257810 MAS173000A0

* No presser foot is included in the holder.

* It is necessary to adjust the height of the presser foot bar.

Cap of the presser bar (for premium digital)

Handle with care when removing it.

Part No.: 40172389

Product Photo

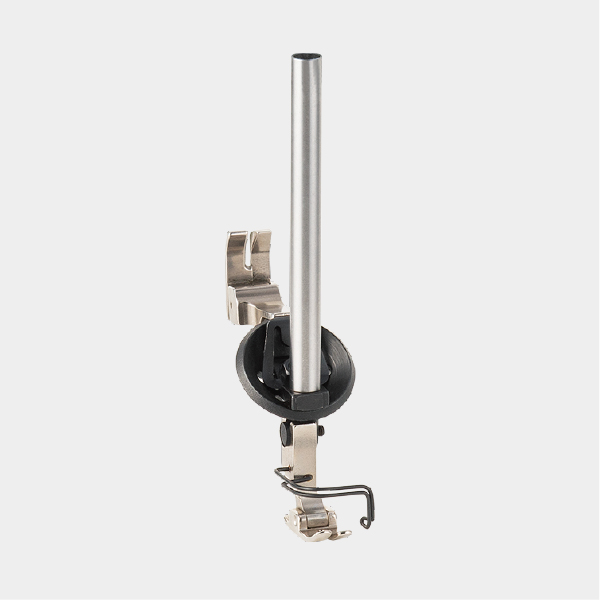

40257811

40257811

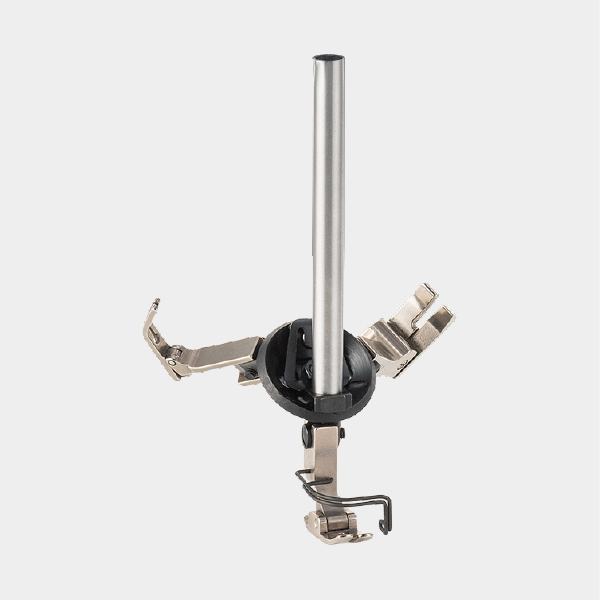

40257810

40257810

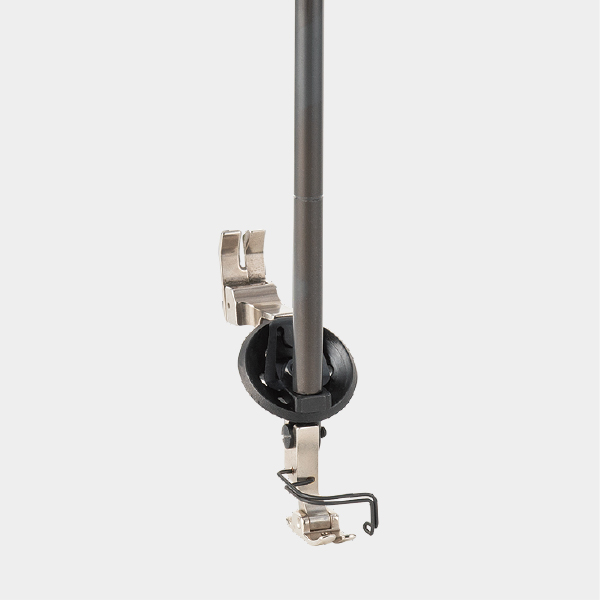

MAS07300AA0

MAS07300AA0

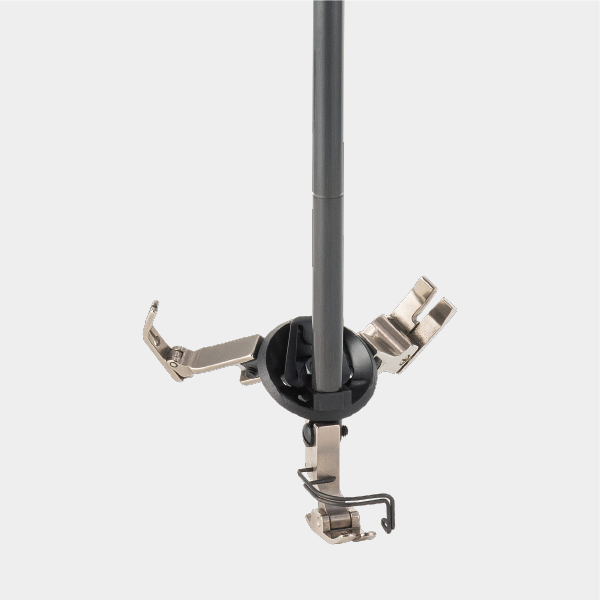

MAS173000A0

MAS173000A0
