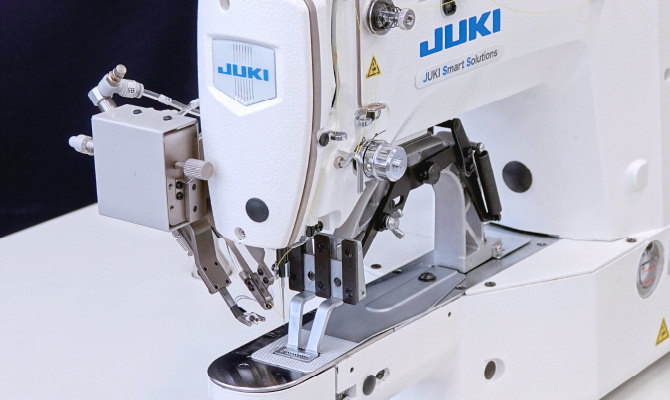

Bird's nest prevention device for LK-1900 (Computer-controlled bartacking sewing system)

This is a retrofittable optional kit to prevent the "bird's nest" at the start of sewing.

This device prevents the "bird's nest" that occurs on a bartacking sewing machine at the start of sewing. It automatically clamps the needle thread at the start of sewing and cuts excess thread with the built-in heat cutter to achieve the optimum needle thread amount. Beautiful stitches are realized by the quality improvement at the start of sewing and the effect of bird's nest prevention.

This is a retrofittable optional kit to prevent the "bird's nest" at the start of sewing.

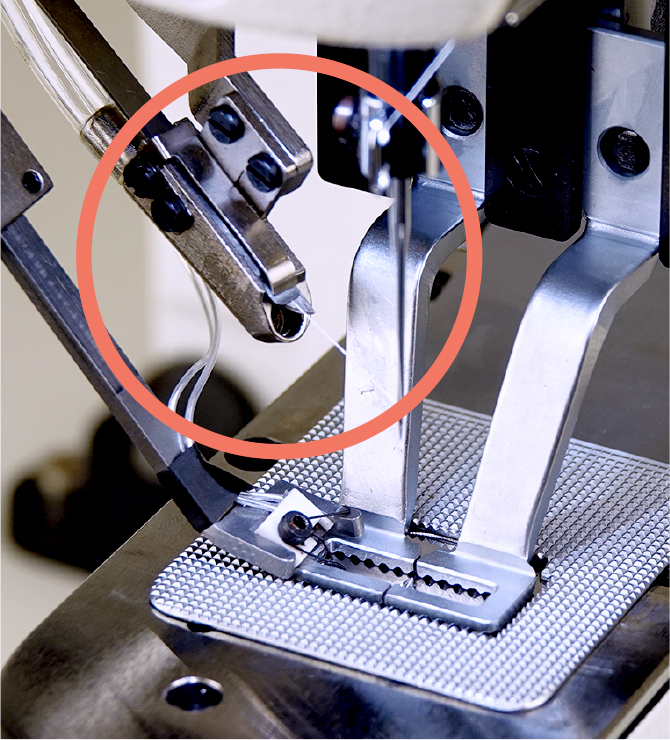

Needle thread clamping mechanism

It holds the needle thread after thread trimming and prevents the needle thread from getting caught on the back side of the fabric.

Needle thread clamping mechanism Needle thread clamping mechanism

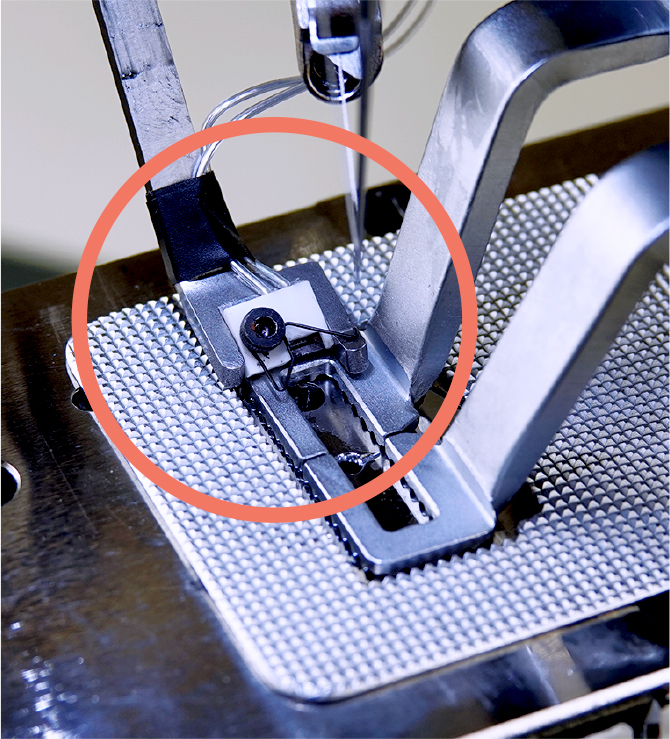

Needle thread trimming mechanism

Newly adopted heat cutter can cut from thin thread to thick thread.

Needle thread trimming mechanism Needle thread trimming mechanism

Device part number by Model

Applicable models Part Number
LK1900B/BN JSH-LK19PFU/J

* Operating voltage:Single-phase 200 to 240V

Remaining short thread throat plate kit

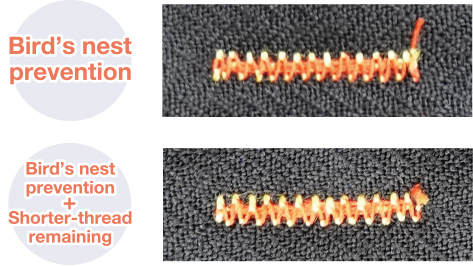

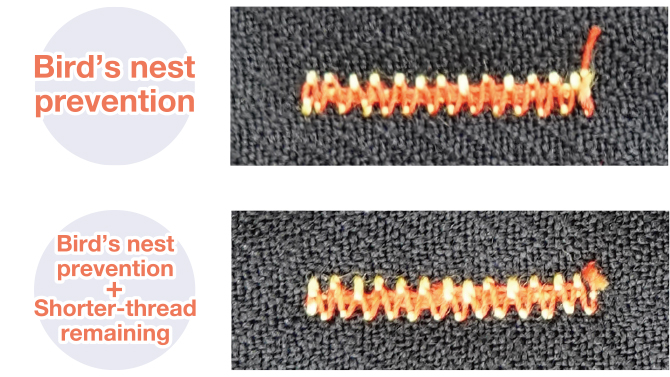

Using the remaining short thread throat plate kit together will make the stitches on the back of the fabric more beautiful.
Part Number: 40193911/40194944

Remaining short thread throat plate kit Remaining short thread throat plate kit

List of available patterns

Excerpt from LK standard patterns

Applicable models No. Stitch diagram Number of stitches Sewing size(mm)
Length wise Cross wise
Large size bartacking 1 (51) 42 2.0 16
2 2.0 10
3* 2.5 16
4* 3.0 24
5 28 2.0 10
6* 2.5 16
7 36 2.0 10
8* 2.5 16
9* 56 3.0 24
10* 64 3.0 24
Small size bartacking 11 21 2.5 6
12 28 2.5 6
13 36 2.5 6
Large size bartacking 37 90 3 24
Large size bartacking 38 28 2 8

Use the patterns with * marks for sewing denim.
