Creation and correction of stitching patterns

Software that enhances J Series usability.
Create and edit stitching patterns on a personal computer screen.

Product features

  • Create and edit stitching patterns on a personal computer screen
    → Test the stitching immediately

    ● Control stitching quality. The feed motion, presser foot motion, and digital tension can be set in the stitching data.
    ● Data can be read, edited, and written to a PLK Series sewing machine.(Supported models: PLK-J, G, E, B Series)
    ● Synchronization mode

  • DXF Converter (Included in CD-R of PTN-JX)

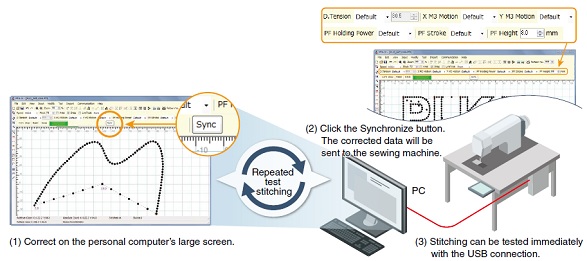

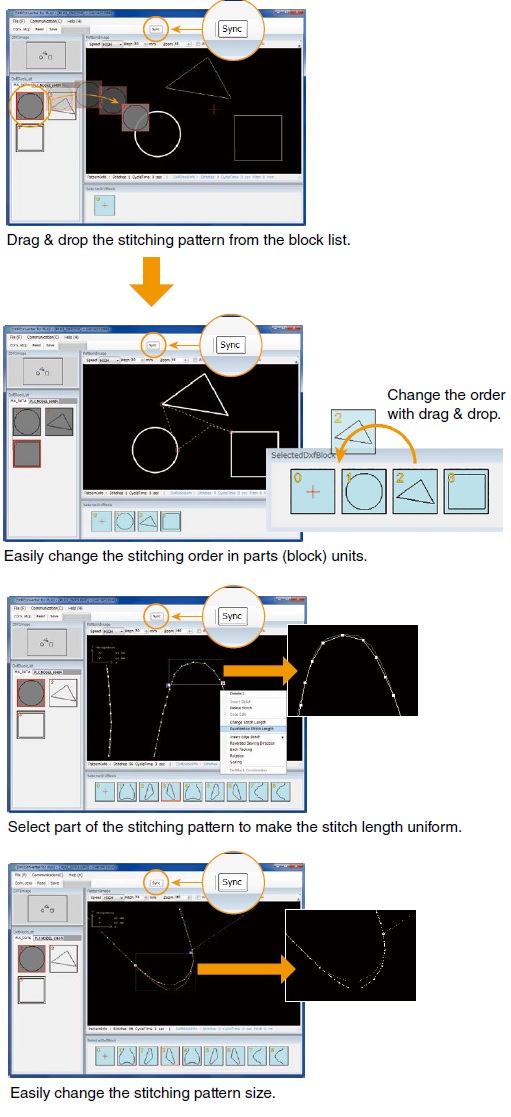

    Convert CAD data into stitching data → Make quick corrections with intuitive operations

Specification

Model PTN-JX
CPU 1.5GHz or higher 32bit (x86) or 64bit (x64) processor
OS Windows®8/8.1(32bit/64bit)、
Windows®10(32bit/64bit)
RAM 32bit: 1GB or more, 64bit: 2GB or more
HDD Windows® 8/8.1,
Windows® 10 : 32bit (16GB or more open space),
Windows® 8/8.1,
Windows® 10 : 64bit (20GB or more open space)
Monitor resolution Capable of displaying 1024x768 or higher
Monitor color setting Full color (32bit) or higher
Peripheral devices CD-ROM drive (used for installation),
USB memory (medium for electronic sewing machine and pattern data),
USB port x 2 (for USB memory or USB communication, for protection key),
RS-232C port (when exchanging stitching data between PTN-GX and sewing machine)

* The CPU, memory, and hard disk specifications may vary depending on the amount of data being processed.
* A relatively high PC performance is required for the best use.
Windows is a trademark or registered trademark of Microsoft Corporation in the United States and other countries.


Main specifications

Protector type USB
Input type Linear, arc, circle, curve, polygonal line, point, multiple/offset, zigzag,
tacking (same input functions as PLK-J Series electronic sewing machines)
Modification type Delete, insert, change, move, convert,
code (in addition to PLK-J Series electronic sewing machine modification function,
data can be deleted, inserted and moved in block units)
Display scale 20 to 5000%
Grid line pitch 0.1 to 100mm, or hidden
Input method Personal computer mouse, coordinate value input (absolute coordinate, relative coordinate)
Supported data types Data compatible with PLK electronic sewing machines (J, G data)*1
DXF data*2 (R12, R13, R14), embroidery data (only specified versions are supported

*1. G data is read only.
*2. Some restrictions apply to the data conversion function. Please refer to the instruction manual before use.
