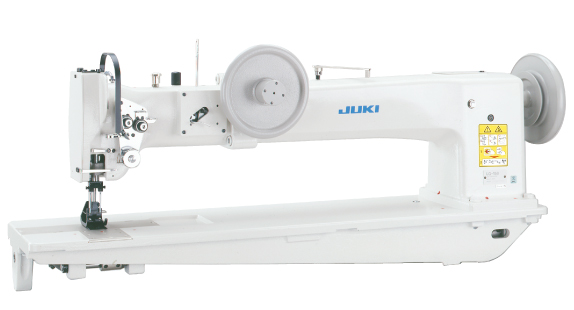

Unison-feed, Long Arm Lockstitch Machine with Vertical-axis Large Hook

With a generous 750 mm of free space under the arm and powerful unison-feed that provides a maximum stitch length of 10 mm, the machine delivers outstanding productivity when sewing heavy materials such as tents and sheets.

Product features

  • The machine head structure is designed to improve operability

    • With its 750 mm wide space under the arm and a handwheel mounted at the middle of arm, the machine is ideal for the sewing of heavy materials such as tents and sheets. A large material can be sewn while spread over the bed.
    • The bobbin winder is installed at the front face of the arm for easy operation.
    • The presser foot goes up as high as 21.5 mm to ensure easy placement/removal of extra heavy-weight materials.

  • Safety device protects the needle and hook from damage

    If the thread gets caught in the hook, the safety device is automatically actuated, preventing possible hook damage. Pressing the reset button will immediately return the machine to the normal state.

Basic performance

  • Consistent seam quality

    With its unison feed mechanism that ensures a smooth and steady feed of materials, the machine provides consistent seam quality with no material slippage. Eleven different kinds of needle gauges are prepared for the LG-158. The most suitable gauge for the current machine use can easily be selected.

  • The frequency of bobbin thread replacement is reduced

    Since the machine incorporates a vertical-axis large hook, the frequency of bobbin thread replacement is reduced, further increasing efficiency.

Specification

Model name LG-158 LG-158-1
(2-needle) (1-needle)
Max. sewing speed 1,500sti/min*
Max. stitch length 10mm (normal/reverse feed)
Needle bar stroke 46.9mm
Needle gauge Standard 19.1mm (3/4") -
Lift of the presser foot By pedal: 21.5mm
Thread take-up Side type
Alternating vertical movement 6mm~19mm
Hook Vertical-axis large hook
Needle (at the time of delivery) DD×1 (#25)
Thread #20~#5, B69~B138, Nm=40/3~20/3
Safety mechanism Provided as standard
Bobbin winder Built on the machine arm
Lubrication By an oiler
Lubricating oil JUKI New Oil No.1 (equivalent to ISO VG7)
Distance from needle to machine arm 750mm
Bed size 1,088mm×230mm
Weight of the machine head 108kg

*“sti/min” stands for “Stitches per Minute.”

When you place orders

Gauge

LG-158-1
LG-158

Guage GUAGE SET NEEDLE BAR ASM. WALKING FOOT ASM. PRESSER FOOT THROAT PLATE FEED DOG SLIDE PLATE_LEFT SLIDE PLATE_RIGHT FACE PLATE
Figure -
inch P/N P/N P/N P/N P/N P/N P/N P/N P/N
3/4 B1109158NF0 B1401057NAB B1470158NB0 B1525057N00 B1109057N00 B1613057N00 B1112057N00 B1113057N00 -
1/4 B1109158FF0 B1401057FAB B1470158FB0 B1525057F00 B1109057F00 B1613057F00 B1112057F00 B1113057F00 -
5/16 B1109158HF0 B1401057HAB B1470158HB0 B1525057H00 B1109057H00 B1613057H00 B1112057H00 B1113057H00 -
3/8 B1109158KF0 B1401057K00 B1470158KB0 B1525057K00 B1109057K00 B1613057K00 B1112057K00 B1113057K00 -
1/2 B1109158LF0 B1401057LAB B1470158LB0 B1525057L00 B1109057L00 B1613057L00 B1112057L00 B1113057L00 -
5/8 - B1401057MAB B1470158MB0 B1525057M00 B1109057M00 B1613057M00 B1112057M00 B1113057M00 -
1 B1109158QF0 B1401057QAB B1470158QB0 B1525057Q00 B1109057Q00 B1613057Q00 B1112057Q00 B1113057Q00 -
1-1/4 B1109158SF0 B1401057SAB B1470158SB0 B1525057S00 B1109057S00 B1613057S00 B1112057S00 B1113057S00 -
1-1/2 B1109158UF0 B1401057UAB B1470158UB0 B1525057U00 B1109057U00 B1613057U00 B1112057U00 B1113057U00 -
2 B11091582F0 B14010572AB B14701582B0 B1525057200 B1109057200 B1613057200 B1112057200 B1113057200 B310115800A
2-1/2 B11091583F0 B14010573AB B14701583B0 B1525057300 B1109057300 B1613057300 B1112057300 B1113057300 B310115800A
2-1/４ B11091534F0 B14011584AB B14701584B0 B1525158400 B1109158400 B1613158400 B1112158400 B1113158400 B310115800A
