Home > Products > For Non-apparel > Flat-bed Sewing Machine > LU-1560N-7 LU-1560N LU-1561N-7 LU-1561N

2-needle, Unison-feed, Lockstitch Machine with Vertical-axis Large Hooks
LU-1560N-7 Gauge (inch)
LU-1560N Gauge (inch)
LU-1561N-7 Gauge (metric)
LU-1561N Gauge (metric)

The two-needle machine with a thread trimmer offers basic performance that is ideally suited to sewing heavy materials. The machine utilizes a new mechanism that does not change the ratio of the alternate vertical movement of the walking foot and presser foot, even when the material thickness changes. The mechanism helps prevent slippage between the upper and lower materials even when a heavy material is used.

sample

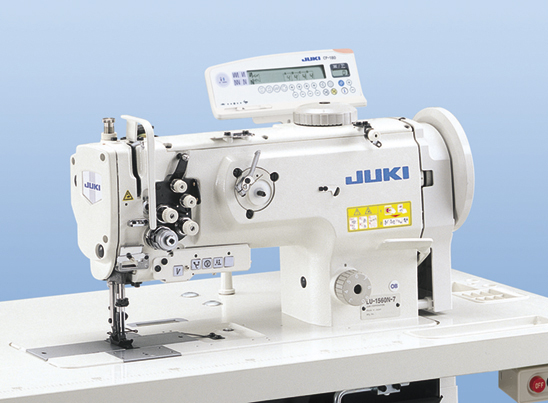

LU-1560N-7
sample
Click to Enlarge the image

ここにビデオが表示されます
Model name LU-1560N-7, 1561N-7 LU-1560N, 1561N
Max. sewing speed 2,500sti/min
Max. stitch length 9mm
Presser foot Auto: 16mm By knee: 16mm
Alternating vertical movement 1~6.5mm 2.5~6.5mm
Needle 135×17 (Nm160) Nm125~Nm180
Thread #30~#5, B46~B138, Nm=60/3~20/3
