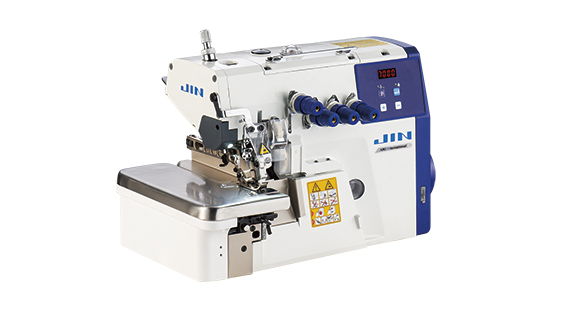

Direct-drive, High-speed, Overlock / Safety Stitch Machine

The maximum sewing speed of the M-1 series is 7,000sti/min.
The direct drive system has been adopted.
Both the control box and the operation panel are integrated with the machine head.

Product overview

Product features

  • 3-point sensor auto thread trimmer

    The M-1-SF type sewing machine is equipped with a 3-point sensor auto thread trimmer. This prevents the operator from accidentally cutting the cloth.
    ●M-1-AE type is a 2-point sensor auto thread trimmer

  • LED hand light

    The illuminance of the LED hand light can be adjusted in 2 steps for the SF type / AE type. (NS type is on / off). It can be adjusted to the illuminance to help the operator to easily carry out work around the needle, thereby helping increase work efficiency.



  • Chain-off thread trimmer Solenoid type
    Auto lifter Solenoid type

    ●M-1-AE is a pneumatic type auto lifter and a side cutter.

  • Operation panel and control box are integrated with the machine head

    ●Voice guidance for assisting the operator
       This sewing machine is provided as standard with the voice guidance.

    ●Multi function USB connector
       Since the USB port is provided as standard for the control box, software can be upgraded with ease.

Specification

Model name M-1-304NS
M-1-304SF
M1-304NL		 M-1-424NS
M-1-424SF
M-1-424AE
M-1-424NL		 M-1-534NS
M-1-534SF
M-1-534NL		 M-1-556NS
M-1-556SF
M-1-556NL		 M-1-634NS
M-1-634SF
M-1-634NL		 M-1-654NS
M-1-654SF
M1-654NL
Stitch type 1-needle
overlock		 2-needle
overlock		 Safety
stitching
Max. sewing speed 7,000sti/min*
Stitch length 3.8mm
Needle gauge (mm) - 2.0 3.0 5.0 3.0+2.0 5.0+2.0
Overedging width (mm) 4.0 6.0 4.0
Needle bar stroke 23.0mm
Needle DC×27 #11 DC×27 #14 DC×27 #18 DC×27 #14
Max. lift of the presser foot 5.0 mm
Lubrication Automatiac
Lubricating oil JUKI Machine Oil 18 (equivalent to ISO VG18)
Cartridge oil filter Provided as standard
Power requirement Single-phase 220V / Single-phase 110V
Power consumption 601VA

＊sti/min is the abbreviation for “stitches per minute”
＊M1-SF type is equipped with Sensor control / Tape cutter / Auto-lifter.

When you place orders

Subclass machine list

Options/Consumables

  • Description Part No. Remarks
    SIDE CUTTER ASM JINBF889KS-308046-91 ※MO68　T054：No.70000082(Available)
    ※PEGASUS　No.KS308046-91Y(Available)
    Blower type Suction device JINBFX5DXFZZ
    Pneumatic type Suction device JINBF889UT-DCFZJ-1
