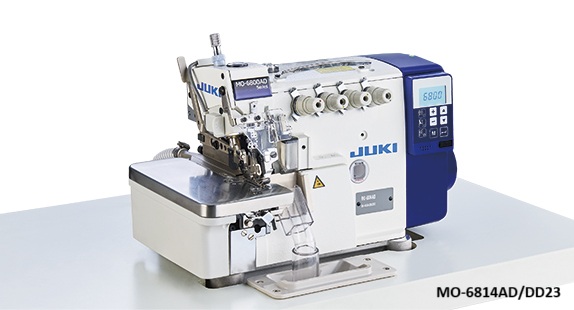

Direct-drive, High-speed, Overlock / Safety Stitch Machine

The direct drive system has been adopted.
Both the control box and the operation panel are integrated with the machine head.
Max. sewing speed 7,000sti/min.
Lubrication Method: “AD” is Semi-dry (needle bar/upper looper no lubrication).

Product features

  • Automatic thread trimmer with a material sensor

    The MO-6800AS(D)/DD Series of sewing machine is provided as standard with the side cutter with 2 material sensors (DD22) and the Tape cutter with 3 material sensors (DD23). Under the full-automatic mode, the material sensor detects the presence / absence of the material to prevent the operator from erroneously operate the side cutter etc. In addition to the full-automatic mode, the manual mode and the semi-automatic mode can be selected.



  • Operation panel and control box are integrated with the machine head

    The energy-saving and highly efficient servomotor is installed in the direct-drive style. The sewing machine quick lystarts up and stops with increased accuracy, thereby demonstrating improved responsiveness.

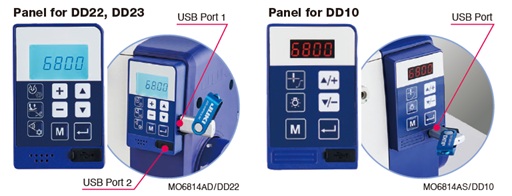

    USB port
    The USB port is standard on the control panel and You can easily upgrade the software. The MO-6800AS (D)/DD22, 23 has another one USB port for charging a mobile phone, etc.



  • Operator fatigue reduction (LED light) Standard equipment with all series

    For the LED light, the improved toning function with two additional colors (Cool White / Warm white) is provided. Illuminance of the LED light is adjustable in five levels. This LED light helps reduce the operator’s eye fatigue who is engaged in sewing work for a long time.

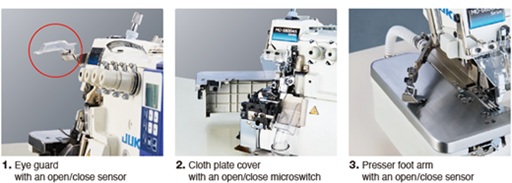

  • The cover sensor unit and cover microswitch unit

    The cover sensor unit and cover microswitch unit that detect 1, 2 and 3 (shown right) are closed tightly during sewing, thereby preventing the sewing machine from starting up unexpectedly.

Specification

Model name MO-6800AS/DD10, 22, 23 MO-6800AD/DD10, 22, 23
MO-6804AS MO-6814AS MO-6816AS MO-6843AS MO-6804AD MO-6814AD MO-6816AD MO-6843AD
Stitch type 1-needle
overlock		 2-needle
overlock		 Safety
stitching		 3-needle
safety stitching		 1-needle
overlock		 2-needle
overlock		 Safety
stitching		 3-needle
safety stitching
Stitch style in the U.S.A. 504 514 516 - 504 514 516 -
Dry type - - - - Semi-dry Semi-dry Semi-dry Semi-dry
Max. sewing speed 7,000sti/min*(excluding some subclass model)
Stitch length 0.6~3.8 (4.5)mm
Needle gauge (mm) - 2.0 3.0, 5.0 3.0+2.0, 5.0+2.0 - 2.0 3.0, 5.0 5.0+2.0
Overedging width (mm) 1.5, 4.0 3.0, 4.0 4.0, 5.0, 6.0 3.0 4.0 2.0, 3.0, 4.0 4.0, 5.0 3.0
Bottom differential feed ratio Gathering 1:2 (Max. 1:4), Stretching 1:0.7 (Max. 1:0.6)
Needle bar stroke 24.5mm (60H: 27mm)
Inclination angle of the needle 20°
Needle mechanism Lower bushing method
Needle DC×27 (refer to subclass machine list) / DC×1 (available only on some models)
Max. lift of the presser foot 7mm (excluding some subclass model)
Max. presser foot pressure 63.7N (6.5kgf)
Stitch adjusting method By push-button
Differential-feed adjusting method By lever (with micro-adjustment)
Weight of the machine head 27kg
Lubrication Automatic (The needle bar mechanism and upper looper mechanism do not require lubrication.)
Lubricating oil JUKI Machine Oil 18 (equivalent to ISO VG18)
Needle cooler Provided as standard
Needle thread heat remover Provided as standard
Micro-lifter Option

*sti/min is the abbreviation for “stitches per minute”

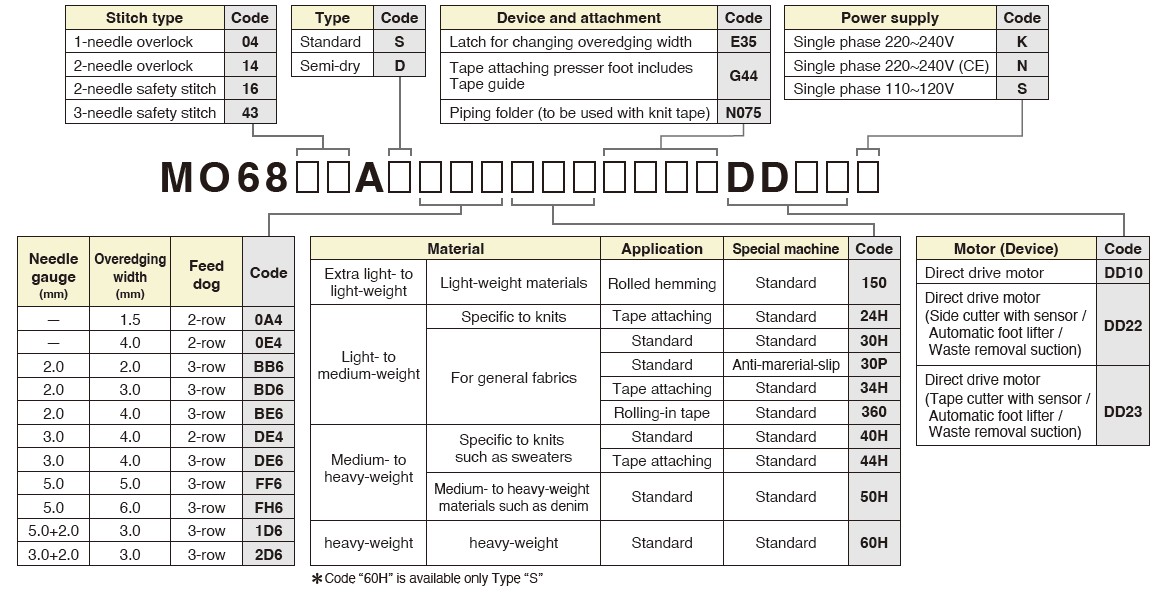

When you place orders
