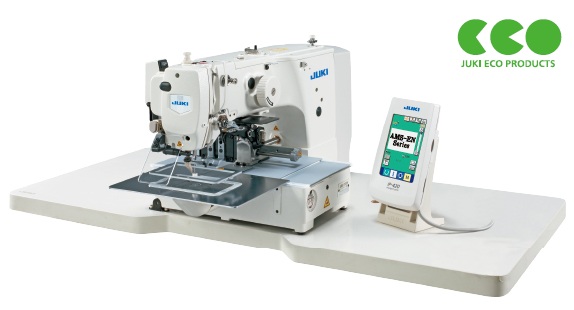

• Industry's highest sewing speed

  This model has achieved the industry's highest sewing speed of 2,000 sti/min. Productivity is substantially increased.

• No exclusive embroidery frame is required

  Since the machine does not need an exclusive embroidery frame, it is easy to place the product to be embroidered on the sewing machine, thereby increasing work efficiency.

• The machine produces beautifully finished seams with a lower tension applied to the thread

  The thread tension controller with its rotary tension mechanism, which is specific to embroidering, is adopted for the machine to promise beautifully finished name (alphabetic/Japanese/Chinese characters) embroideries with a lower thread tension. (Embroidery thread can be used.)

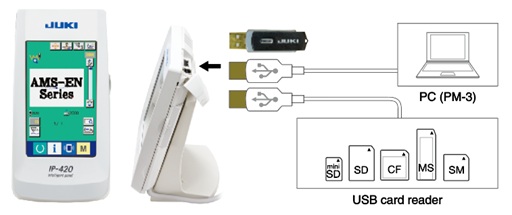

• The machine is provided with an operation panel with an input function which supports USB

  The machine has adopted the IP-420 with a large LCD panel and input functions as its operation panel. The operation panel supports USB, and various USB flash drives are also applicable. In addition, the finished shape of the name embroidery is displayed on the LCD panel screen. Consequently, the operator can operate the sewing machine while visually checking the finished name embroidery shape. The sewing machine can be directly connected to a personal computer on which PM-3 (name embroidery data creation software) has been installed by way of a USB cable (separately available).
  ※PM-3 is required to input the characters of a name.



• The sewing machine is capable of continuously carrying out embroidering of several different names

  Data on several different name embroideries can be input. The sewing machine stops every time it completes the embroidering of one name. As a result, the sewing machine is able to embroider several different names continuously.

  Embroidery Sample


• PM-3 （Name embroidery data creation software）

  This software is developed exclusively for creating embroidery data. With the software, the operator is able to enter/edit new/existing data as if he/she were operating word processer software. The font data can be converted to the embroidery data.

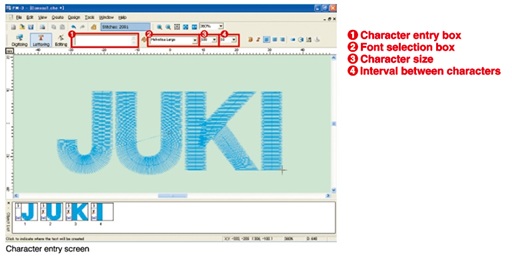

  Character data can be created with ease

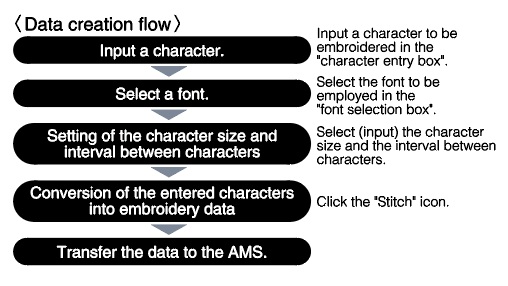

  Embroidery data can be easily created simply by inputting the character to be embroidered, selecting the font and clicking the relevant icon.




  Many different editing functions

  Not only enlargement/reduction in size, rotation, move and copy of the characters, but also changes in sewing pitch and stitching order and the insertion of thread trimming can be carried out with ease. It is also possible to read images through the scanner to create data on embroidery (single-pattern embroidery).

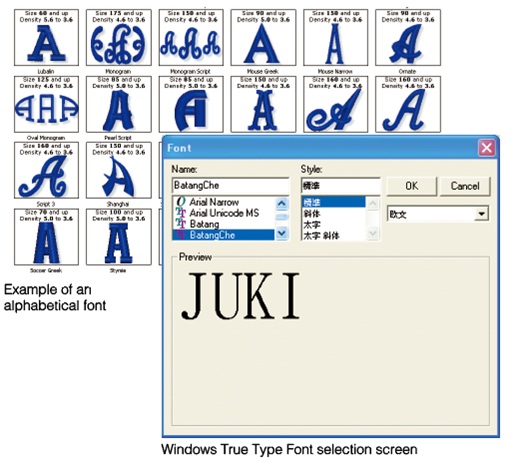

  Many different character fonts

  The sewing machine has 80 or more different built-in alphabetical fonts. True Type Fonts prepared by Windows are also applicable.



  Three different languages, i.e., English, Chinese and Japanese are supported

  The sewing machine supports three different languages; English, Chinese and Japanese.

  〈PM-3 System Requirements〉
  ・Supported OS: Windows 11
  ・CPU: 64-bit compatible processor with a clock speed of 1 GHz or higher and at least 2 cores (e.g., 8th generation Intel or later)
  ・Memory: 4 GB or more
  ・Storage: 20 GB or more of free disk space
  ・Display: 9 inches or larger, high resolution of 720p or higher
