HZL-12Z

HZL-12Z

5 Stitch patterns. Simple operations!

タブコンテンツ1(オレンジ線下から)

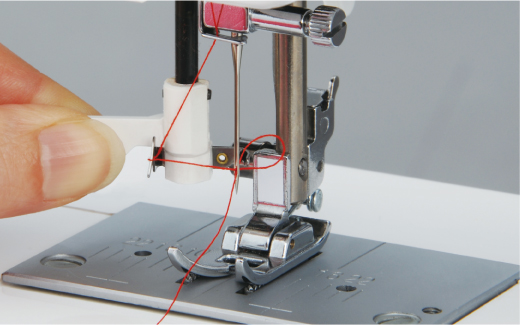

Automatic Needle Threader

The Automatic Needle Threader easily threads the needle without eyestrain and allows you to start sewing quickly.

Automatic Needle Threader

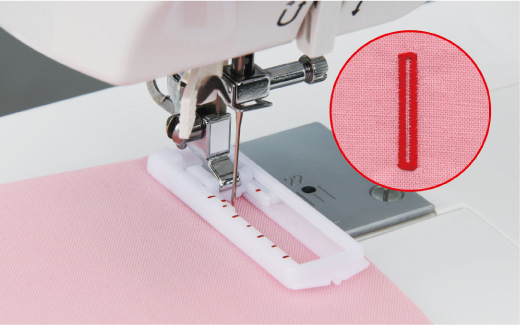

Buttonhole Sewing

Buttonholes can be sewn beautifully and securely in 4 easy steps utilizing the easy to operate Stitch Selector.

Buttonhole

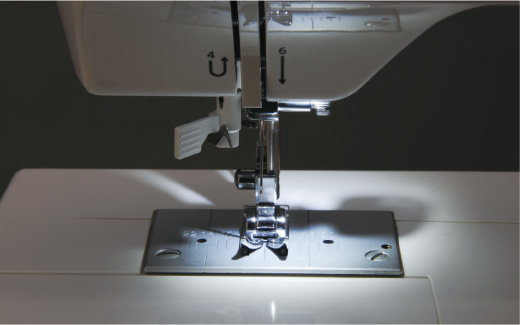

White LED Light

Brightens the needle entry area. LED light will not heat up even during long operations. Also since LED light has a long life and low power consumption compare with halogen light, it is more economical.

White LED Light

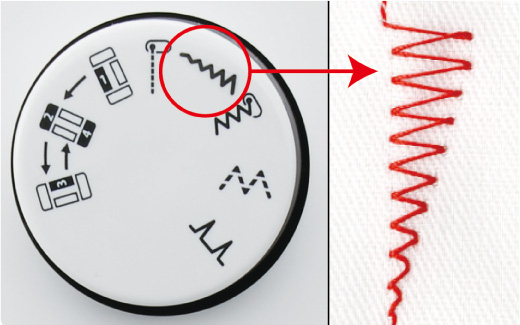

Zigzag Width Adjusting

Zigzag width can be adjusted by simply turning the Stitch Selector. With the Stitch Length Adjusting Dial, you can make your desired zigzag stitch.

Zigzag Width Adjusting

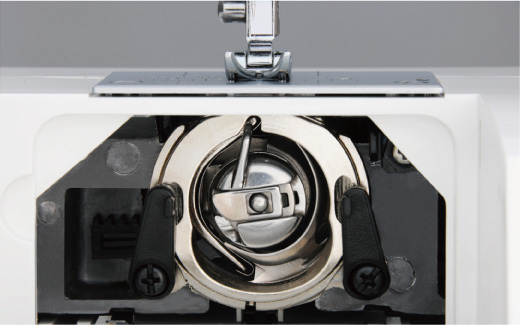

Half-rotary Vertical Hook

The Vertical Hook is durable and easy to maintain.

Half-rotary Vertical Hook

Free Arm

The extension table slides off for free arm sewing. Standard accessory parts can be neatly stored in the box.

Free arm

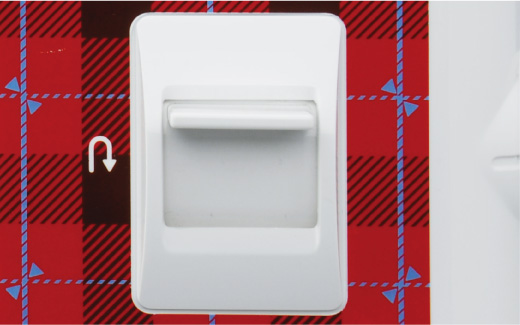

Large and Easy-to-Use Reverse Stitch Lever

The Reverse Stitch Lever is conveniently large for easy and simple operation.

Large and Easy-to-Use Reverse Stitch Lever

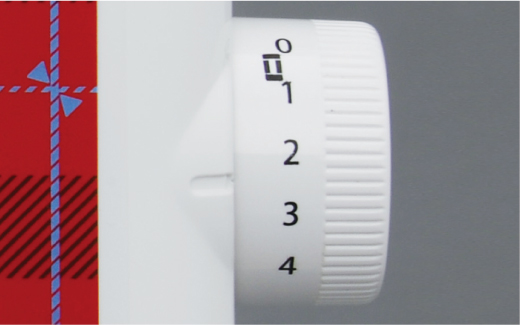

Stitch Length Adjusting Dial

Stitch length can be selected easily and finely according to thickness and type of fabric.

Stitch Length Adjusting Dial

Other Features

・Compact & Light Weight

タブコンテンツ1(オレンジ線上まで)
タブコンテンツ2(オレンジ線下から)

SPEC / ACCESSORIES

Control system(Arm size)Electric (Arm Size 117㎜)
Dimensions350(W) x 275(H) x 160(D)mm
Weight4.4kgs
Maximum sewing speed570 sti/min
Number of stitch patterns5
Buttonhole4-step Buttonhole Buttonhole Length: - 3.0cm
Direct stitch pattern selection-
Start/stop button-
Adjustable starting / reverse stitch speed-
Auto thread trimming-
Thread cutter-
Automatic needle threader
Thread tension systemStandard
Needle up/down button-
Low-speed inching sewing-
Needle stop position-
Needle stop position switching-
Lock stitchReverse stitch (Lever system)
Feed mechanism4 point feed dog
JUKI Smart Feed (dual feed function)-
Presser foot pressure adjustment-
Auto presser foot lift system-
Micro-lifter-
Function to straight-line stitching-
Presser foot pivot function-
Presser foot lift (1 step/2 steps)Lever system: 5.5mm / 11mm
Horizontal presser foot holder button-
Drop feed-
Quick bobbin preparation-
Easy bobbin winding (Bobbin winder with independent motor)-
Bobbin thread detection-
Stitch lengthDial system Max. 4mm
Stitch widthDial system Max. 4mm
Number of needle position (straight stitch/other than straight stitch)1 / -
Pattern reverse-
Twin needle sewing-
Lock mode-
Elongation-
Save/call of patterns-
Light1 LED light
Type of hookHalf-rotary vertical hook
Free arm
Cord reel-
Knee lifting lever-
Foot controller
Wide table-
Accessory storageAuxiliary bed
Sewing machine cover-
Operation supportDVD
Supported languages-
Accessories (presser feet)Standard presser foot Buttonhole foot
Other accessories_1Bobbins Needles Spool pin cap Seam ripper/Brush Screwdriver (small) Screwdriver Power cord(Foot controller) Instruction manual Operation support DVD
Other accessories_2

INCLUDED ACCESSORIES

OPTIONAL ACCESSORIES

タブコンテンツ2(オレンジ線上まで)
タブコンテンツ3(オレンジ線下から)

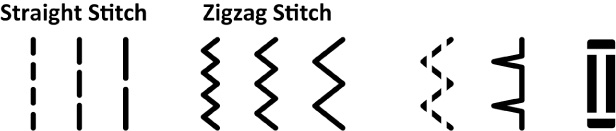

STITCH PATTERNS

STITCH PATTERNS
