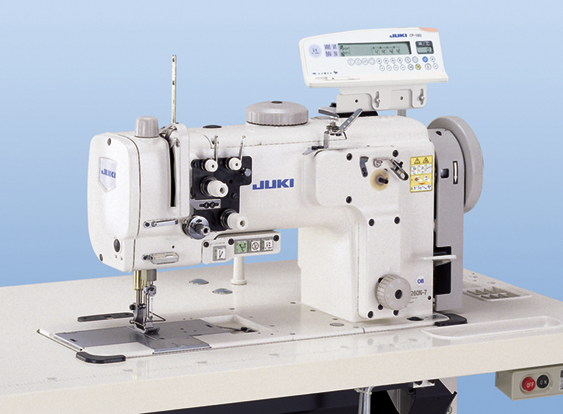

High-speed, 2-needle, Unison-feed, Lockstitch Machine with Vertical-axis Large Hooks
LU-2260N-7 (1.6 fold-capacity hook)
LU-2260W-7 (double-capacity hook)

The vertical strokes of the presser foot and walking foot (their alternating vertical movement) can be easily changed using a large dial mounted on the top surface of the machine head. In addition, the sewing speed is automatically adjusted with the set value. With this feature, ideal sewing conditions are maintained at all times.

sample
LU-2260N-7
sample
Click to Enlarge the image

ここにビデオが表示されます
Model nameLU-2260N-7, 2260W-7
Max. sewing speed3,500sti/min
Max. stitch length6mm
Presser footAuto: 16mm
Alternating vertical
movement
1~6.5mm
Needle134×35R (Nm140), Nm110~Nm160
Thread#20~#5, B69~B138, Nm=40/3~20/3
