High-speed, 1-needle, Unison-feed, Lockstitch Machine with Vertical-axis Large Hook
LU-2210N-7 (1.6 fold-capacity hook)
LU-2210W-7 (double-capacity hook)

Thanks to its remarkable feed efficiency and improved feed cam unit, the machine smoothly feeds materials at high speeds while preventing stitch gathering.
The machine is also equipped with a new box-type feed locus that enables the production of beautifully finished seams free from material flopping.

sample

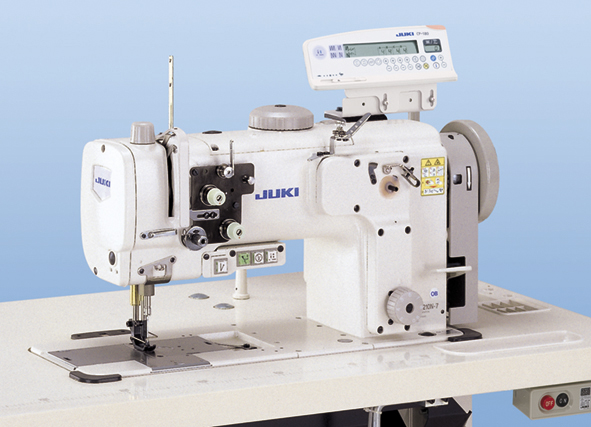

LU-2210N-7
sample
Click to Enlarge the image

ここにビデオが表示されます
Model nameLU-2210N-7, 2210W-7
Max. sewing speed3,500sti/min
Max. stitch length9mm
Presser footAuto: 16mm
Alternating vertical
movement
1~6.5mm
Needle134×35R (Nm140), Nm110~Nm160
Thread#30~#4, B46~B138, Nm=60/3~20/3

Cloth cutting knife

Bottom-feed

Automatic thread trimmer

Organized split
needle bar

Dry-head, Intelligent
Direct-drive Sewing Machine
