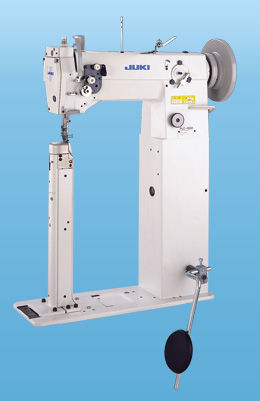

High-post-bed, 1-needle, Unison-feed, Lockstitch Machine
PLC-1690
PLC-1691

The high post-bed machine is best-suited to the 3-dimensional sewing of bags, etc. The newly developed high post-bet machine has a post with a compact-finished top to support difficult sewing processes that conventional machine can't handle such as bottom sewing or gore sewing.

sample
PLC-1690

ここにビデオが表示されます

Model namePLC-1690PLC-1691
Max. sewing speed1,600sti/min
Max. stitch length6mm
Presser footBy knee: 15mmBy knee: 10.5mm
Post heigth420mm425mm
Alternating vertical
movement
2~7mm
Needle134×35R (Nm120) Nm100~Nm140
Thread#50~#8, B33~B92, Nm=120/3~30/3
