High-speed, Cylinder-bed, 1-needle, Lockstitch, Zigzag Stitching Machine
LZ-2284C-7(with standard / 3-step zigzag stitching pattern changeover function)

The cylinder bed zigzag stitch machine is best suited to the circular stitching processes of tubular products such as girdles, shorts and swimwear.

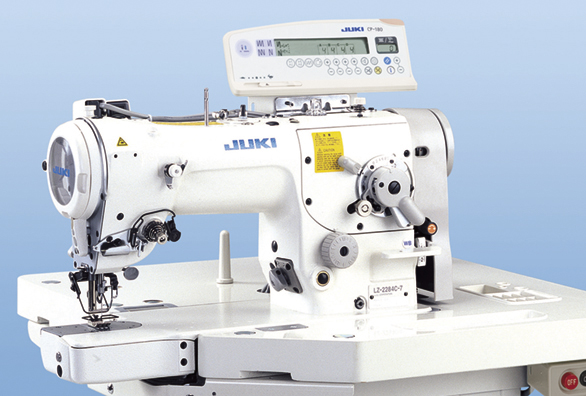

LZ-2284C-7
sample
Click to Enlarge the image

ここにビデオが表示されます
Model nameLZ-2284C-7
Stitch systermStandard / 3-step zigzag
Stitch patternsample
Max. sewing speed5,000sti/min
Standard zigzag: zigzag width of 5mm or less
3-step zigzag: zigzag width set to 8mm or less
Max. zigzag widthStandard zigzag: 8mm, 3-step zigzag: 10mm
Max. stitch lengthStandard zigzag: 2.5mm, 3-step zigzag: 2mm
Peripheral dimension
of the cylinder section
322mm
Needle438 (Nm70), DP×5 (#10)
