MO-2000QVP

Effortless Threading with the Power of Air
Simplified Serging with Informational LCD Screen
Major Features

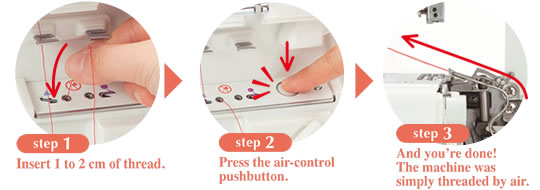

Convenient Threading With the Easy Threader
Using the new easy threader feature, easily thread the machine from the threading hole to the looper with the power of a strong whoosh of air sent from the electric motor. This amazing function dramatically alters upper and lower looper threading.
Automatic Needle Threader
Quickly thread the needle! With the automatic needle threader, the needle is threaded in 3 easy steps.
Informational LCD Screen
Easy set-up instructions including tension settings for 15 different stitches at a glance on the LCD Screen. No more searching through pages of your manual, serging is simplified with the informational LCD screen.
Quiet Operation
The sound reducing design minimizes the operating noise and the unit sews with less vibration.
Adjustable Differential Feed
Even with easily stretched fabrics such as knits and georgette, create beautifully sewn finishes by adjusting the differential feed. Adjustments can even be made while sewing.
Beautiful Sharp Curve
The distance between the needle and knife is 9.95mm (conventional model:15.5mm),allowing you to sew beautiful inside curves.
Upper Looper Converter 2-/3-Thread Conversion
Switch to 2-Thread sewing simply by pushing the 2-/3-thread changeover attachment to the left, making this operation even easier.
Wide Throat Area
The height of the throat is 72.4mm. Due to this height, the usability of the work space improved infinitely.
LED Sewing Light
The needle area is brightly illuminated. The long-life, energy-efficient and eco-friendly light will not heat up, even after a long period of use.
Waste Collector
Provided as a standard accessory, the waste collector catches cut-off fabric and is useful for keeping the area tidy.

Other Useful Features
*Automatic rolled hemming
*Adjustable presser foot pressure
*Option to deactivate upper knife
*Cutting width adjusting dial
*Safety feature preventing operation when the presser foot is upper position or the cover is open.
*Thread trimming blade for easy thread cutting

  UP
Sewing Pattern
4-Thread Overlock
3-Thread Overlock 2-Thread Overcast
3-Thread Rolled Hem 3-Thread Narrow Overlock Frill 3-Thread Rolled Hem
With Diff. Feed
3-Thread Flatlock
  UP
Optional attachments

Blind Stitch Presser Foot

Universal Blind Stitch Presser Foot Elasticator Presser Foot
Cording Presser Foot Beading Presser Foot Curved Beading Presser Foot



Piping Presser Foot Gathering Presser Foot
  UP
Specifications
ITEM
SPECIFICATIONS
Number of Needles 1/2 Needles
Needle SCHMETZ 130/705 H or JLx2
Number of Threads 2/3/4 Threads
Differential Feed 0.7-2.0 Ratio
Sewing Speed Maximum 1,500 spm
Easy Threader X
Light LED
Presser Foot Lift 5mm (Max : 8mm)
Stitch Length 1-4mm (Standard:2.5mm)
Overlocking Width Left Needle 5-9mm
Right Needle 3-7mm
Rolled Hem 2mm
Accessories Needle set 130/705H(SCHMETZ)/ Screwdriver / Tweezers / Brush/needle inserter / Electronic foot control / Nets / Spool caps / Looper threader / Accessory bag / Dust cover / Waste collector / Oiler / Instruction manual / Operation support DVD
Dimensions 330 (W) x 280 (D) x 310 (H) mm
Weight 9.0 kg
  UP
Download
Download the documents of MO-2000QVP

Catalog (2.0MB)

Instruction Manual (15.7MB)

The above documents are PDF format. In order to display and print out the documents, please down load and install Acrobat Reader.
UP
The accesories list page is here.
